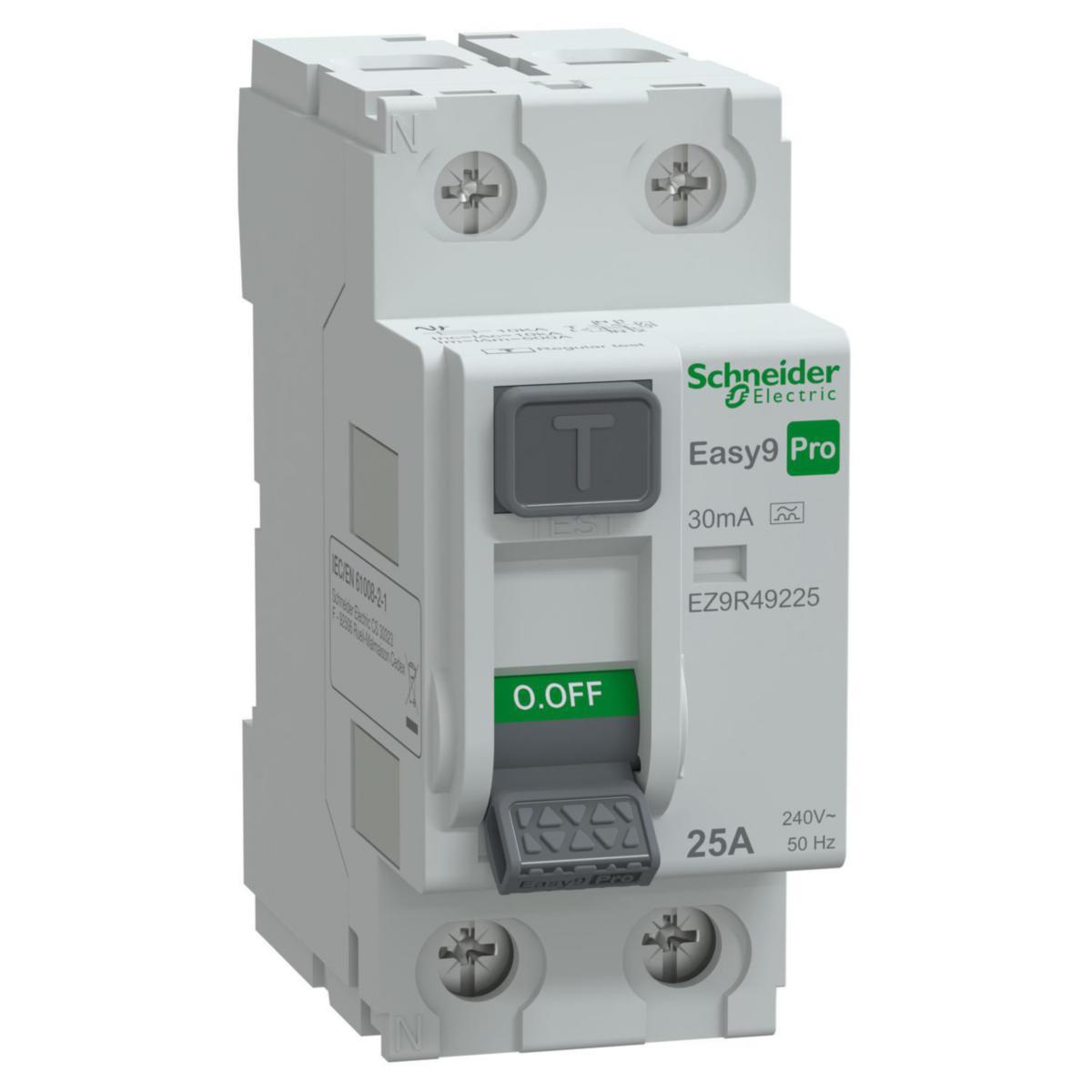

Easy9 2P 25A 30mA A-Type RCCB

The Easy9 series is designed to easily fit different applications and project types. From safety indicators and design features to robust short-circuit protection, it offers reliability for your installations and flexibility to match your needs. With the Easy9 RCD, you get optimal protection against fire risks and personal protection against electric shock in the event of direct or indirect contact. It has a sensitivity of 30mA and is class A. This device is suitable for isolation and makes it safe to work after the RCD and then in combination with a padlock module. It is compatible with standards IEC/EN 61008-1 and IEC/EN 61008-2-1 and it has a rated conditional short-circuit current of 10kA. The Ui rated voltage is 500VAC and the Uimp rated impulse withstand voltage is 4kV. This standard unit can be mounted on a DIN rail and its width in 9 mm pitches is 4, i.e. 2 standard modules. The protection class is IP20 and IP40 mounted in a standard enclosure. The operating temperature is from -5°C to 60°C.
