Schneider Electric

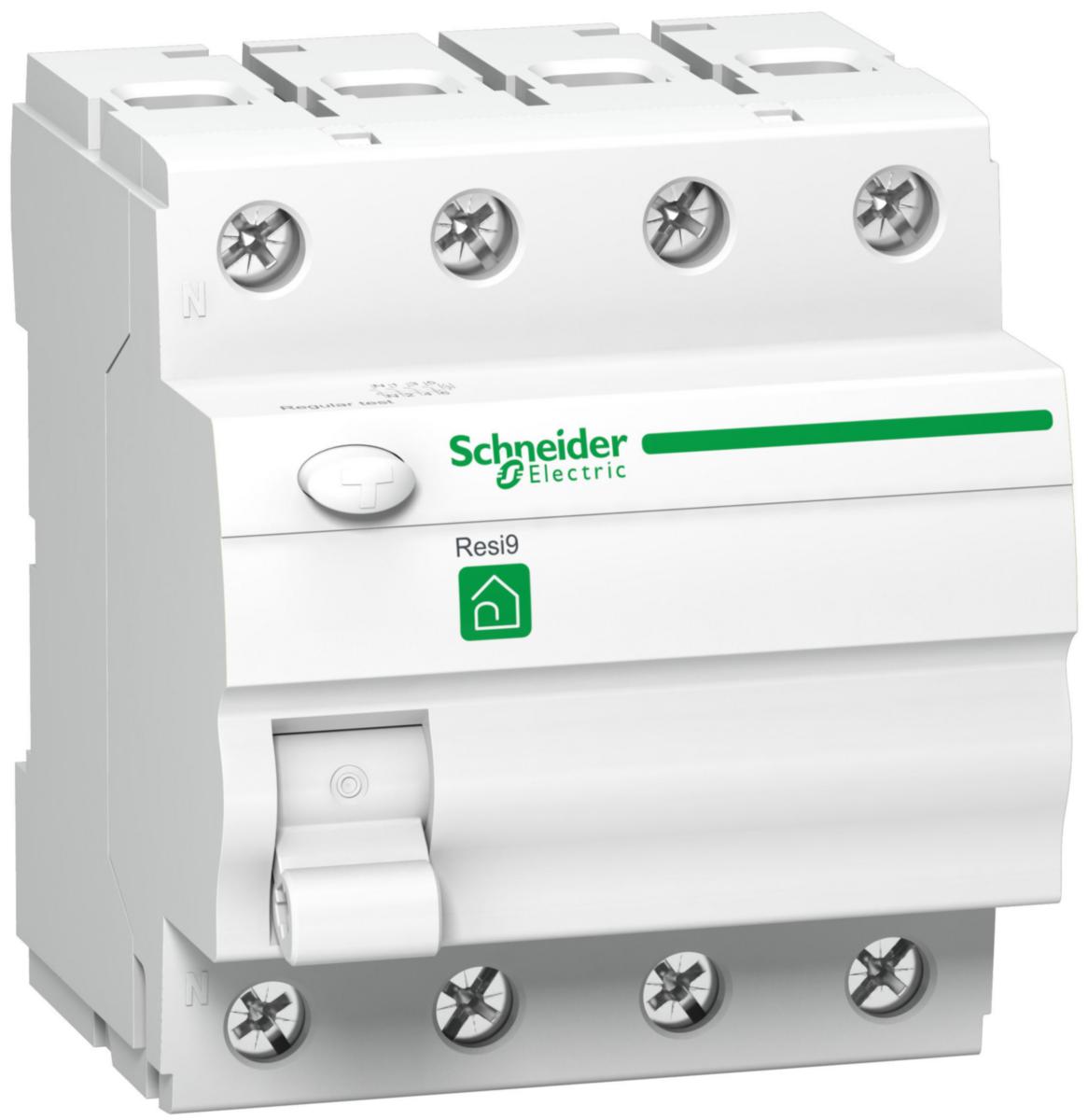

Earth fault circuit breaker Resi9 type A 300mA
RESI9 ID 4P 40A 300MA A RCCB R9R04440
Article number: Suppl. article no:
2165341
R9R04440
to see price and stock
Earth fault circuit breaker in 4 pole design 40A for fire and system protection, 300 mA A class, rated voltage 400V AC
- Article number: 2165341
- Suppl. article no: R9R04440
- Ean no: 3606480482717
- Material class QL5500
Technical data
- Packagin Size: 1 ST/18 ST
- Type: R9R04440
- Leakage current type: A
- Number of poles: 4
- Rated voltage: 400 V
- Voltage type: AC
- Rated current: 40 A
- Rated fault current: 0.3 A
- Built-in depth: 44 mm
- Width in number of modular spacings: 4
- Surge current capacity: 0.25 kA
- Selective protection: No
- Short-circuit breaking capacity (Icw): 6 kA
- Frequency: 50/60 Hz
- Short-time delayed tripping: No
- Degree of protection (IP): IP20
- Additional equipment possible: Yes
- Connectable conductor cross section solid-core: 1-35 mm²
- Connectable conductor cross section multi-wired: 1-25 mm²
- Mounting method: DIN rail
- Pollution degree: 2
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 440 V
- Ambient temperature during operating: -25-40 °C
- With interlocking device: No
- Explosion-proof: No
- Power loss: 3.6 W
- RAL-number (similar): 9003
- Device depth: 82 mm
- Colour: White
- Device width: 75 mm
- Device height: 100 mm
- Product series: Resi9
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 2,5524 kgCO2e/ST
- REACH Information obligation: Yes
