Schneider Electric

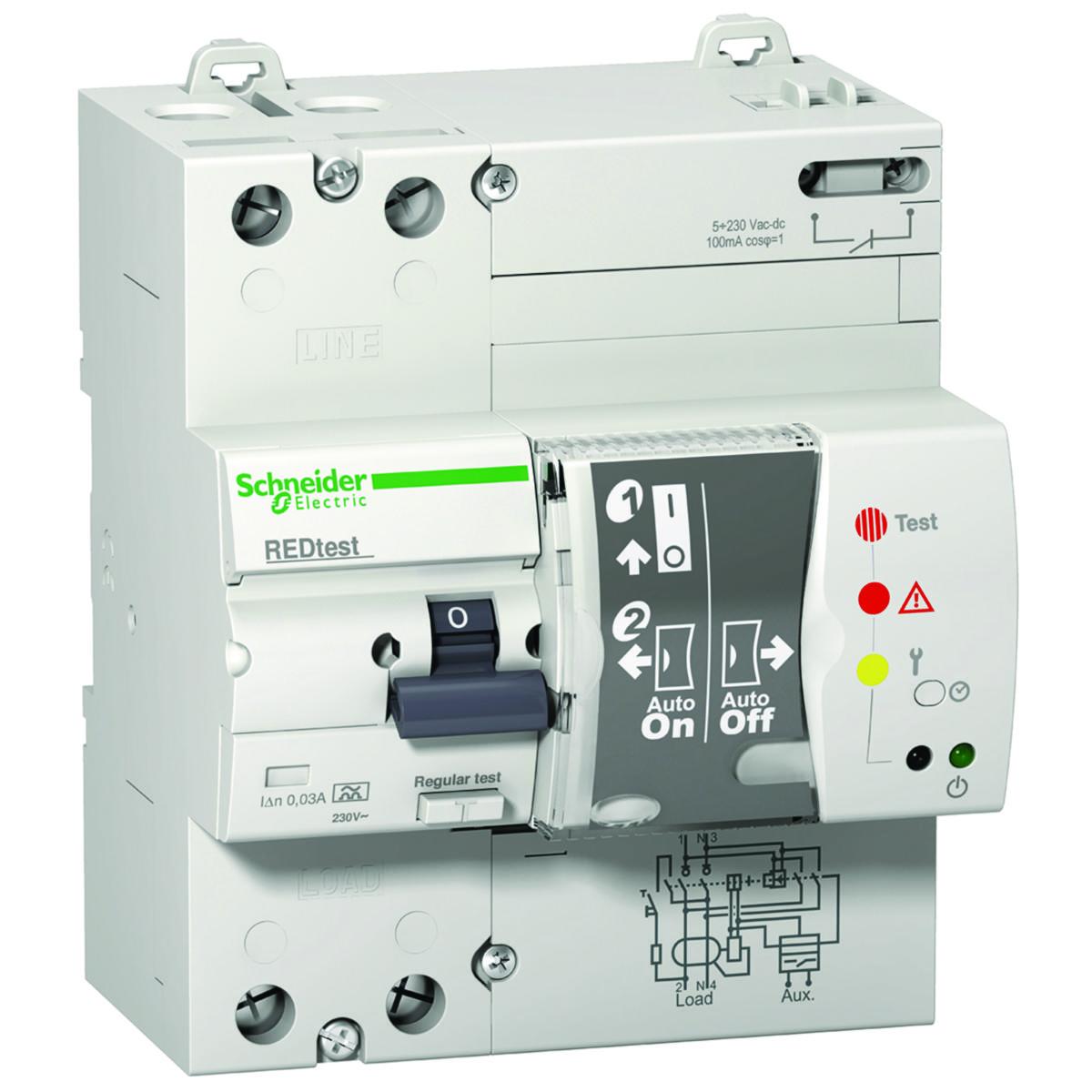

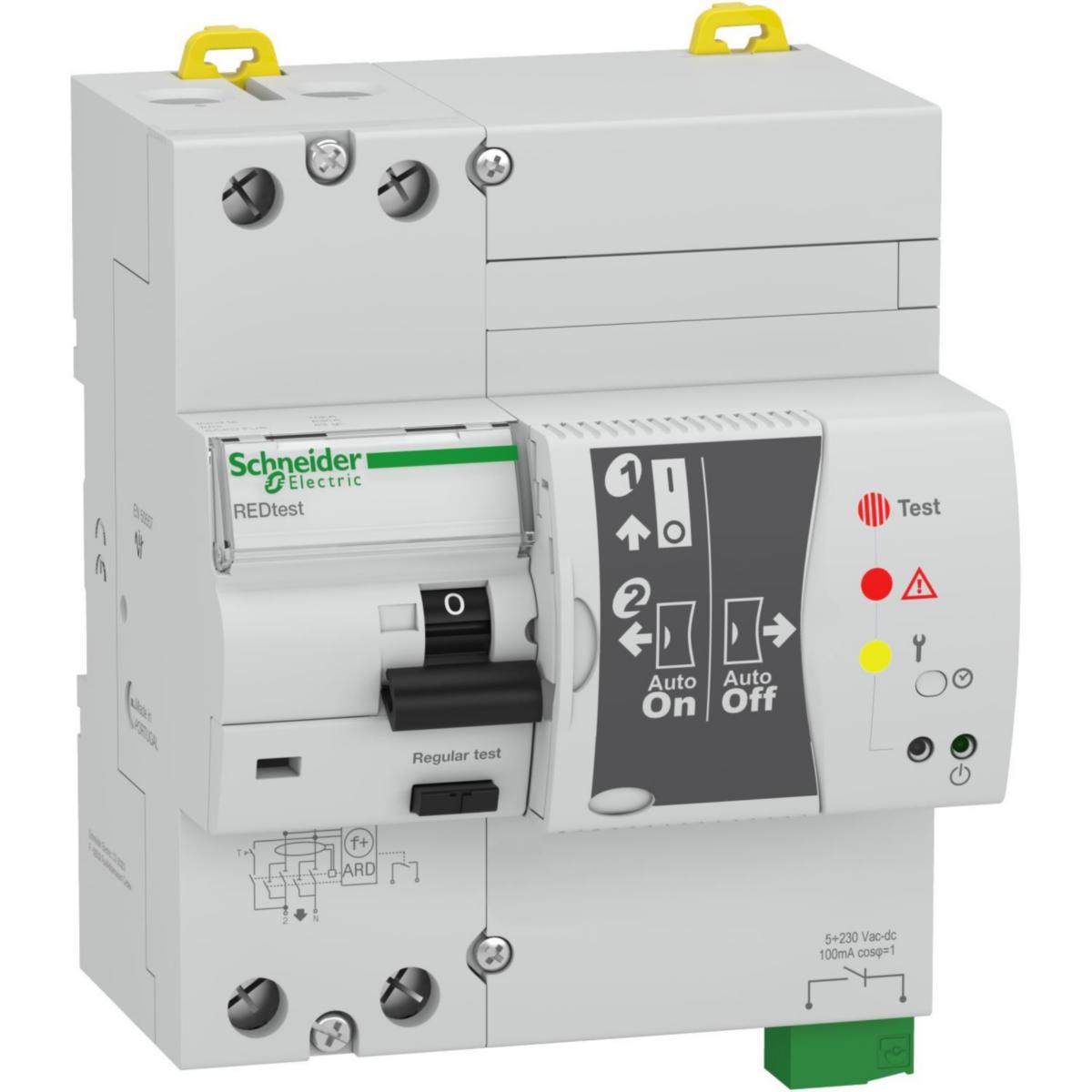

Earth fault breaker REDtest
RCD 25A 30MA 2P RED TEST 2P 25A 30MA A
Article number: Suppl. article no:
2165160
18280
to see price and stock
With automatic test function
- Article number: 2165160
- Suppl. article no: 18280
- Ean no: 3303430182801
- Material class QL540A
Technical data
- Packagin Size: 1 ST/6 ST
- Type: RED TEST 2P 25A 30MA A
- Leakage current type: A
- Number of poles: 2
- Rated voltage: 230 V
- Voltage type: AC
- Rated current: 25 A
- Rated fault current: 0.03 A
- Built-in depth: 44 mm
- Width in number of modular spacings: 5
- Surge current capacity: 0.25 kA
- Selective protection: No
- Short-circuit breaking capacity (Icw): 6 kA
- Frequency: 50 Hz
- Short-time delayed tripping: No
- Degree of protection (IP): IP20
- Additional equipment possible: Yes
- Connectable conductor cross section solid-core: 1.5-2.5 mm²
- Connectable conductor cross section multi-wired: 1.5-2.5 mm²
- Mounting method: DIN rail
- Pollution degree: 2
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 500 V
- Ambient temperature during operating: -5-40 °C
- With interlocking device: Yes
- Explosion-proof: No
- RAL-number (similar): 9003
- Colour: White
- Product series: Acti 9
- Rated switching capacity: 0.63 kA
- Construction size according to DIN 43880: 5
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- Additional equipment attached at delivery: Monitoring unit with automatic reclosing
- REACH Information obligation: Yes
- Additional equipment integrated: Other
