ABB

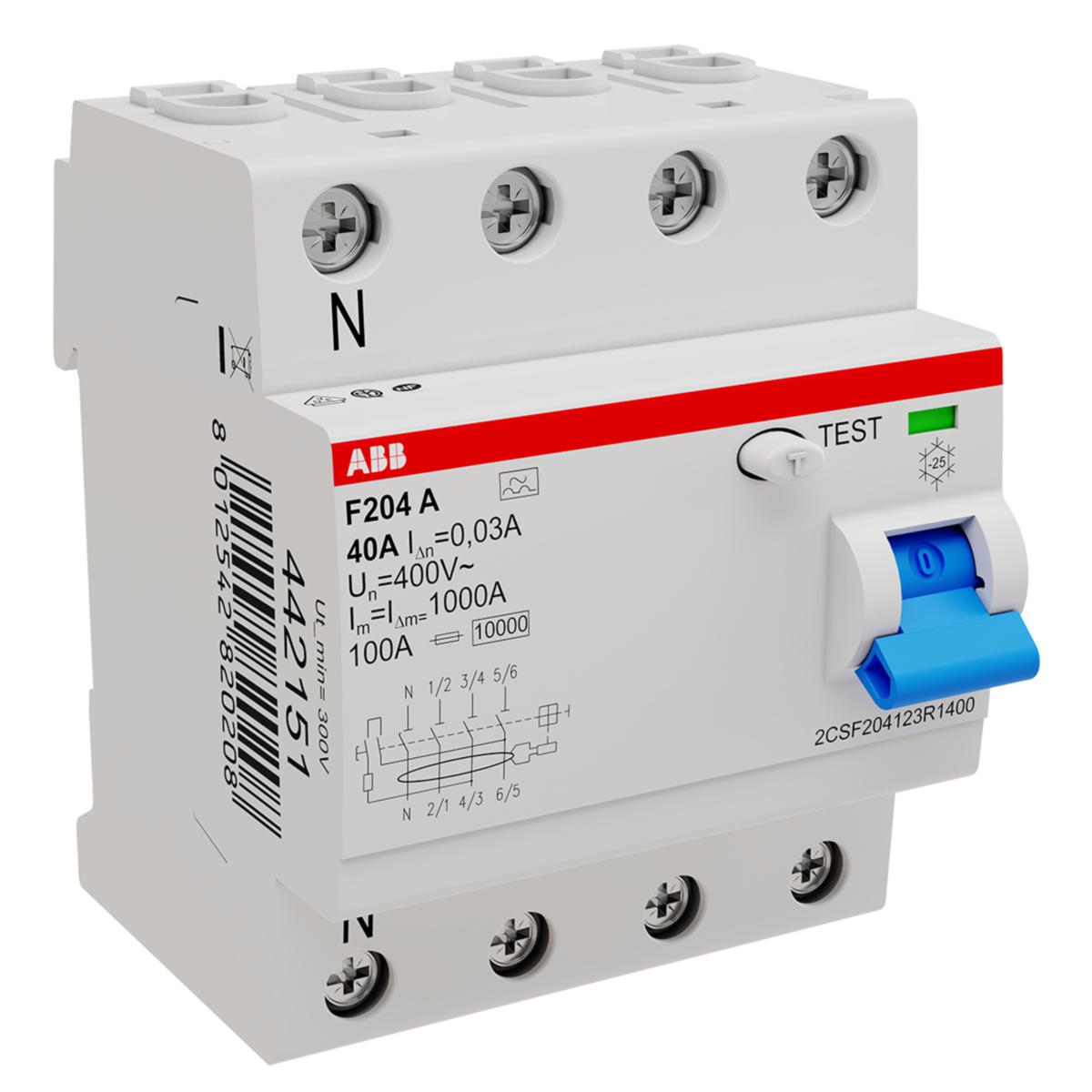

Earth fault breaker 4-pole type A, pro M compact, left neutral.
F204 A-40/0,03 RCCB 2CSF204123R1400
Article number: Suppl. article no:
2160161E
2CSF204123R1400
to see price and stock
Senses AC residual currents and pulsing DC residual currents.
- Article number: 2160161E
- Suppl. article no: 2CSF204123R1400
- Material class QL3300
Technical data
- Type: F 204-40/0.03 N-LEFT
- Leakage current type: A
- Number of poles: 4
- Rated voltage: 400 V
- Voltage type: AC
- Rated current: 40 A
- Rated fault current: 0.03 A
- Built-in depth: 69 mm
- Width in number of modular spacings: 4
- Surge current capacity: 0.25 kA
- Selective protection: No
- Short-circuit breaking capacity (Icw): 1 kA
- Frequency: Other
- Short-time delayed tripping: No
- Degree of protection (IP): IP2X
- Additional equipment possible: Yes
- Connectable conductor cross section solid-core: 25 mm²
- Connectable conductor cross section multi-wired: 0 mm²
- Mounting method: Other
- Pollution degree: 2
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 500 V
- Ambient temperature during operating: -25-55 °C
- With interlocking device: Yes
- Explosion-proof: No
- REACH Date: 2023-01-17
- REACH Information obligation: No
