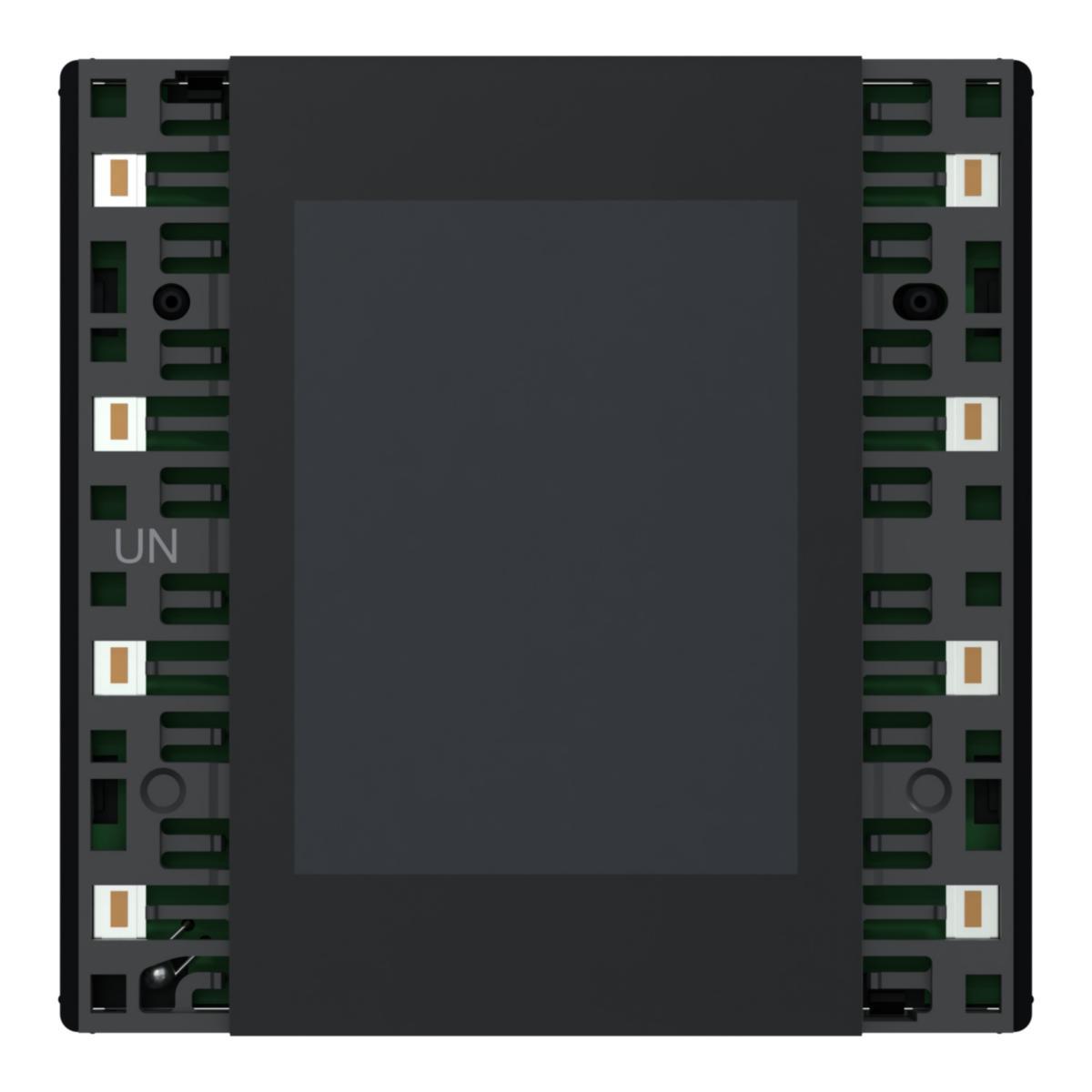

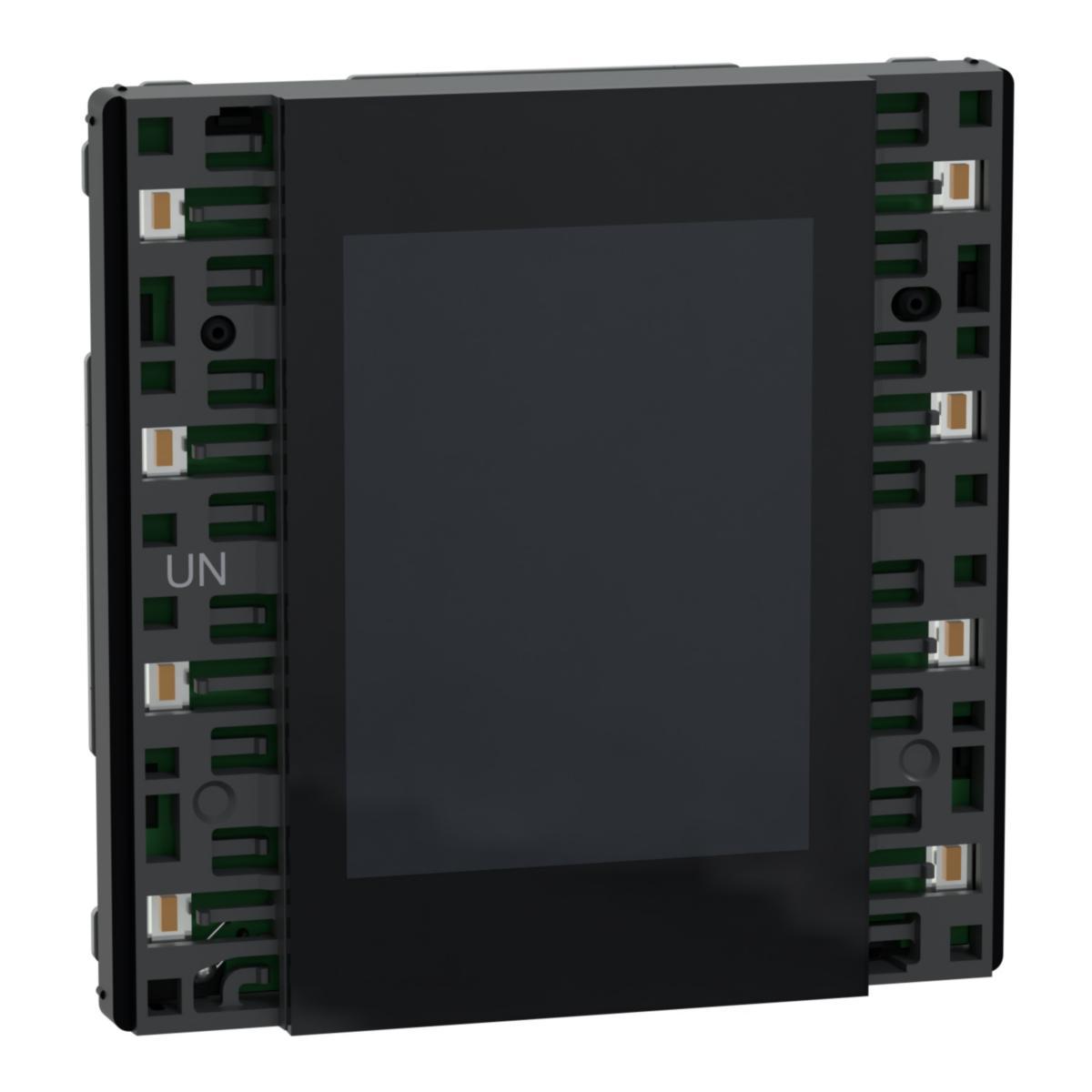

Push button Dyn Sec D-life UNI

This universal pushbutton module with dynamic labeling offers maximum flexibility through the selection of several rocker button combinations. The dynamic pushbutton display allows the selection of individual icons and label texts per button and is programmed in ETS. It is possible to configure up to 16 different combinations, from 2 to a maximum of 8 pushbutton functions, which can also be easily changed over time. To save energy and increase the device's service life, the display can be switched off after a desired time. The proximity sensor activates the display when you move towards it. In addition, it is possible to have the display show the time and date as a screensaver. The dynamic pushbutton display allows the selection of individual icons and label texts per button and is programmed in ETS. Dynamic display provides the possibility of updating the Iconer and text via remote programming. Dynamic display provides the possibility of updating the Iconer and text via remote programming. Power supply 21-30VDC, at 24V 16mA is required. In standby mode, the device draws 120mW with inactive display. Maximum power consumption is 400mW. Installation in a device box. Dimensions (W) 71 mm x (H) 71 mm x (D) 31 mm and a weight of 64.6 grams. The product is black with a glossy surface and is made of site material. Enclosure class IP 20 with operating temperature between -5 °C to +45 °C. Universal module with metal support frame, supplemented with rockers and optional System Design frame Simple and safe, the user-friendly interface makes it easy to control your KNX system. Possibility of encrypted communication with the highest security.
