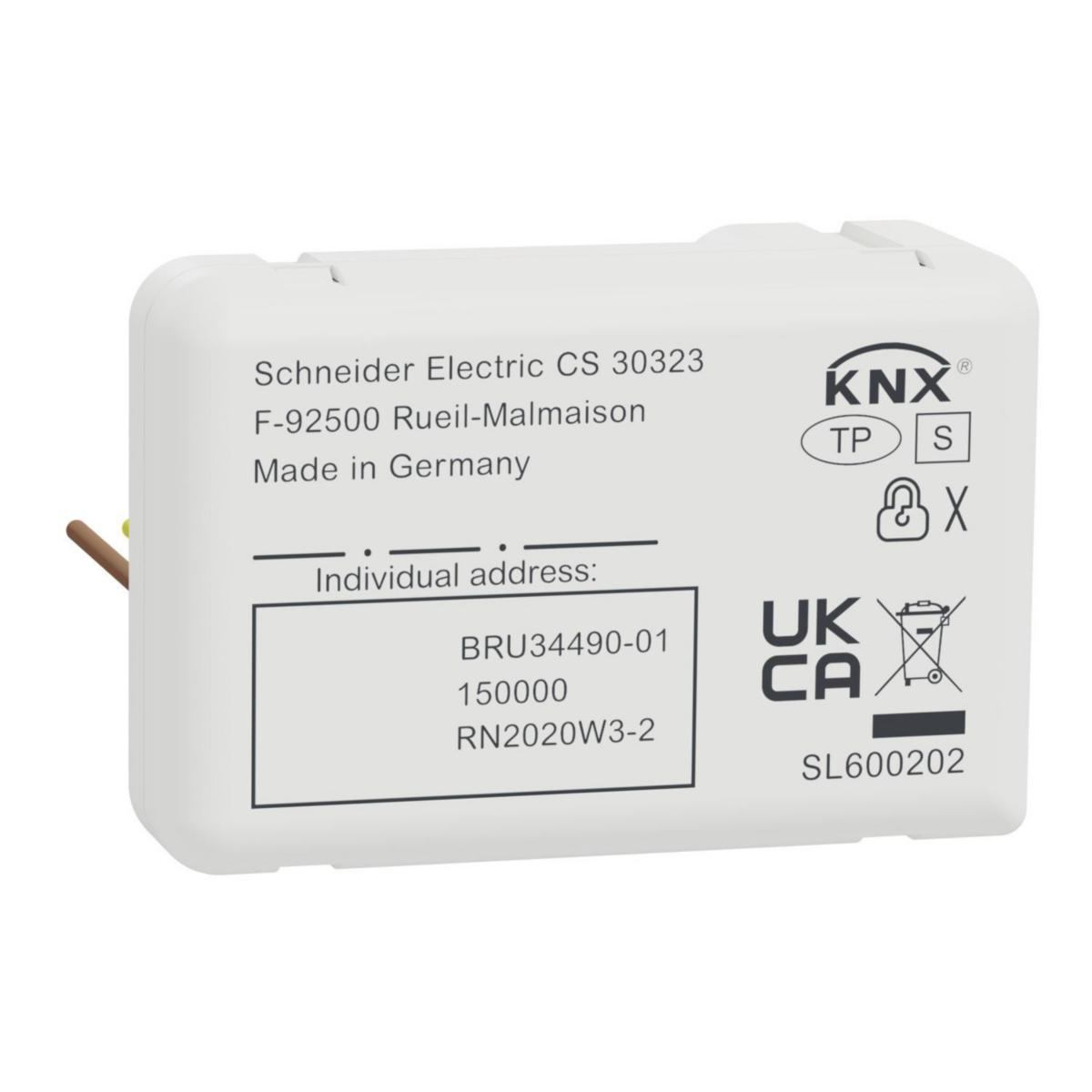

Push button Interface Basic

The push button interface converts the state of the physical contact into a digital signal that can be used for operations such as lighting, blinds, HVAC control, automation and maintenance, such as notifications and alarms. Configurable channels help to adapt the system to meet specific requirements. Potential-free input with a maximum cable length of 10 m. LED output max. 1.6 mA. Supports Tunable White and RGB color control. Powered via KNX bus with a nominal current of 7 mA. The device allows flush mounting with IP20. The operating temperature is from -5 °C up to +45 °C. KNX Secure compatible. KNX Secure is a security feature in the KNX standard for home and building control. Flexibility that saves installation time and provides adaptation options for future needs and changes.
