Extronic

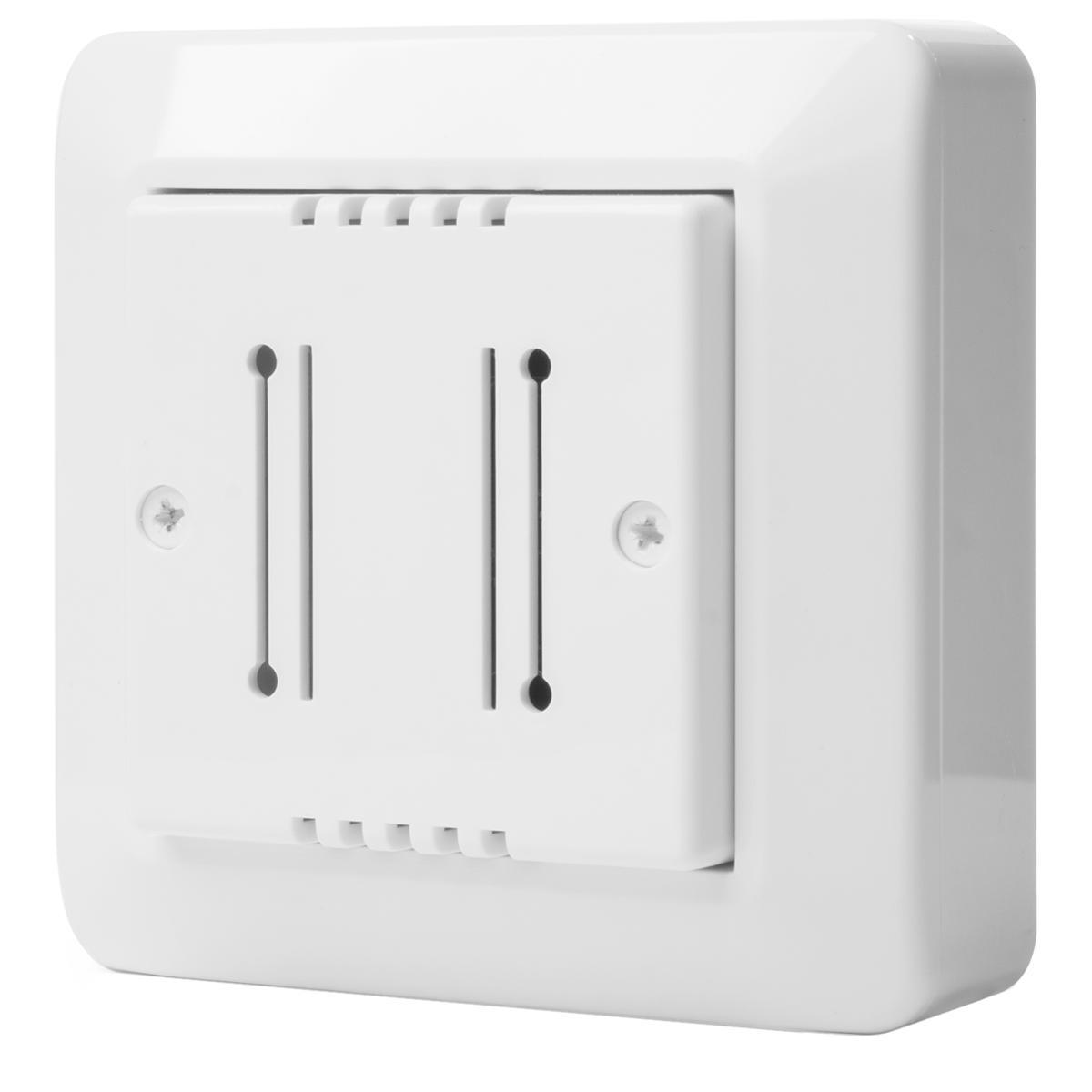

Detector acoustic AD36 DL
Acuostic detektor AD-36 DL
Article number: Suppl. article no:
1306082
13151
to see price and stock
The AD-36 DL is a presence detector for controlling DALI luminaires. The detector listens to sounds within two different frequency ranges which are analyzed for presence detection. The lighting is turned on by the inaudible "infrasound" with low frequencies 1 - 3 Hz (LF) such as e.g. occurs when a door is opened. The lighting is then kept on by higher sound frequencies 4 - 25 kHz (HF) from footsteps, speech and other sounds. The main function is automatic switching on, dimming and switching off of the lighting when there is presence or when the room is empty.
- Article number: 1306082
- Suppl. article no: 13151
- Ean no: 7340157100417
- Material class QI3090
Technical data
- Model: Presence detector
- Sensor type: Other
- Diameter reach on floor: 50 m
- Max. reach frontally: 25 m
- Max. reach sideways: 25 m
- Colour: White
- With DALI interface: Yes
- HVAC-control: No
- Mounting method: Flush-mounted
- Detection angle horizontal: 0-360 °
- Max. duty cycle: 120 min
- Material quality: Thermoplastic
- Response value luminosity adjustable: No
- Min. switch-on time: 2 s
- Dim function with dimmer basic element: No
- Animal zone: No
- Remote operation: No
- Forced switch off: No
- Networkable: Yes
- Bridging switch: No
- Material: Plastic
- Halogen free: Yes
- Constant light control: No
- Suitable for wireless transmission: No
- With signal unit: No
- Optimum mounting height: 2 m
- Response value sensitivity adjustable: Yes
- Teach-function for response value luminosity: No
- Temperature: -25-55 °C
- Transparent: No
- Staircase light controller: Yes
- Surface finishing: Glossy
- Creep-under protection: No
- Surface protection: Untreated
- Switch-off delay: 1200 s
- With remote control: No
- REACH Date: 2021-09-16
- REACH Information obligation: No
