Extronic

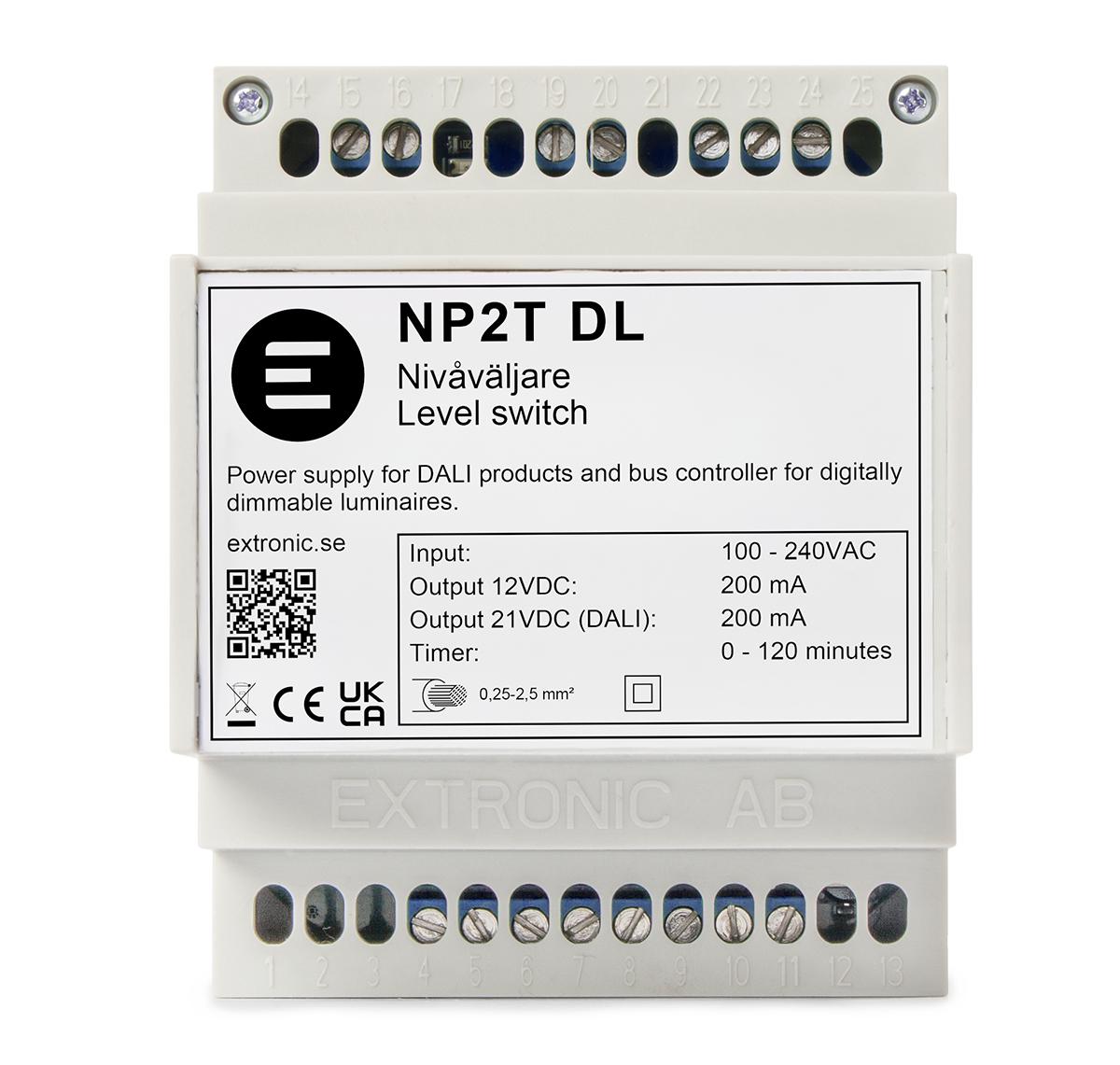

Level switch NP2T DL
Dali-compatible level switch
Article number: Suppl. article no:
1306080
13180
to see price and stock
Dali-compatible level selector that is supplied with 230VAC and controls up to 100 luminaires with Dali-don and broadcast function. Built-in power supply for the Dali bus and detector supply (200mA), max 8 PD-2200. The NP-2T DL has 2 adjustable levels and completely off. Input for presence detector (12V) and push button. There is also an input for a light sensor to block ignition. Max 200 mA load on the Dali bus.
- Article number: 1306080
- Suppl. article no: 13180
- Ean no: 7340157101179
- Material class QI3090
Technical data
- Device width: 72 mm
- Device depth: 76 mm
- Device height: 92 mm
- Applicable with infrared button: No
- Applicable with button: Yes
- Applicable with presence indicator: Yes
- Applicable with movement sensor: Yes
- Applicable with time switch/timer: Yes
- Applicable with transmission button: No
- Light value memory: No
- Operating method: Turn/push button
- Mounting method: Surface mounted
- Nominal voltage: 230 V
- Rated current: 0.16 A
- Substation input: No
- Control current: 200 mA
- REACH Date: 2021-09-16
- REACH Information obligation: No
