Extronic

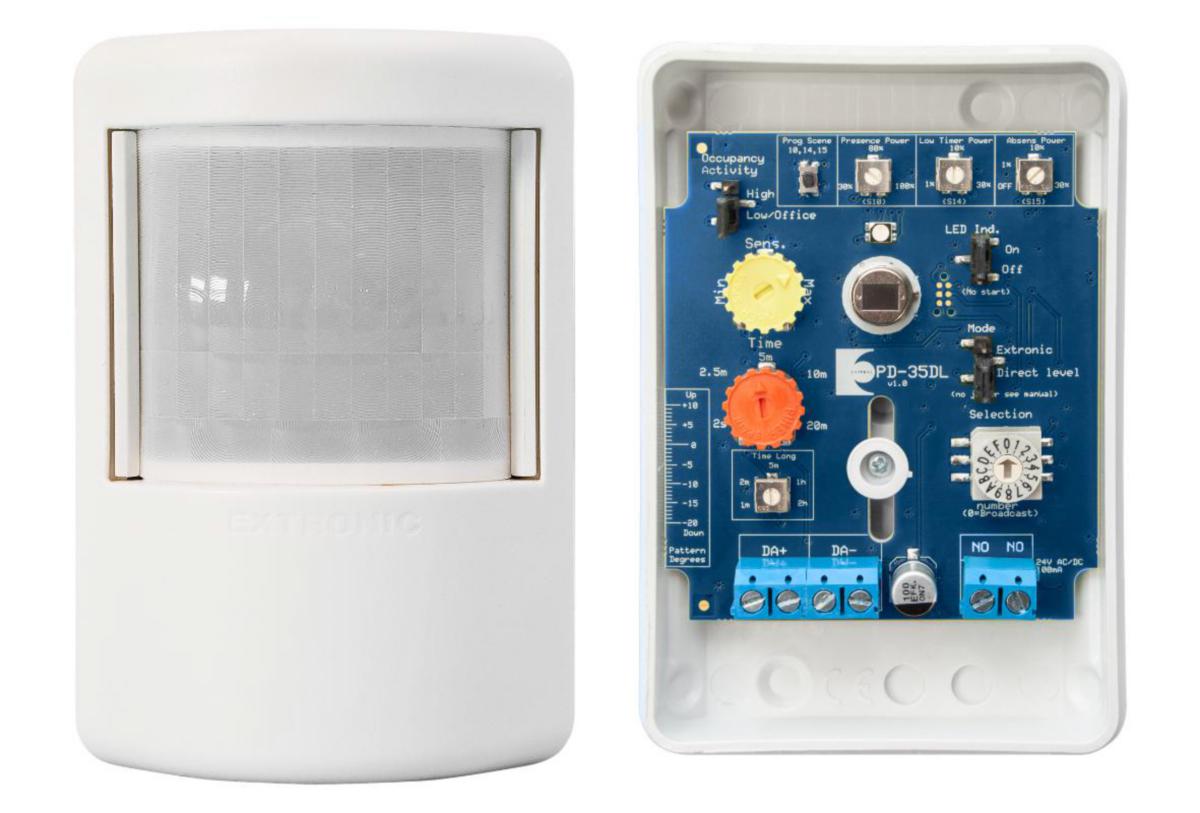

IR detector PD35 DL
Presence detector PD-35 DL
Article number: Suppl. article no:
1301147
13148
to see price and stock
The PD-35 DL is an IR detector intended for presence detection and control of dali lighting fixtures and with a relay output for e.g. ventilation.
When delivered, the range of the detector is 40 meters at a 90 degree opening angle, but by changing the lens the range can be extended to 80 meters. The range can also be reduced to make the detector more sensitive to small movements in e.g. a school hall. Adjustable levels and times directly in the detector.
When delivered, the range of the detector is 40 meters at a 90 degree opening angle, but by changing the lens the range can be extended to 80 meters. The range can also be reduced to make the detector more sensitive to small movements in e.g. a school hall. Adjustable levels and times directly in the detector.
- Article number: 1301147
- Suppl. article no: 13148
- Ean no: 7340157100073
- Material class QI3090
Technical data
- Model: Presence detector
- Sensor type: Passive infrared
- Scan angle: 90 °
- Max. reach frontally: 40 m
- Max. reach sideways: 40 m
- Colour: White
- With DALI interface: Yes
- HVAC-control: Yes
- Mounting method: Surface mounted
- Suitable for ceiling mounting: No
- Max. duty cycle: 20 min
- Degree of protection (IP): IP42
- Max. starting current: 0.15 A
- Response value luminosity adjustable: No
- Min. switch-on time: 2 s
- Voltage type: DC
- Dim function with dimmer basic element: No
- Animal zone: No
- Remote operation: No
- Forced switch off: Yes
- Networkable: Yes
- Bridging switch: No
- Material: Plastic
- Halogen free: Yes
- Constant light control: No
- Suitable for wireless transmission: No
- With signal unit: No
- Optimum mounting height: 2.2 m
- RAL-number (similar): 9003
- Response value sensitivity adjustable: Yes
- Transparent: No
- Staircase light controller: No
- Creep-under protection: No
- Nominal voltage: 16-22 V
- With remote control: No
- Width: 69 mm
- Height: 100 mm
- Depth: 50 mm
- Anti-bacterial treatment: No
- Forced switch on: No
- Max. presence range: 1500 m²
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Connection type: Screwed terminal
- REACH Date: 2021-09-16
- REACH Information obligation: No
