Elma

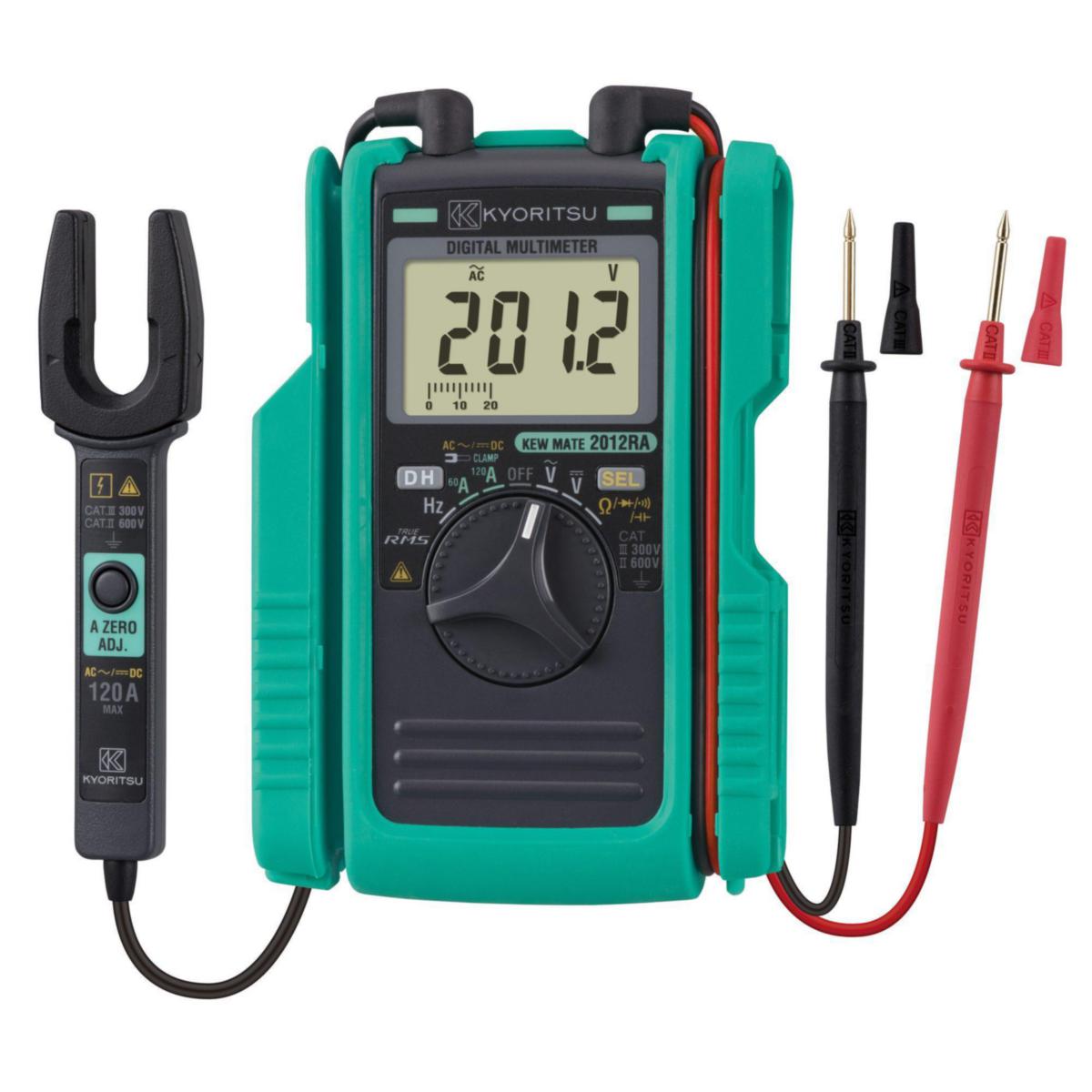

Multimeter Kewmate 2012R
MULTIMETER 2012RA TRUE RMS 120A AC/DC
Article number: Suppl. article no:
4203036
5706445250967
to see price and stock
True RKS with open power clamp
Kewmate 2012R is one of the top models with the series of handy multimeters with open power clamp. The instrument now has new features and is equipped with TRMS-detector, automatic DC zero adjustment as well as a new and larger clamp which can measure up to 120A AC / DC.
Kewmate 2012R has a large easy-to-read display with analogue Bar graph, and it measures voltage, current, resistance, throughput, frequency, and is equipped with auto range selection, data hatch and auto-rejection. The instrument can be stored in the pocket and it is delivered with a powerful protection cover in which the test leads and the power clamp are well-protected. The instrument complies with IEC 61010-1 KAT III 300V and is delivered complete with test leads, batteries, protective cover and manual.
Kewmate 2012R is one of the top models with the series of handy multimeters with open power clamp. The instrument now has new features and is equipped with TRMS-detector, automatic DC zero adjustment as well as a new and larger clamp which can measure up to 120A AC / DC.
Kewmate 2012R has a large easy-to-read display with analogue Bar graph, and it measures voltage, current, resistance, throughput, frequency, and is equipped with auto range selection, data hatch and auto-rejection. The instrument can be stored in the pocket and it is delivered with a powerful protection cover in which the test leads and the power clamp are well-protected. The instrument complies with IEC 61010-1 KAT III 300V and is delivered complete with test leads, batteries, protective cover and manual.
- Article number: 4203036
- Suppl. article no: 5706445250967
- Ean no: 4560187066740
- Material class QF2500
Technical data
- Packagin Size: 1 ST/10 ST/40 ST
- Type: Multimeter Kewmate 2012R
- Battery: 2 x AAA
- Weight: 210 g
- Network cable: 0-60 mOhm
- Max. voltage measuring circuit category: 300 V
- Max. voltage measuring range DC: 600 V
- REACH Date: 2021-12-06
- Max. voltage measuring range AC: 600 V
- Frequency: 0-10 MHz
- Max. current measuring range, AC/DC: 120 A
- Max. voltage measuring range AC/DC: 600 V
- Multiple display: Yes
- Dimensions: 126x87x21 mm
- True RMS measurement: Yes
- Measurement principle: True root mean square
- Measuring circuit category: CAT III
- REACH Information obligation: No
- Measuring range selection: Automatic
- Indication: Analogue/digital
- Data hold: Yes
- Current supply: Battery
- Frequency measurement: Yes
- Continuity test: Yes
