Elma
Multimeter 2805

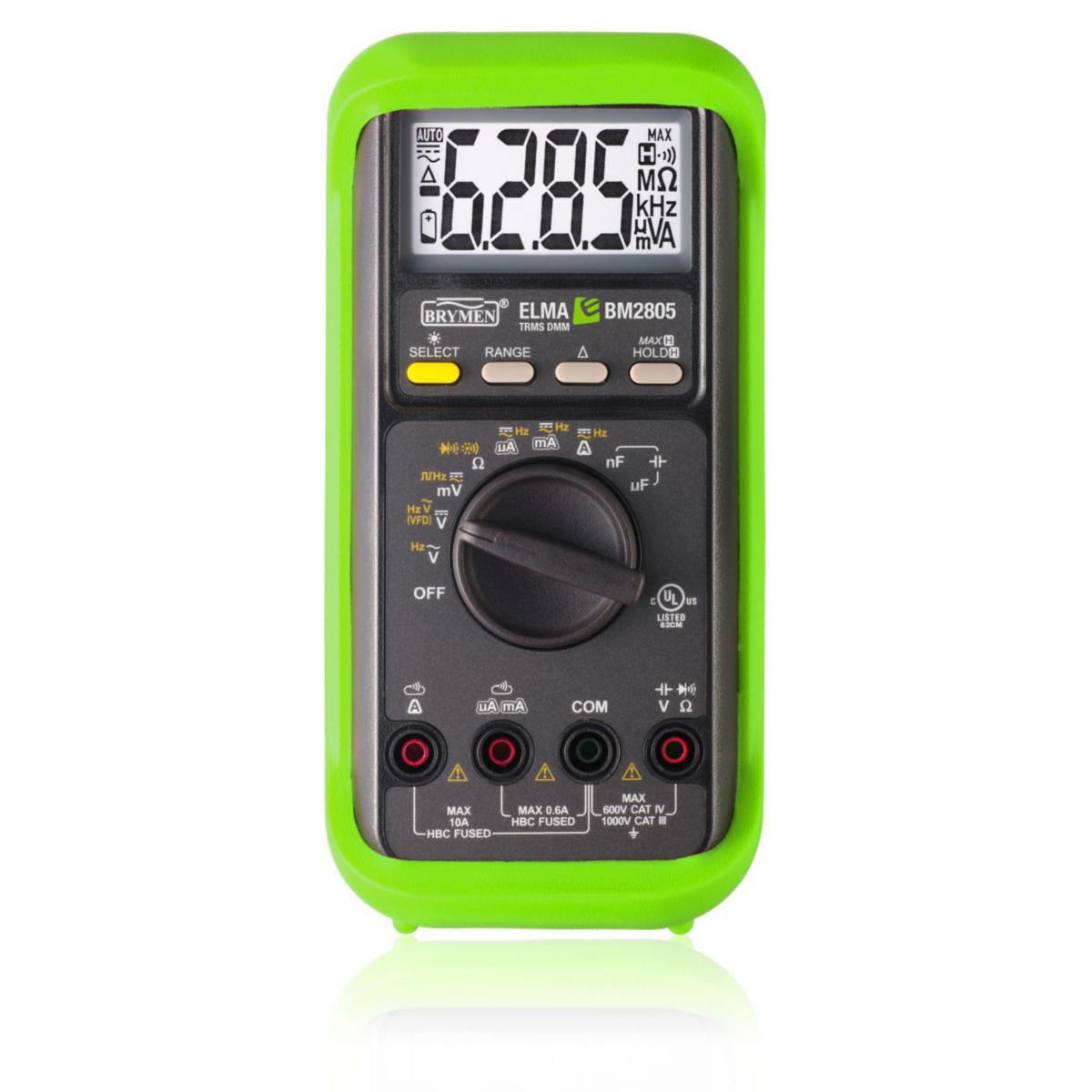

Elma BM2805 Multimeter
Article number: Suppl. article no:
4203694
5706445410453
to see price and stock

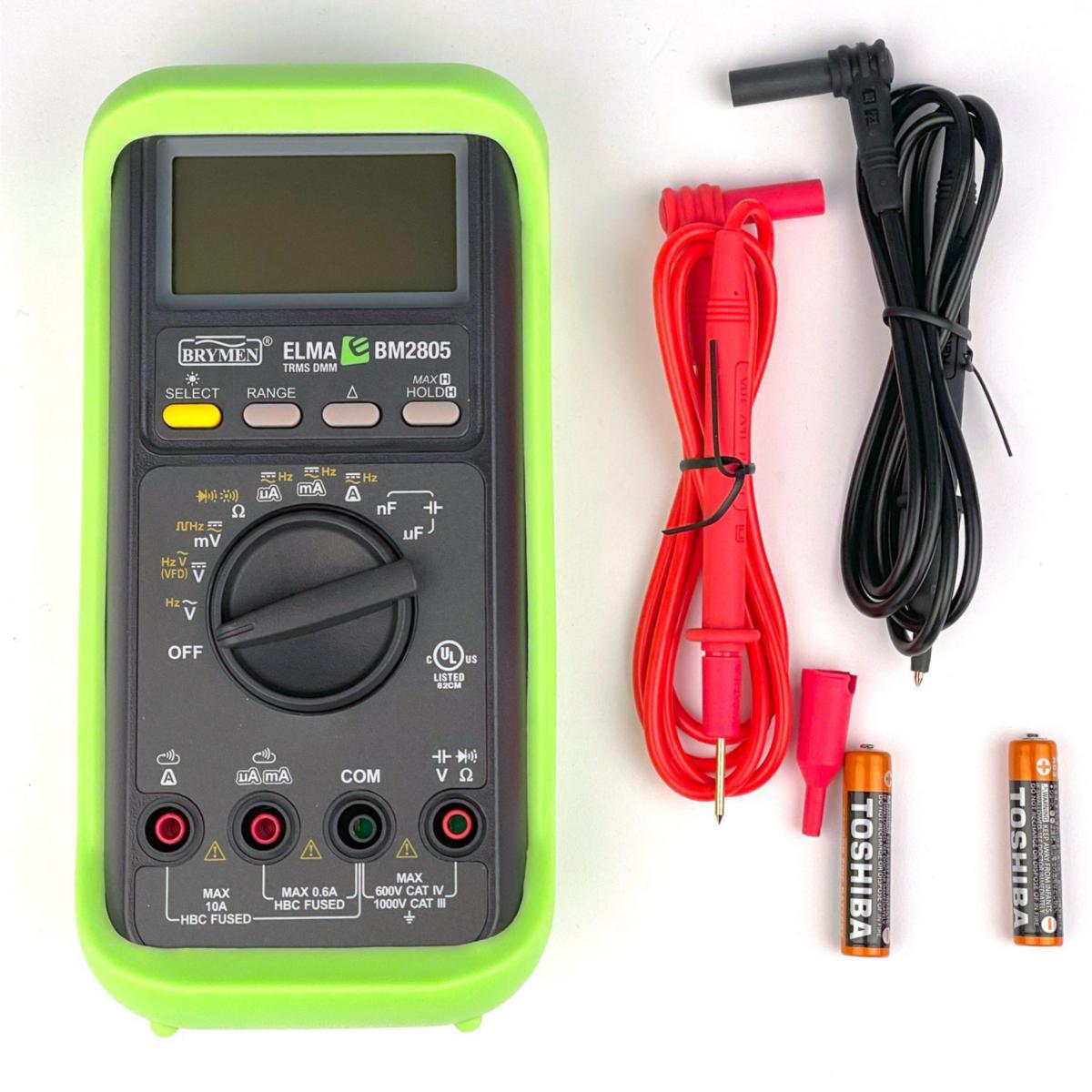

The Elma BM2805 is a robust, True RMS multimeter with backlit LED display and max and data hold. The instrument has automatic range selection, relative measurement and VFD filter and measures both voltage, current, frequency, resistance, capacitance, diodes and continuity. Elma BM2805 withstands overload, warns in case of incorrect connection and is equipped with high-efficiency fuses. Elma BM2805 complies with IEC 61010 CAT IV 600V/CAT III 1000V, and is delivered complete incl. test leads, battery, robust rubber cover and manual.
- Article number: 4203694
- Suppl. article no: 5706445410453
- Ean no: 5706445410453
- Replaces art.nbr: 4203150
- Material class QF250A
Technical data
- Max. voltage measuring range AC: 1000 V
- Frequency measurement: Yes
- Indication: Digital
- Capacitance measurement: Yes
- Data hold: Yes
- Measuring circuit category: CAT IV
- Measuring range selection: Automatic
- Relative value measurement: Yes
- Resistance test/diode test: Yes
- True RMS measurement: Yes
- Continuity test: Yes
- Max. voltage measuring circuit category: 600 V
- With display backlight: Yes
- Max. voltage measuring range DC: 1000 V
- Max. value storage: Yes
- Min. value storage: Yes
- Measurement principle: True root mean square
- Current supply: Battery
- REACH Date: 2024-01-10
- REACH Information obligation: No
