Isolation tester and TRMS Cat IV multimeter, BM 878
MATERIAL KIT 2047 EXCL INSULATORS
Article number: Suppl. article no:
4201173
42.878
to see price and stock

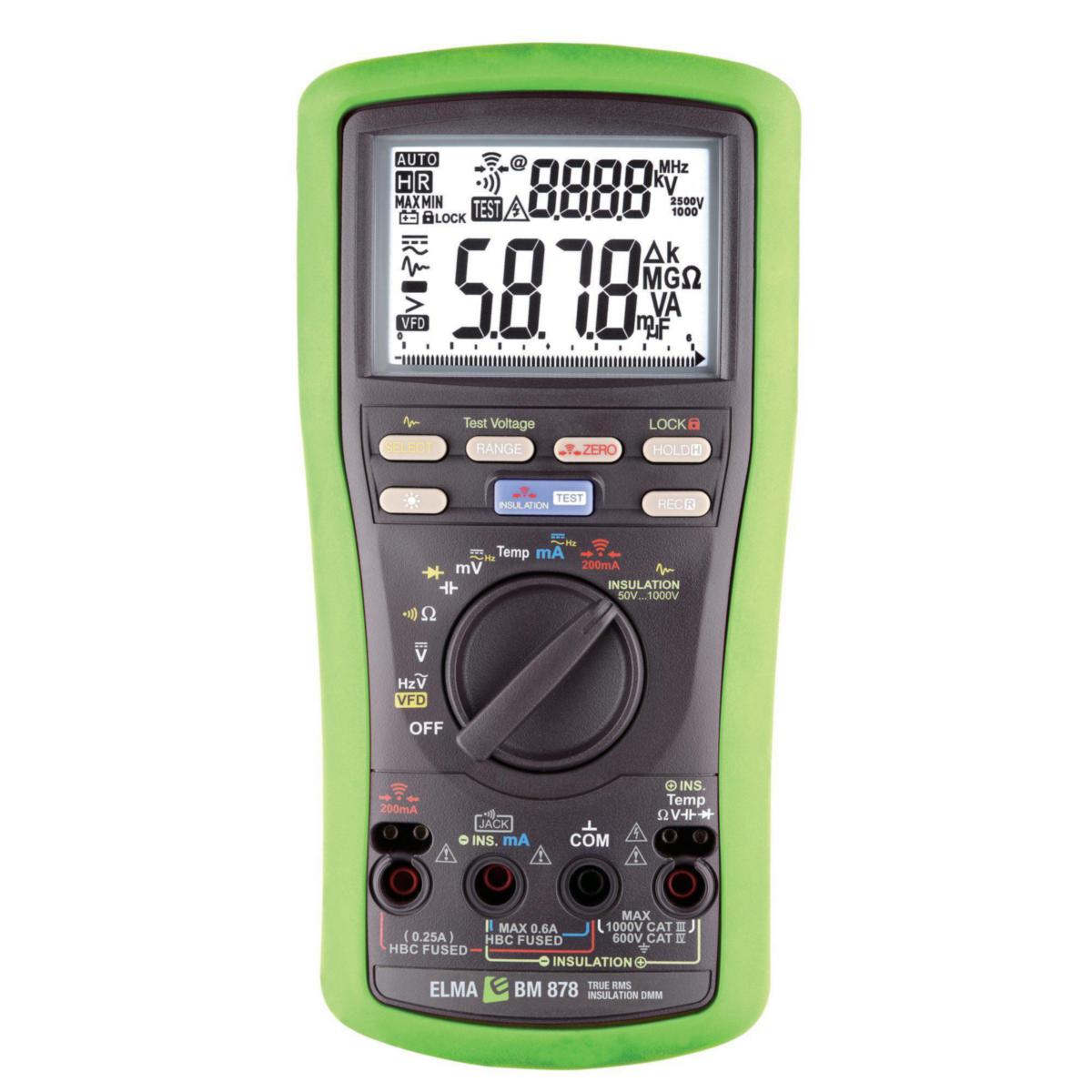

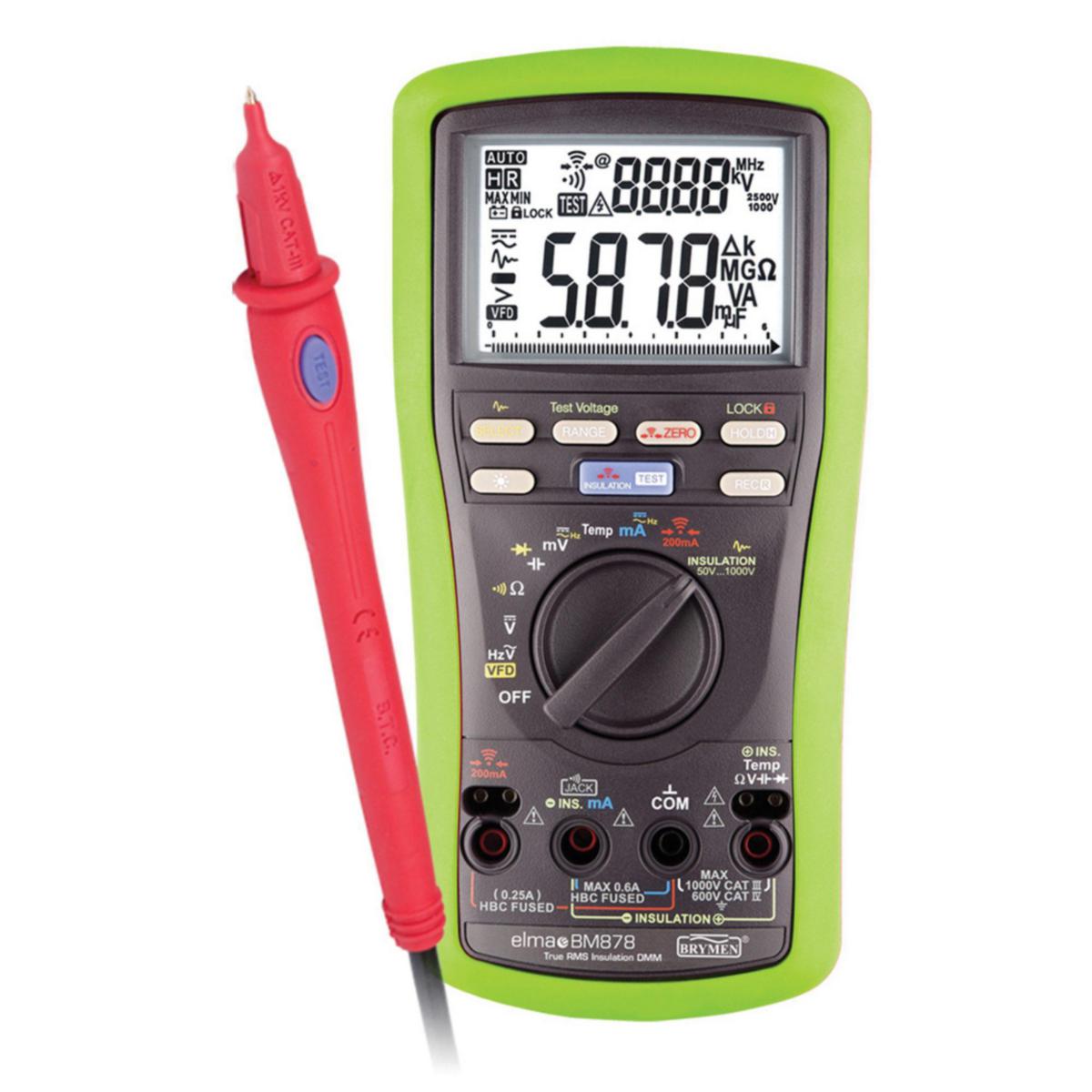

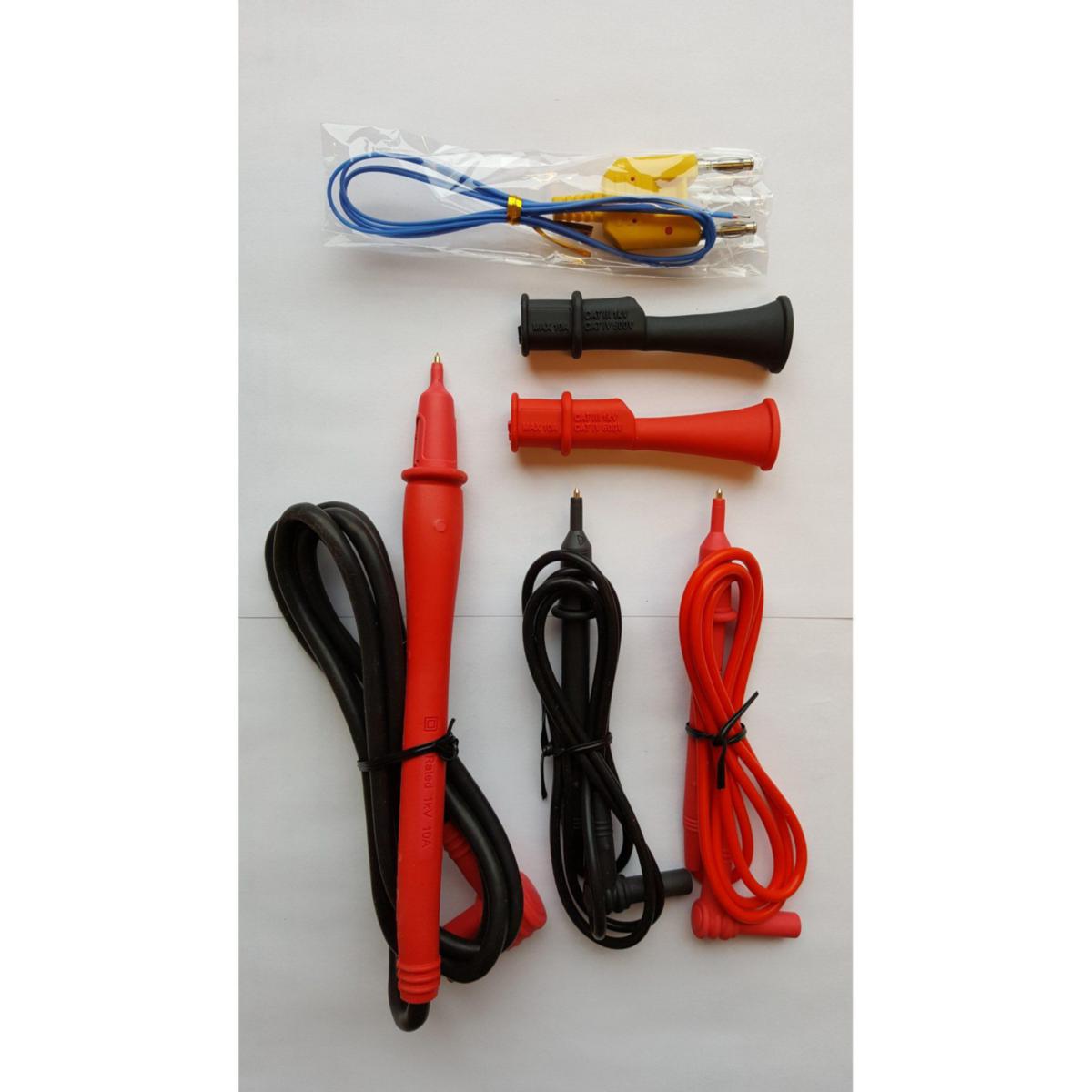

BM 878 is a true TRMS CAT IV multimeter with integrated isolation tester. The isolation tester has five optional test voltages. The instrument also has a built-in 200mA ohmmeter for measuring continuity. The BM 878 is equipped with a large, illuminated double display and a fast, analogue bar graph. The instrument measures TRMS voltage, current, frequency, resistance, capacitance, diodes continuity and temperature. Elma BM 878 has a number of extra functions that include: max / min, data hold, auto shutdown, automatic / manual range selection and VFD function, which allows the instrument to measure real values after a frequency converter. The multimeter meets EN61010-1 CAT IV 600V and is supplied incl. remote control, test leads, batteries, type K temperature probe and manual.
- Article number: 4201173
- Suppl. article no: 42.878
- Ean no: 5706445410408
- Material class QF250A
Technical data
- Type: BM 878
- Frequency measurement: Yes
- Indication: Digital
- Capacitance measurement: Yes
- Data hold: Yes
- Multiple display: Yes
- Measuring circuit category: CAT IV
- Measuring range selection: Manual/automatic
- Resistance test/diode test: Yes
- Temperature measurement: Yes
- True RMS measurement: Yes
- Continuity test: Yes
- Max. voltage measuring circuit category: 600 V
- Nominal test voltage 1000 V: Yes
- Nominal test voltage 500 V: Yes
- Temperature measurement TC: Yes
- With display backlight: Yes
- Max. value storage: Yes
- Min. value storage: Yes
- Measurement principle: True root mean square
- Current supply: Battery
- REACH Date: 2021-12-06
- REACH Information obligation: No
