Network tester SignalTEK QT

SignalTEK QT

Qualify copper installations – fast, easy and reliable

SignalTEK QT is designed for installers and technicians who want a fast and accurate method to qualify copper networks up to 10 Gb/s. Using the latest frequency-based technology from TREND Networks, SignalTEK QT combines high measurement accuracy, ease of use and full cloud integration in a compact device.

SignalTEK QT tests copper cables up to 400 MHz and delivers results in just five seconds. It measures Near-End Crosstalk (NEXT), Return Loss and Insertion Loss and clearly shows whether the installation can support speeds from 10 Mb/s to 10 Gb/s.

With live wiremap and TDR troubleshooting functionality, installations can be verified and faults located quickly. Built-in network diagnostics such as Ping, Traceroute, switch information and PoE load test up to 90 W allow connections to be analyzed on site.

Via AnyWARE Cloud, projects can be prepared online, synchronized directly to the tester and then uploaded to the cloud. Test results are saved centrally and can be printed as professional PDF reports, ensuring an efficient workflow and easy documentation.

SignalTEK QT is designed for installers and service technicians working with copper-based networks who need an efficient tester without unnecessary features. It requires minimal training and delivers fast, reliable documentation that customers can rely on.

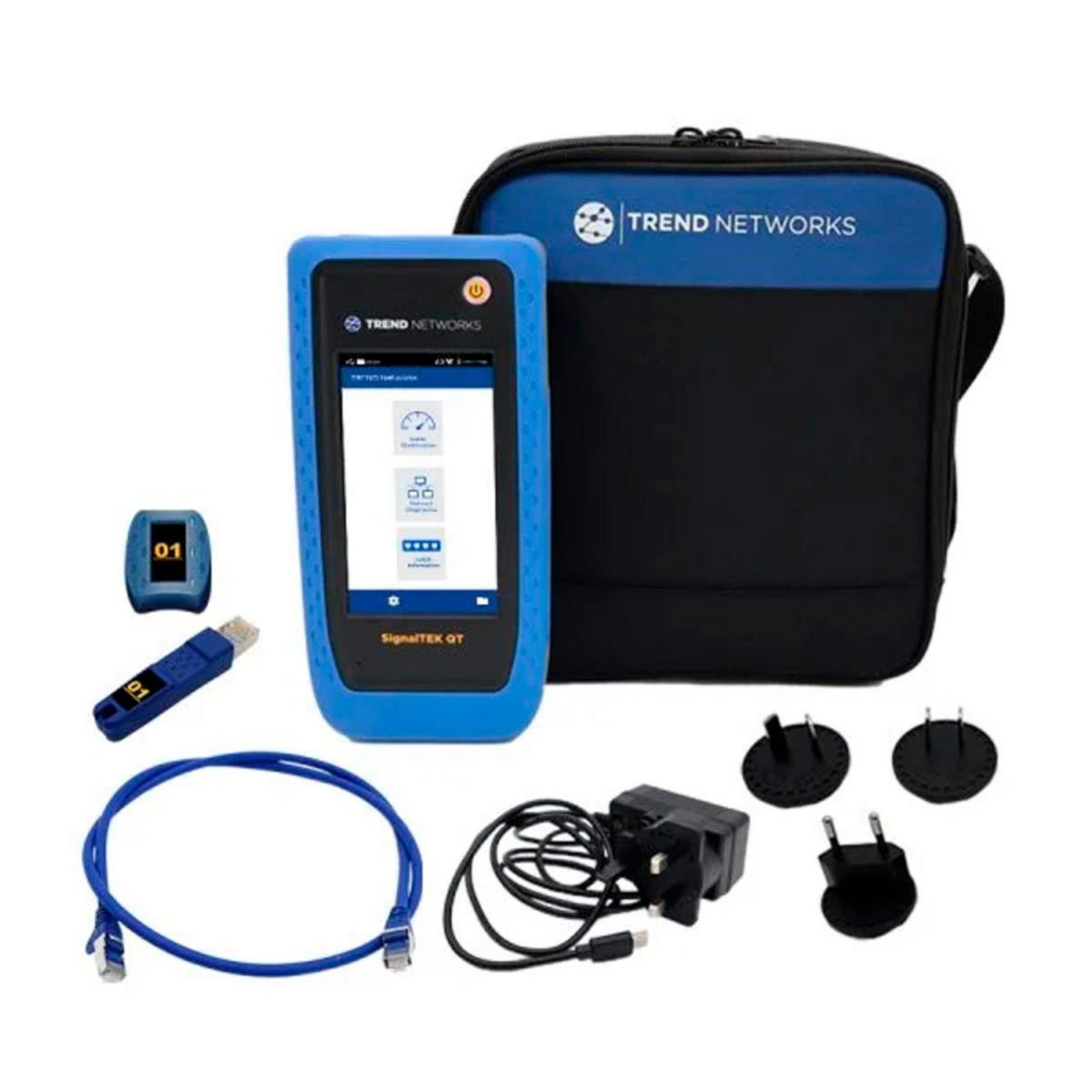

SignalTEK QT comes with: 1x male remote module #1, 1 female remote module #1, 1x 1m Cat. 6A shielded patch cable, 1x USB-C charger and bag
