Elma

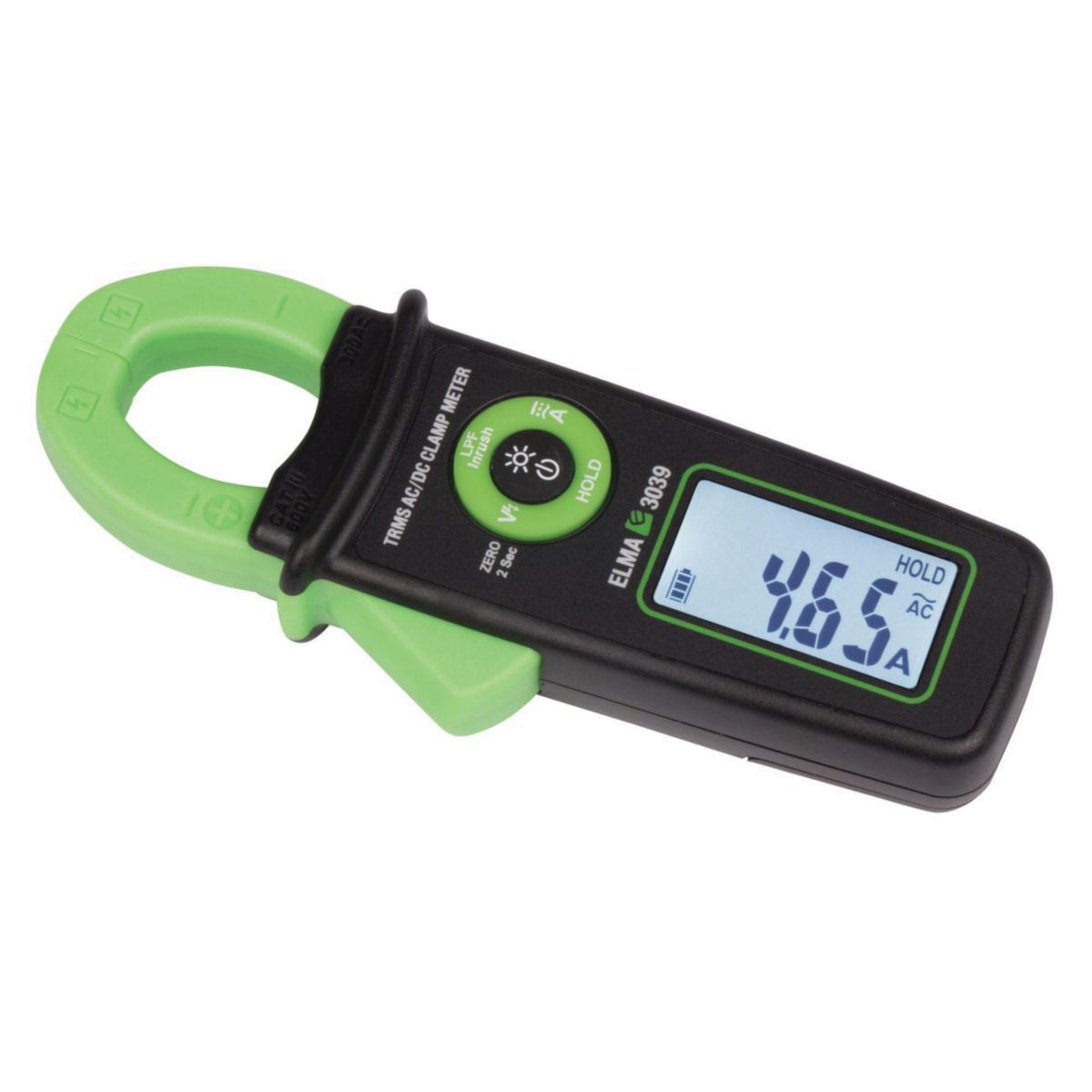

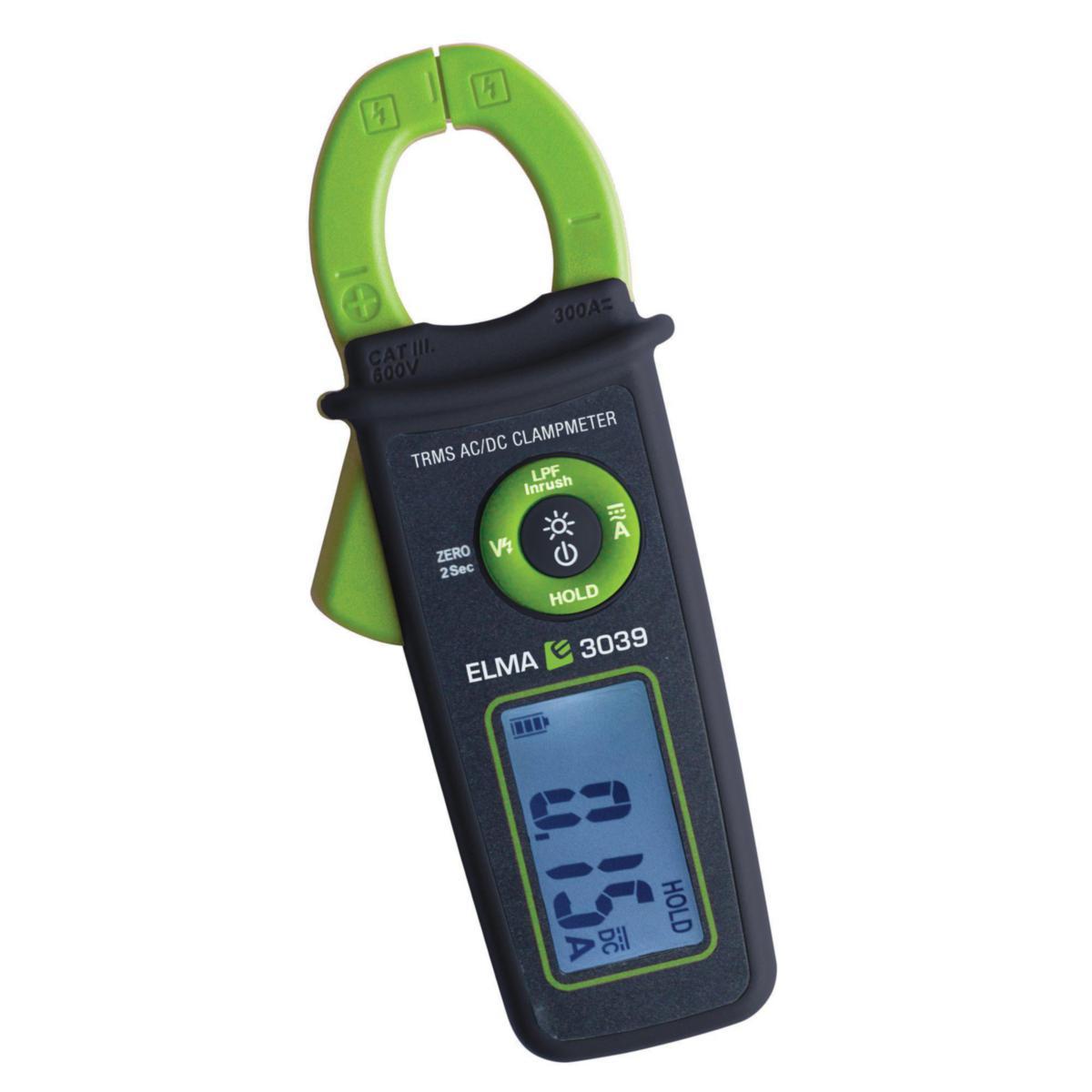

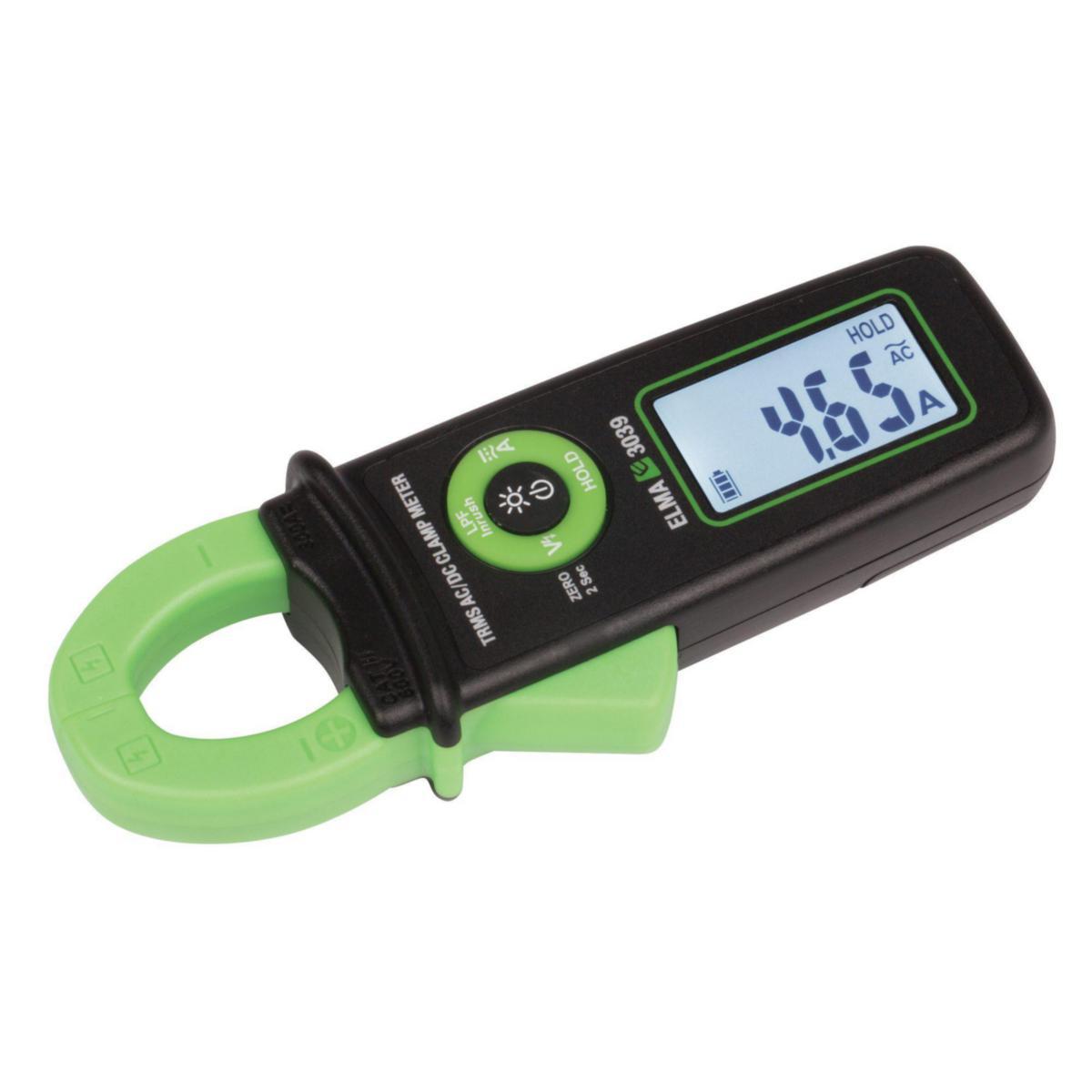

Digital True RMS AC/DC mini clamp ampere meter 3039
CLAMPMETER AC/DC 0
Article number: Suppl. article no:
4200667
5706445900053
to see price and stock
Elma 3039 is a true RMS clamp meter in a very handy design for easy measuring of AC & DC currents. The instrument has a resolution down to 10mA, a large back-lit display, smart data hold and automatic zero-adjustment. Elma 3039 has low pass filter and "Inrush" for measuring starting currents. With the "Volt sense" function voltage can be detected without any contact. The instrument complies with IEC 61010-1 KAT III 600V and supplied with batteries and manual.
- Article number: 4200667
- Suppl. article no: 5706445900053
- Ean no: 5706445900053
- Material class QF250A
Technical data
- Packagin Size: 1 ST/36 ST
- Height: 147 mm
- Width: 60 mm
- Design: Tong width: 24
- Display: 3-5/6 digits. Max. display: 5999
- Accuracy: ±1.5% + 5 D
- Information: Battery: 2x1,5V LR44 (incl.)
Power: 0-60-300 A - Jaw opening: 25 mm
- Max. voltage measuring circuit category: 600 V
- Current measuring range, DC: 300 A
- Current measuring range, AC: 300 A
- REACH Date: 2021-12-06
- Type: Elma 3039
- Colour: Black/Green
- True RMS measurement: Yes
- Measuring circuit category: CAT III
- Type of current: AC/DC
- REACH Information obligation: No
- Indication: Digital
- With display backlight: Yes
