Weidmüller

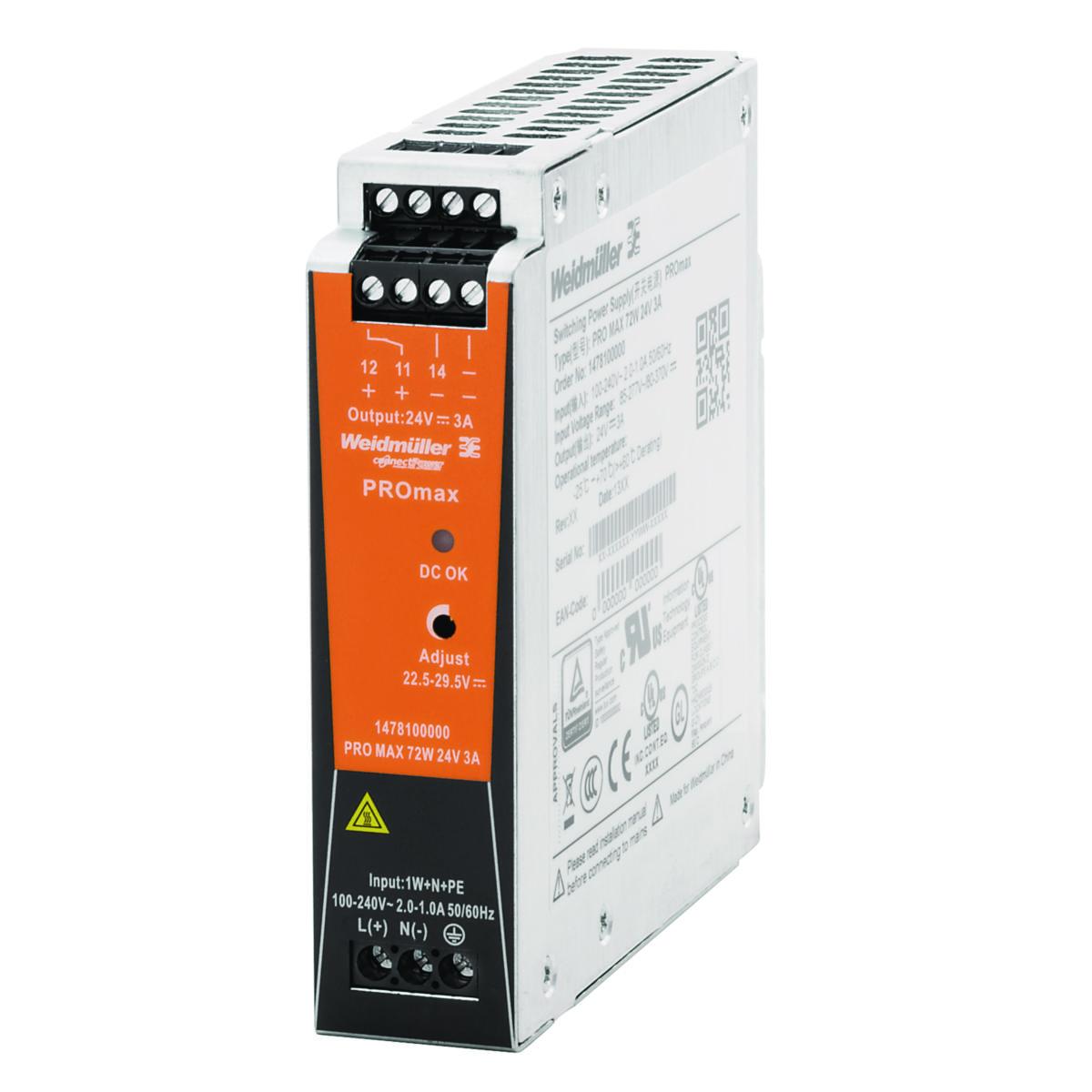

Power supply unit PROmax 1-phase
POWER SUPPLY UNIT PROMAX SP AGG MAX 72W 24V 3A
Article number: Suppl. article no:
5248261
1478100000
to see price and stock
Space-saving, "side-by-side" installation possible without air gap. Useful in many industry segments thanks to different approvals. PROmax reliably handles continuous overloads of up to 20% or short peak loads of 300%, which occur at high temperatures in switch cabinets. High boost capacity and full power are also possible in a wide temperature range.
- Article number: 5248261
- Suppl. article no: 1478100000
- Ean no: 4050118286021
- Material class QQ2230
Technical data
- Packagin Size: 1 ST
- 1st secondary output voltage: 22.5-29.5 V
- Nominal value output current 1: 3 A
- Secondary voltage adjustable: Yes
- Power output: 72 W
- Stabilized: Yes
- Rated supply voltage AC 50 Hz: 85-264 V
- Power consumption: 80.9 VA
- Rated supply voltage DC: 80-370 V
- Width: 32 mm
- Suitable for safety functions: No
- Short-circuit-proof: Yes
- Suitable for distribution board: No
- Performance level according to EN ISO 13849-1: None
- Degree of protection (IP): IP20
- Type of electric connection: Screw connection
- Voltage type (supply voltage): AC/DC
- Height: 130 mm
- Depth: 125 mm
- Direct mounting possible: No
- Built-in height: 230 mm
- Rated supply voltage AC 60 Hz: 85-264 V
- SIL according to IEC 61508: None
- Suitable for rail mounting: Yes
- Built-in width: 92 mm
- Nominal value output voltage 1: 24 V
- Output voltage stabilized: Yes
- Suitable for wall mounting: No
- REACH Date: 2022-10-28
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
