Phoenix Contact
DC/DC converter Quint-PS

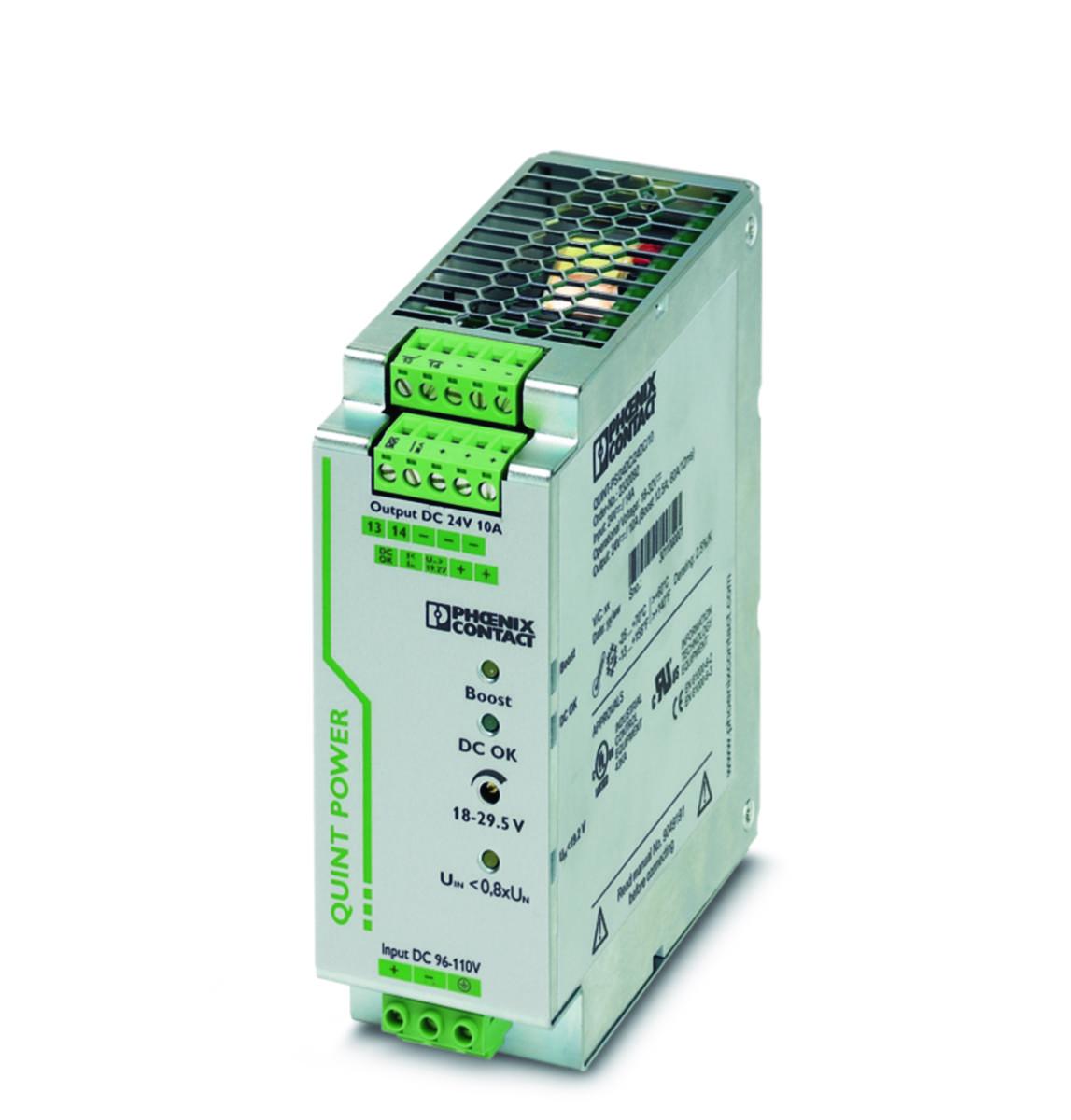

POWER SUPPLY UNIT QUINT-PS/96-110DC/24DC/10
Article number: Suppl. article no:
5240260
2905010
to see price and stock
DC / DC converters change the voltage level, improve the voltage at the end of long cables or build up independent supply systems through galvanic isolation.
For selective and thus economical securing of systems, the QUINT DC / DC converter quickly releases cable protection switches magnetically with 6-fold rated current. The high availability of the plant is ensured by the preventive function monitoring, which announces critical operating conditions before errors occur.
For selective and thus economical securing of systems, the QUINT DC / DC converter quickly releases cable protection switches magnetically with 6-fold rated current. The high availability of the plant is ensured by the preventive function monitoring, which announces critical operating conditions before errors occur.
- Article number: 5240260
- Suppl. article no: 2905010
- Ean no: 4046356908313
- Material class QQ210A
Technical data
- Width: 48 mm
- Suitable for distribution board: Yes
- Degree of protection (IP): IP20
- Height: 130 mm
- Depth: 125 mm
- Secondary voltage 1: 24 V
- Primary voltage 1: 67.2-154 V
- Primary voltage 3: 67.2 V
- Rated power: 240 VA
- Number of phases: 1
- Primary voltage 2: 67.2-154 V
- Ring core: No
- Suitable for mounting on PCB: No
