Omron

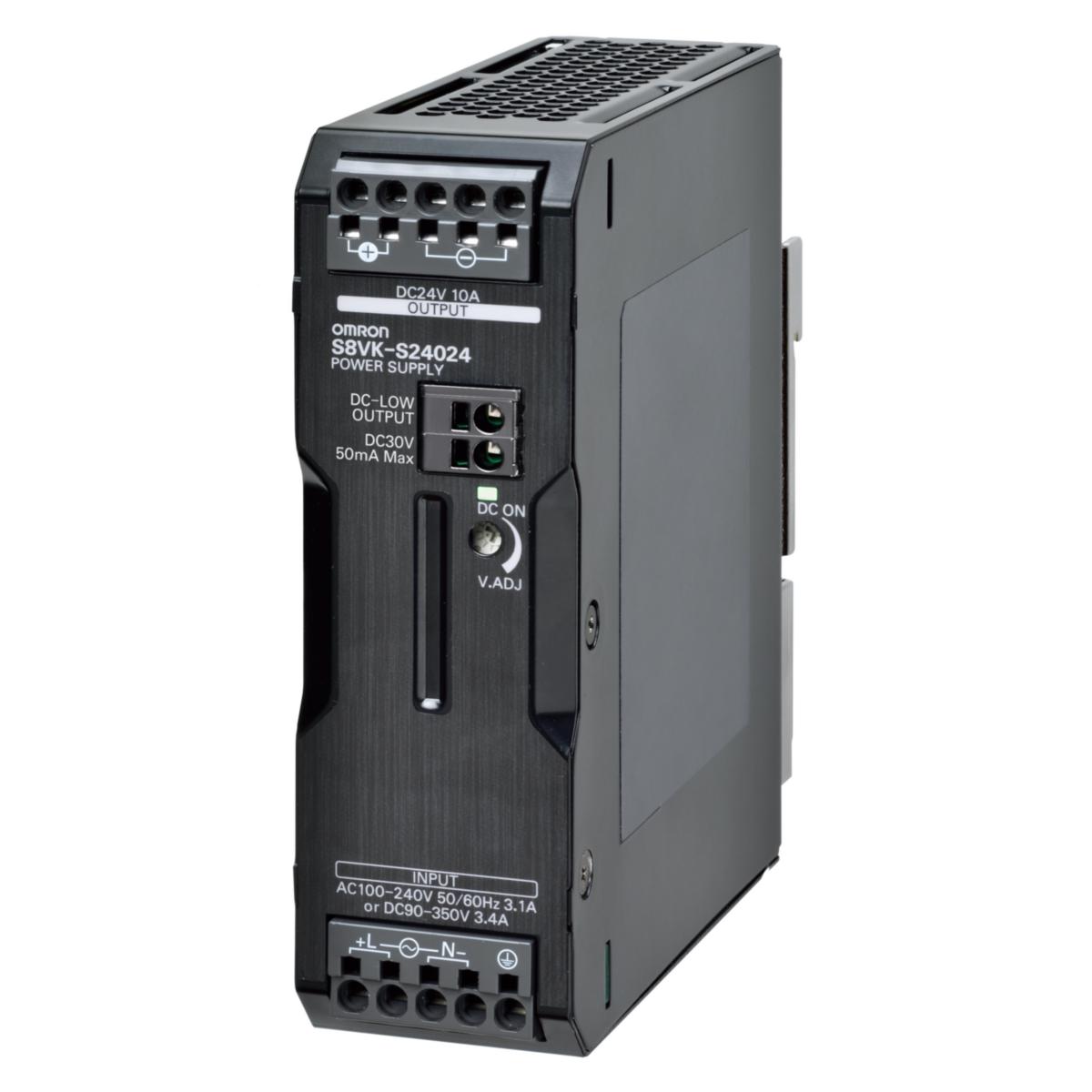

Power supply unit S8VK-S Push-in Plus
POWER SUPPLY UNIT S8VK-S 240W 10A/24VDC S8VK-S24024
Article number: Suppl. article no:
5240170
S8VK-S24024
to see price and stock
For DIN rail, Push-in connection lacquered circuit board
- Article number: 5240170
- Suppl. article no: S8VK-S24024
- Ean no: 4548583761131
- Material class QQ2220
Technical data
- Type: S8VK-S24024
- 1st secondary output voltage: 21.6-28 V
- Nominal value output current 1: 10 A
- Max. output current 1: 15 A
- Secondary voltage adjustable: Yes
- Power output: 240 W
- Stabilized: Yes
- Rated supply voltage AC 50 Hz: 100-240 V
- Power consumption: 299 VA
- Rated supply voltage DC: 90-350 V
- Width: 38 mm
- Suitable for safety functions: No
- Short-circuit-proof: Yes
- Suitable for distribution board: No
- Performance level according to EN ISO 13849-1: None
- Degree of protection (IP): IP20
- Type of electric connection: Spring clamp connection
- Voltage type (supply voltage): AC/DC
- Height: 124 mm
- Depth: 122 mm
- Width in number of modular spacings: 2.1
- Direct mounting possible: No
- Built-in height: 124 mm
- Rated supply voltage AC 60 Hz: 100-240 V
- SIL according to IEC 61508: None
- Suitable for rail mounting: Yes
- Built-in width: 38 mm
- Nominal value output voltage 1: 24 V
- Degree of protection (NEMA): Other
- Output voltage stabilized: No
- Suitable for wall mounting: No
- REACH Date: 2024-11-04
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
