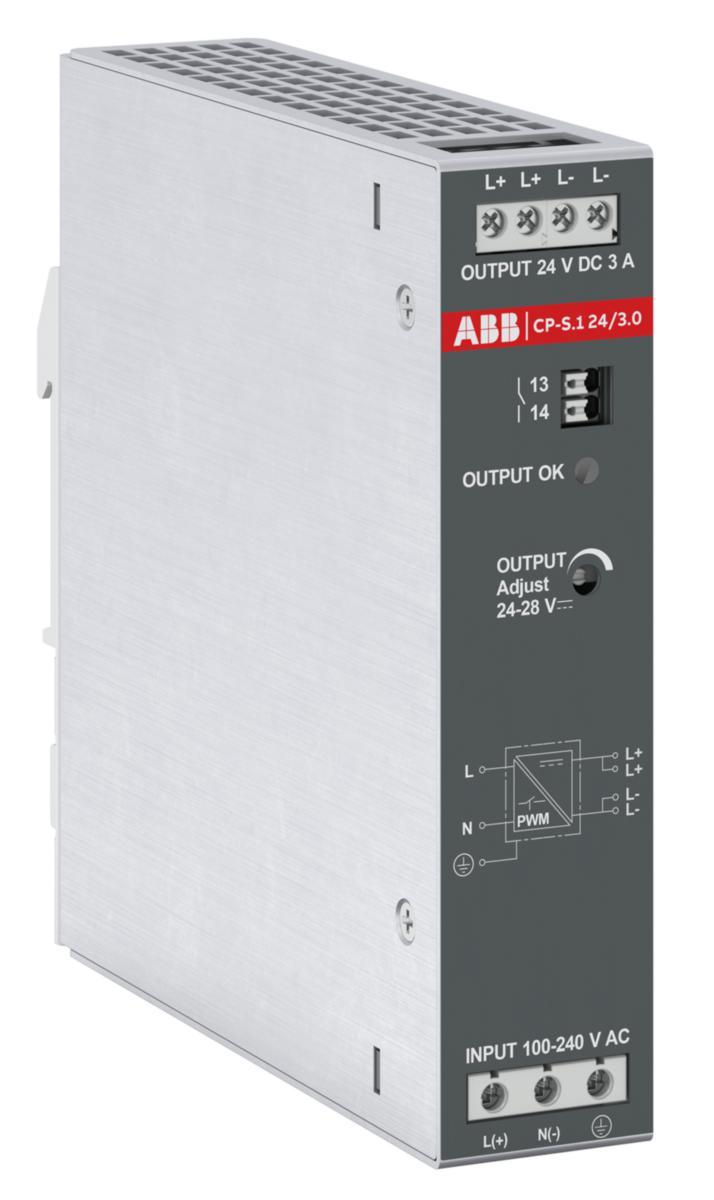

Power supply CP-S.1 - CP-S.1 24/3.0 Power supply
ABB

Power supply CP-S.1

CP-S.1 24/3.0 Power supply
Article number:
5213654
Suppl. article no:
1SVR320361R1000
‌
‌
‌
‌
‌
 to see price and stock
The primary switched power supply offers a wide input range of 85-264 V AC and 90-277 V DC, the rated voltage is 100-240 V AC and 100-250 V DC, respectively. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U / I output characteristic with a power reserve of up to 150% for 5 s and allows parallel operation to increase capacity and enable redundancy. Additional functions are: power factor correction acc. according to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.
  • Article number:
    5213654
  • Suppl. article no:
    1SVR320361R1000
  • Ean no:
    4013614561092
  • Material class
    QQ219B
Technical data
  • Packagin Size: 1 PCS/21 PCS
  • Type: CP-S.1 24/3.0
  • 1st secondary output voltage: 24 V
  • Nominal value output current 1: 3 A
  • Max. output current 1: 4.5 A
  • Secondary voltage adjustable: No
  • Power output: 72 W
  • Stabilized: Yes
  • Rated supply voltage AC 50 Hz: 85-264 V
  • Power consumption: 82 VA
  • Rated supply voltage DC: 90-277 V
  • Width: 30.5 mm
  • Suitable for safety functions: No
  • Short-circuit-proof: Yes
  • Suitable for distribution board: No
  • Performance level according to EN ISO 13849-1: None
  • Degree of protection (IP): IP20
  • Type of electric connection: Screw connection
  • Max. output current 2: 0 A
  • Max. output current 3: 0 A
  • 2nd secondary output voltage: 0 V
  • 3rd secondary output voltage: 0 V
  • Voltage type (supply voltage): AC/DC
  • Height: 129.4 mm
  • Depth: 127 mm
  • Direct mounting possible: No
  • Built-in height: 129.4 mm
  • Rated supply voltage AC 60 Hz: 85-264 V
  • SIL according to IEC 61508: None
  • Suitable for rail mounting: Yes
  • Built-in width: 30.5 mm
  • Nominal value output voltage 1: 24 V
  • Nominal value output voltage 2: 0 V
  • Nominal value output voltage 3: 0 V
  • Nominal value output current 2: 0 A
  • Nominal value output current 3: 0 A
  • Degree of protection (NEMA): 1
  • Output voltage stabilized: Yes
  • Wall mounting possible: No
  • REACH Date: 2022-01-18
  • REACH Information obligation: No
