Siemens
Power supply Sitop modules

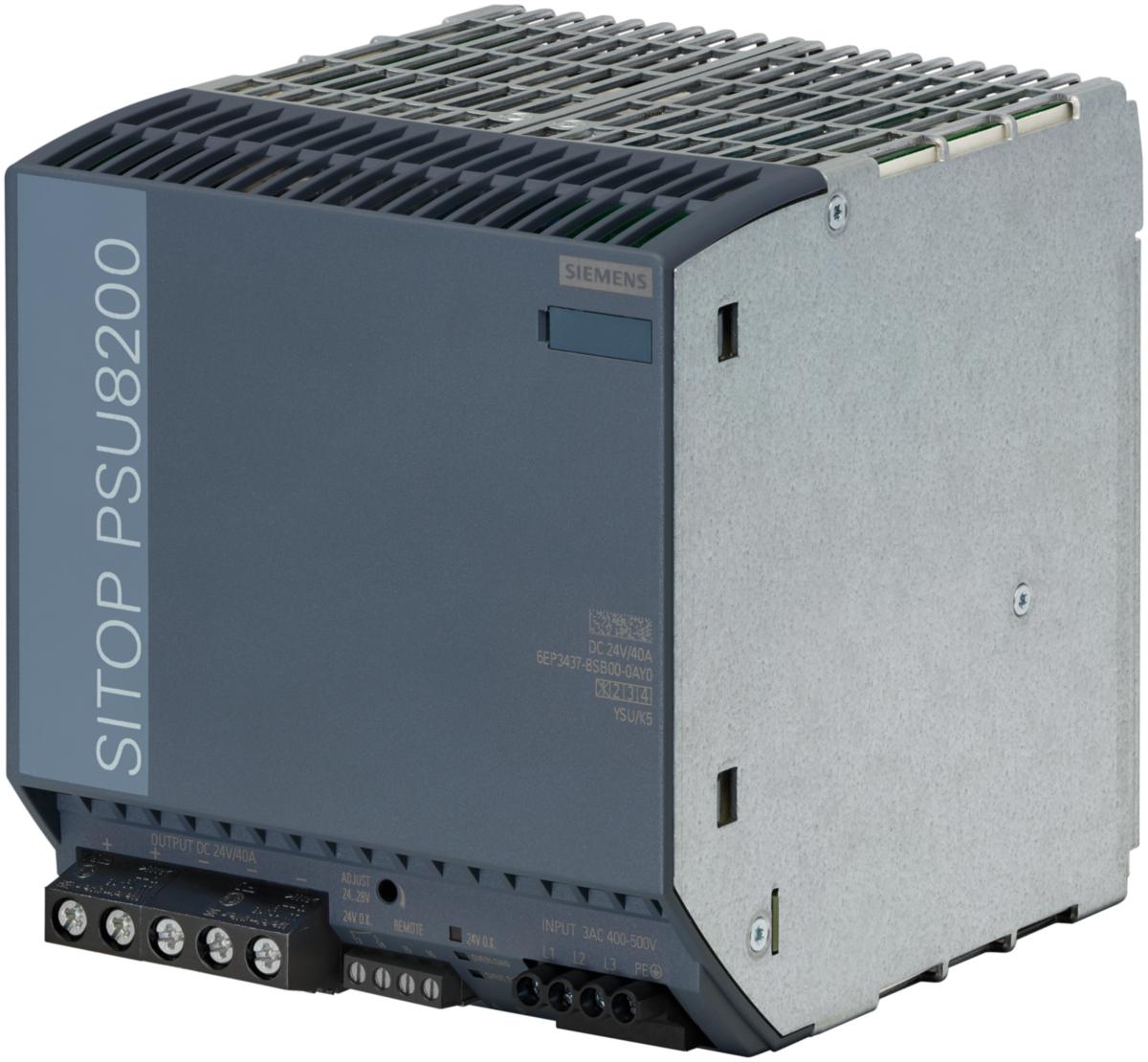

SITOP PSU8200 24 V/40 A 6EP3437-8SB00-0AY0
Article number: Suppl. article no:
5213359
6EP3437-8SB00-0AY0
to see price and stock
Primary switch with stabilised 24 V DC output voltage.
- Article number: 5213359
- Suppl. article no: 6EP3437-8SB00-0AY0
- Ean no: 4025515154891
- Material class QQ214B
Technical data
- 1st secondary output voltage: 24 V
- Nominal value output current 1: 40 A
- Max. output current 1: 40 A
- Secondary voltage adjustable: Yes
- Power output: 960 W
- Rated supply voltage AC 50 Hz: 400 V
- Width: 135 mm
- Short-circuit-proof: Yes
- Suitable for distribution board: Yes
- Degree of protection (IP): IP20
- Type of electric connection: Screw connection
- Voltage type (supply voltage): AC
- Height: 145 mm
- Depth: 150 mm
- Direct mounting possible: No
- Built-in height: 245 mm
- Rated supply voltage AC 60 Hz: 500 V
- Built-in width: 135 mm
- Nominal value output voltage 1: 24 V
- REACH Date: 2022-03-14
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
