Schneider Electric
Power supply assembly functional modules ABL8

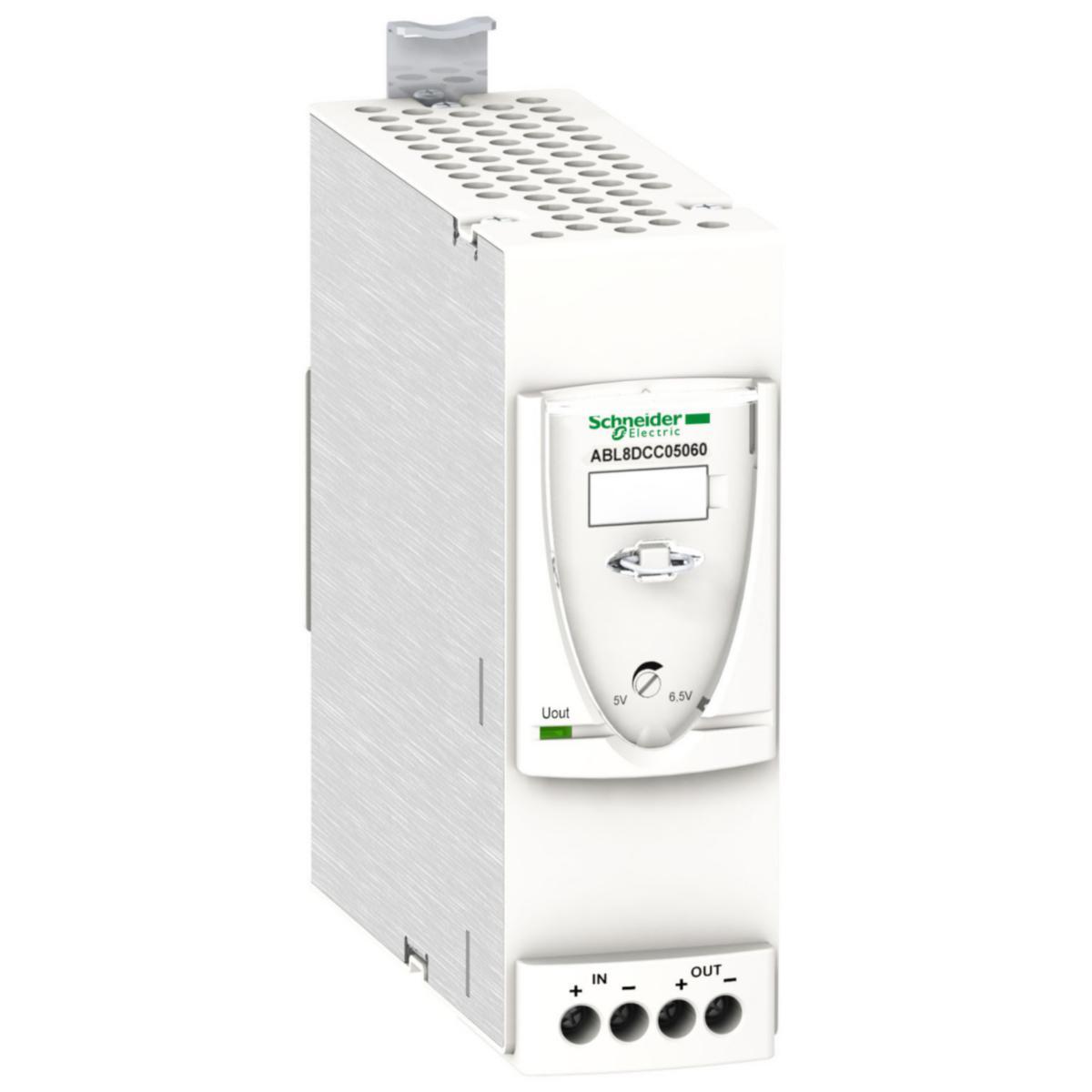

DC/DC MODULE ABL8DCC05060
Article number: Suppl. article no:
5200389
ABL8DCC05060
to see price and stock
Functional modules ABL8.
- Article number: 5200389
- Suppl. article no: ABL8DCC05060
- Ean no: 3389119406888
- Material class QQ213B
Technical data
- Packagin Size: 1 ST/11 ST
- Type: ABL8DCC05060
- 1st secondary output voltage: 5-6.5 V
- Nominal value output current 1: 6 A
- Max. output current 1: 6 A
- Secondary voltage adjustable: Yes
- Power output: 30 W
- Stabilized: Yes
- Rated supply voltage AC 50 Hz: 0 V
- Power consumption: 0 VA
- Rated supply voltage DC: 24-28.8 V
- Width: 44 mm
- Suitable for safety functions: Yes
- Short-circuit-proof: Yes
- Suitable for distribution board: Yes
- Performance level according to EN ISO 13849-1: None
- Degree of protection (IP): IP20
- Type of electric connection: Screw connection
- Max. output current 2: 0 A
- Max. output current 3: 0 A
- 2nd secondary output voltage: 0 V
- 3rd secondary output voltage: 0 V
- Voltage type (supply voltage): AC/DC
- Height: 143 mm
- Depth: 140 mm
- Width in number of modular spacings: 0
- Direct mounting possible: No
- Built-in height: 0 mm
- Rated supply voltage AC 60 Hz: 0 V
- SIL according to IEC 61508: None
- Suitable for rail mounting: Yes
- Built-in width: 0 mm
- Nominal value output voltage 1: 5 V
- Nominal value output voltage 2: 0 V
- Nominal value output voltage 3: 0 V
- Nominal value output current 2: 0 A
- Nominal value output current 3: 0 A
- Output voltage stabilized: Yes
- Wall mounting possible: No
- Product series: ABL8
- REACH Date: 2022-07-20
- Output voltage: 5 V DC
- REACH Information obligation: No
