AhlsellProductsElectricTelecoms, Data, Security 50-6350 Telecoms and Fibre opticFibre componentsFibre socket
Eurolan
Fiber box 4XSC + cabling 1XSC-SC APC
FIBERBOX 4XSC SC APC KIT
Article number: Suppl. article no:
5061004
16F-S1-1SCA-01A
to see price and stock

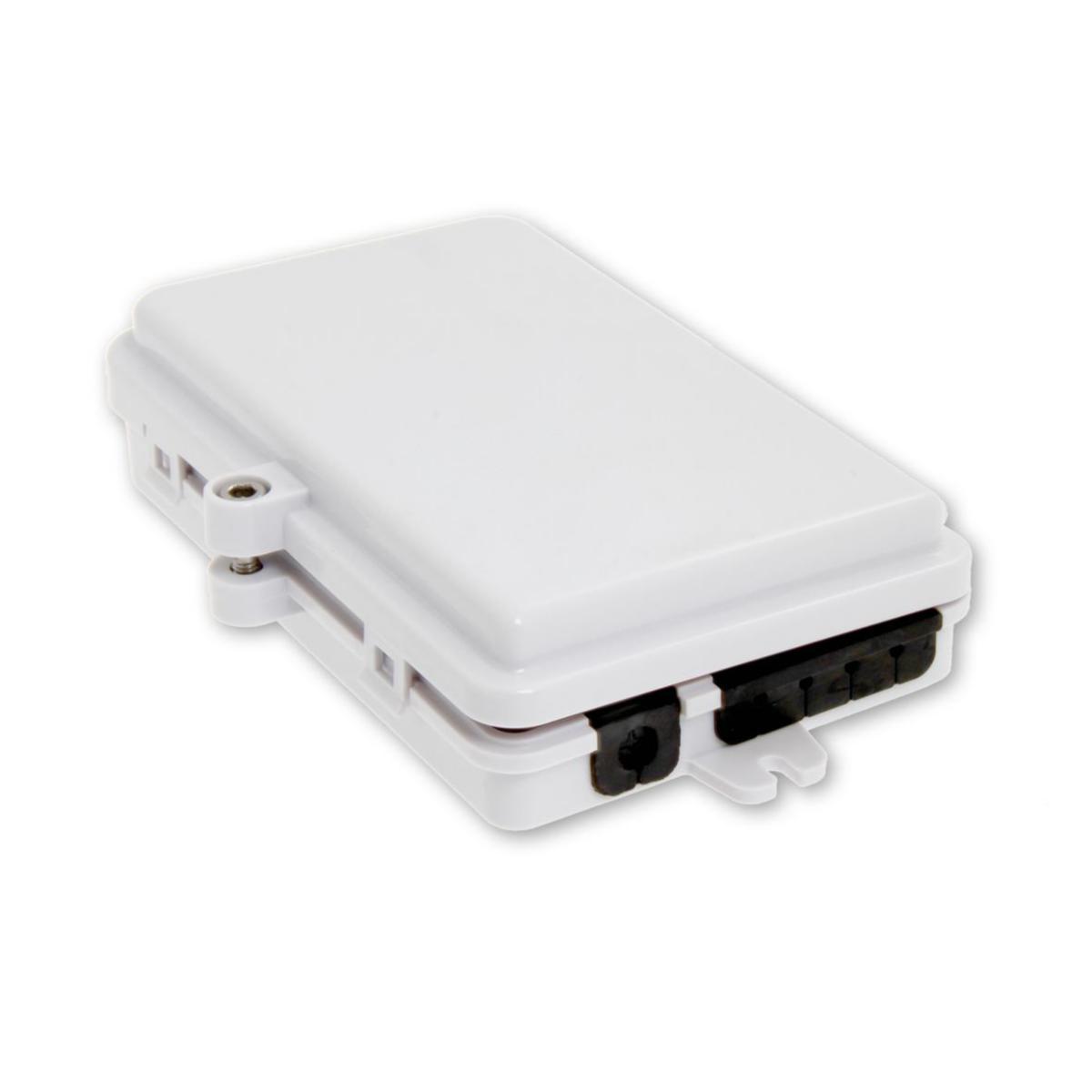

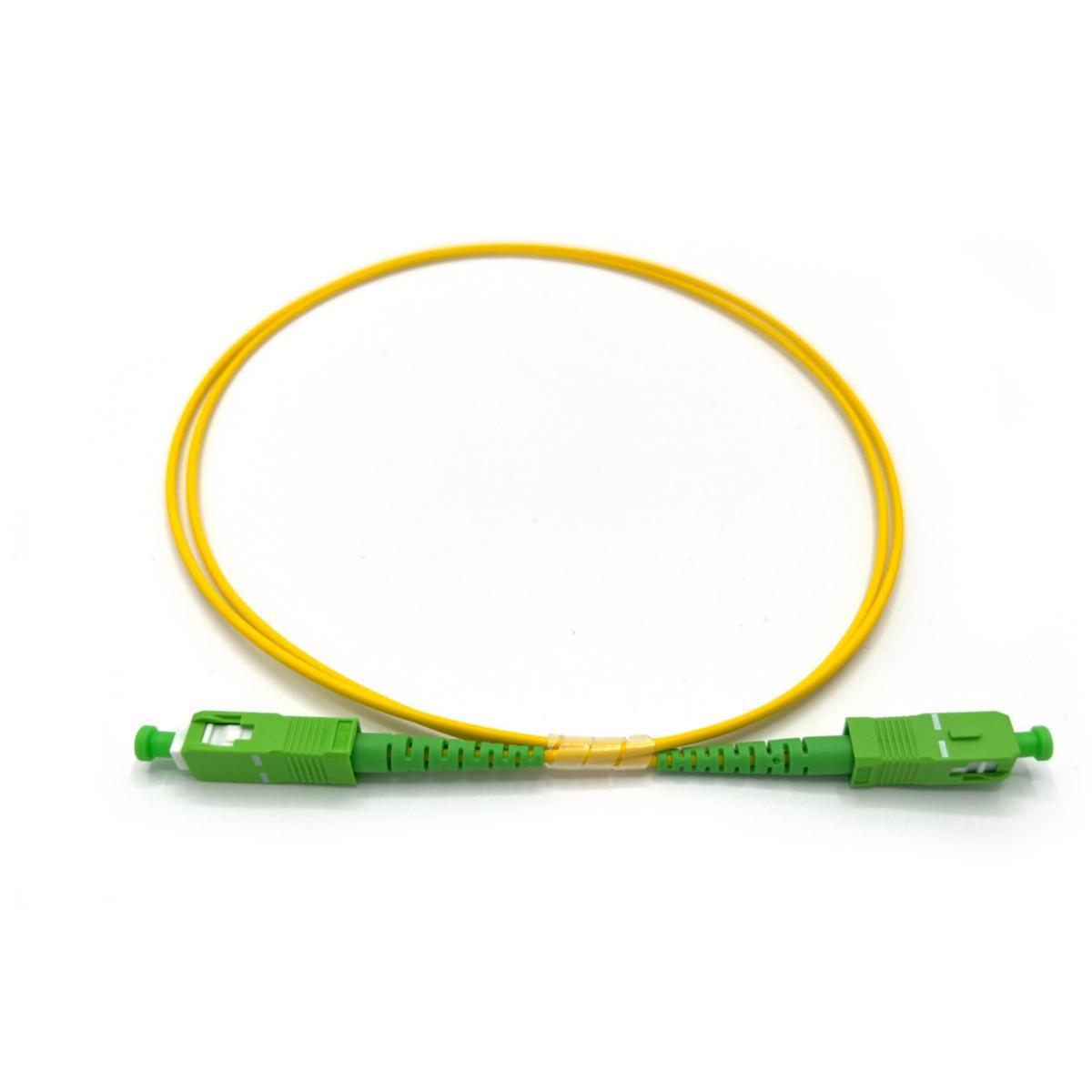

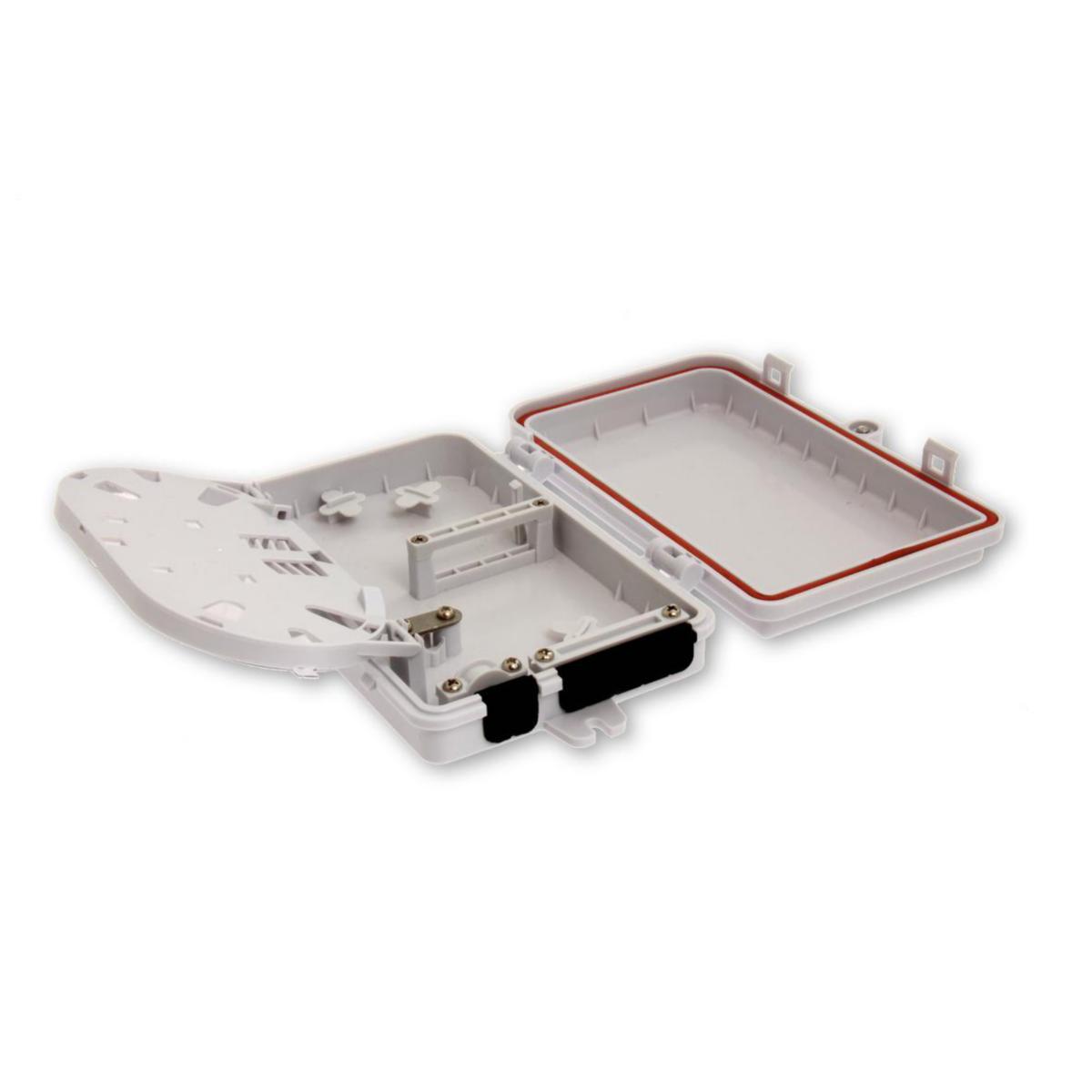

Assigning box for mounting outdoors on facade for FTTH installations. Space for 4 fibers (4x SC simplex). With splice cassette, protected sleeves and insect wrench for the lock. IP55. 1 pcs Fiberpatch singlemode 1xSC/APC-SC/APC 1.0m is included + 1 pcs SC/APC simplex adapter.
- Article number: 5061004
- Suppl. article no: 16F-S1-1SCA-01A
- Ean no: 7333089012996
- Material class QR3280
Technical data
- Packagin Size: 1 PCS/30 PCS
- Type: 16F-S1-1SCA-01A
- Type of connector: SC
- Number of buses/couplings: 1
- With label space: Yes
- Type of fastening: Screw
- Surface mounting: Yes
- Outlet direction: Straight
- Centre plate: No
- Dust protection cap: None
- Colour: Grey
- Floor box/subfloor mounted: No
- Duct installation: No
- With bus/coupling: Yes
- Wire stock: No
- Device width: 210 mm
- Device depth: 140 mm
- Device height: 40 mm
- Flush-mounted installation: No
- With cover frame: No
- With strain relief: Yes
- REACH Date: 2023-06-19
- REACH Information obligation: No
