Eurolan

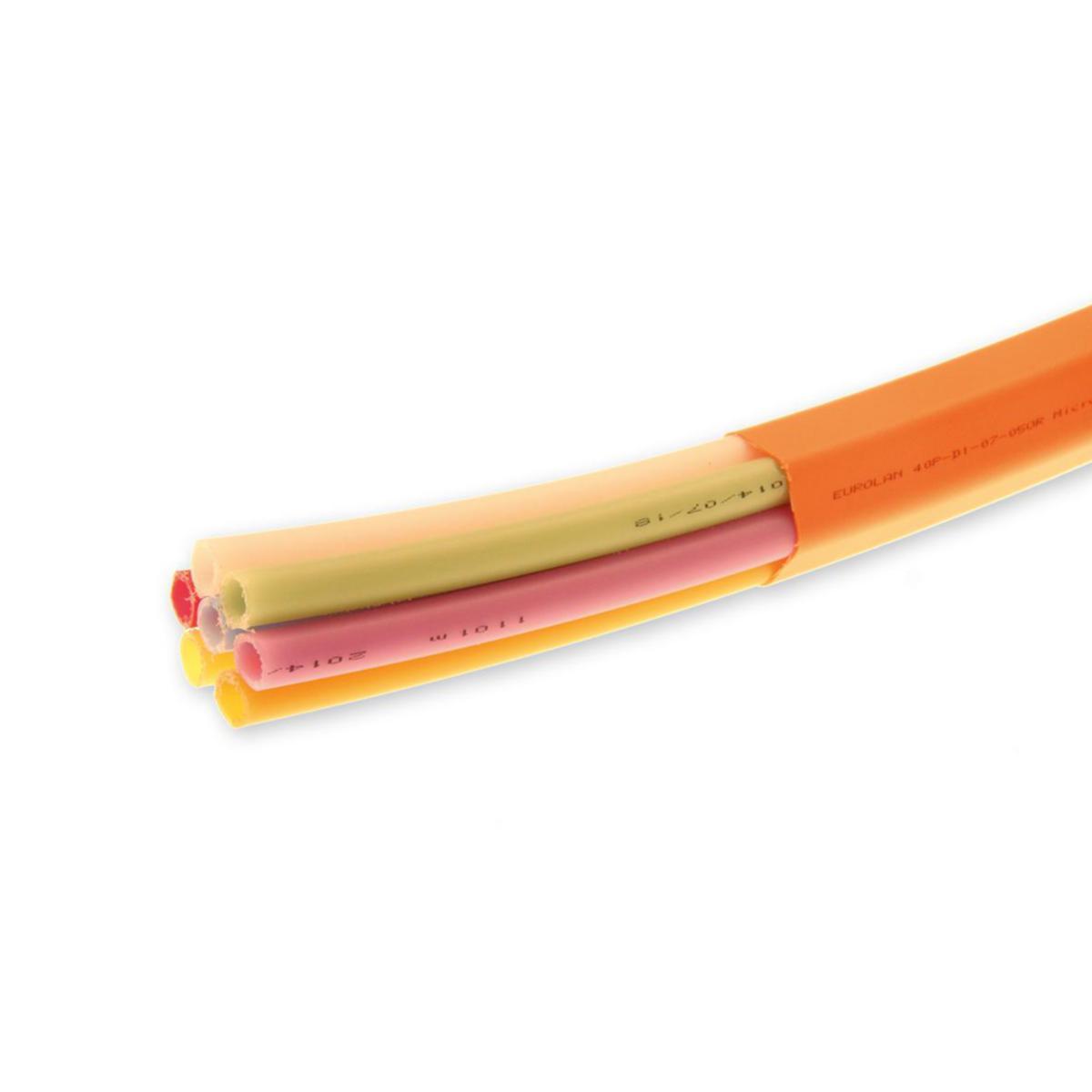

Microduct thick-walled DB 7/3.5
DUCT DB 1X7/3,5MM 39P-D1-01-05XX
Article number: Suppl. article no:
5044236
39P-D1-01-05XX
to see price and stock
Microtubes for direct placement in the ground. These are adapted for installation (blowing) of blown fiber and / or microcable
- Article number: 5044236
- Suppl. article no: 39P-D1-01-05XX
- Ean no: 7333089001990
- Material class QR5350
Technical data
- Packagin Size: 3000 M
- Type: 39P-D1-01-05OR-T3000
- Outer diameter: 7 mm
- Inner diameter: 3.5 mm
- Number of glass fibre ducts: 1
- Bundle diameter: 7 mm
- Colour outer sheath: Orange
- Suitable for: Outside
- Flame resistant: No
- Halogen free: No
- Armouring/reinforcement: None
- Metal-free: Yes
- Transparent: No
- Separable: No
- Watertight: Yes
- Max. internal pressure (permanently): 70 bar
- Max. internal pressure (momentarily): 70 bar
- Suitable for outdoor installation: Yes
- Suitable for underground installation: Yes
- REACH Date: 2024-10-17
- REACH Information obligation: No
