Gabocom

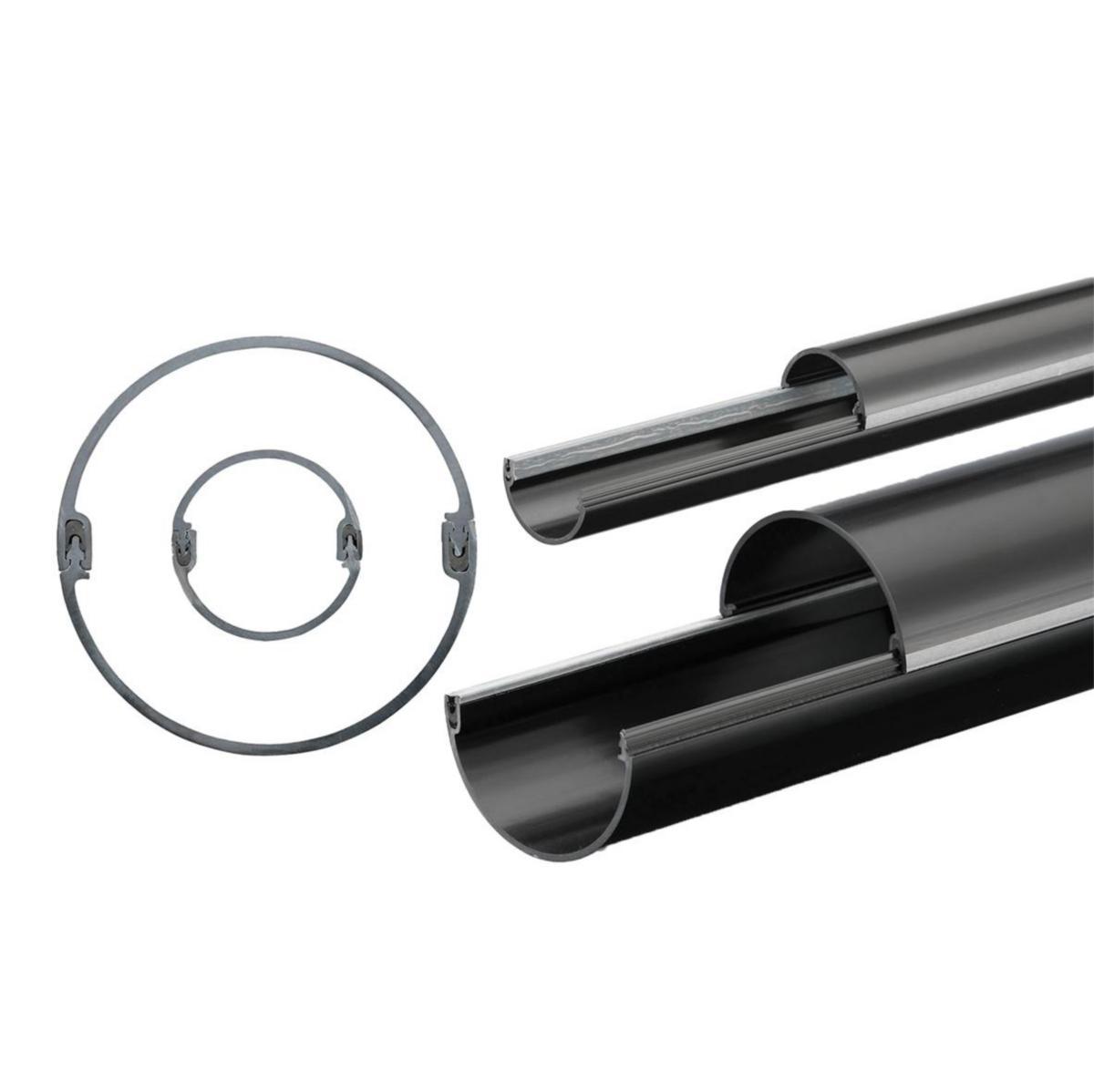

Splice Tube Divisible KKHR, Gabocom
KKHR 40 BK
Article number: Suppl. article no:
5045742
875-00001
to see price and stock
Divisible joint pipe gas and waterproof that can be laid directly in the ground. Tested up to 10 bar up to 30 min. It is advisable to use tool KKHRG to press these 2 halves together.
- Article number: 5045742
- Suppl. article no: 875-00001
- Material class QR5170
Technical data
- Type: KKHR 40 BK
- Outer diameter: 40 mm
- Inner diameter: 36 mm
- Colour outer sheath: Black
- Colour inner sheath: Black
- Suitable for: Outside
- Halogen free: No
- Armouring/reinforcement: None
- Metal-free: Yes
- Transparent: No
- Separable: Yes
- Gastight: Yes
- Watertight: Yes
- Max. internal pressure (permanently): 0.5 bar
- Max. internal pressure (momentarily): 10 bar
- Suitable for outdoor installation: No
- Suitable for underground installation: Yes
- Length: 2 m
- REACH Date: 2023-06-08
- REACH Information obligation: No
