AhlsellProductsElectricTelecoms, Data, Security 50-6350 Telecoms and Fibre opticFiber ducting and accessoriesStraight joint
Melbye

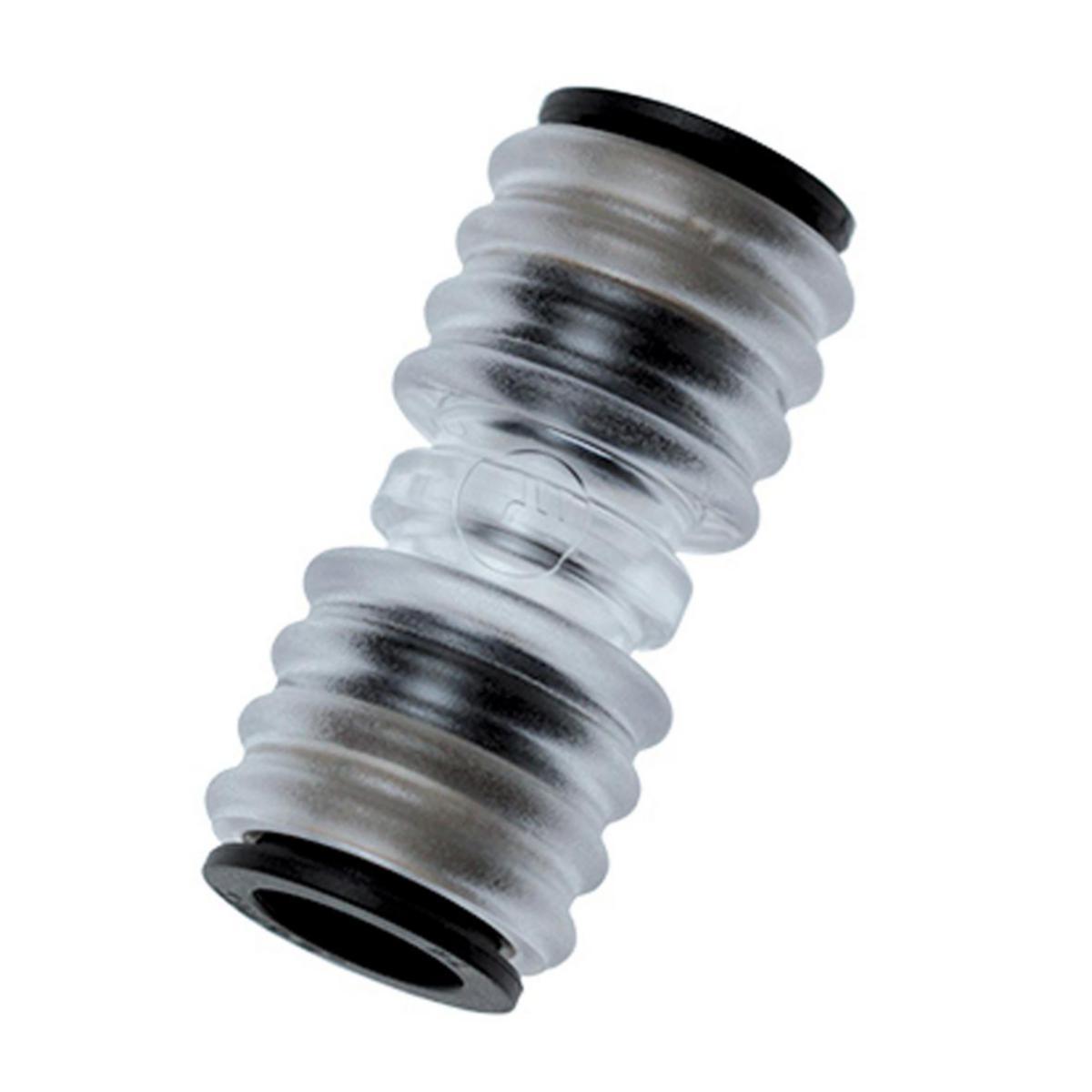

Union coupling for microtubes DB, Melbye
STRAIGHT CONNECTOR 16 MM DB
Article number:
5042432
to see price and stock
Joint coupling / quick coupling for microtubes. Withstands direct burial.
- IP rating: IP68
Temperature range: -20˚C to + 80˚C.
- Working pressure: Max 25 bar.
- Fire classification: UL94.
- Standard: ISO 14743 (quick couplings for thermoplastic pipes).
- Standard: NF EN 61386-24 (cable protection pipe for installation in the ground).
- IP rating: IP68
Temperature range: -20˚C to + 80˚C.
- Working pressure: Max 25 bar.
- Fire classification: UL94.
- Standard: ISO 14743 (quick couplings for thermoplastic pipes).
- Standard: NF EN 61386-24 (cable protection pipe for installation in the ground).
- Article number: 5042432
- Ean no: 7332811196898
- Material class QR522B
- This is an alternative to item 5044562
Technical data
- Packagin Size: 1 ST/100 ST/100 ST
- Model: Coupling
- Reducing: No
- Outer pipe diameter connection 1: 16 mm
- Outer pipe diameter connection 2: 16 mm
- Gastight: Yes
- REACH Date: 2021-12-13
- REACH Information obligation: No
