Eurolan
Micro-product fire-resistant according to IEC 60332-1

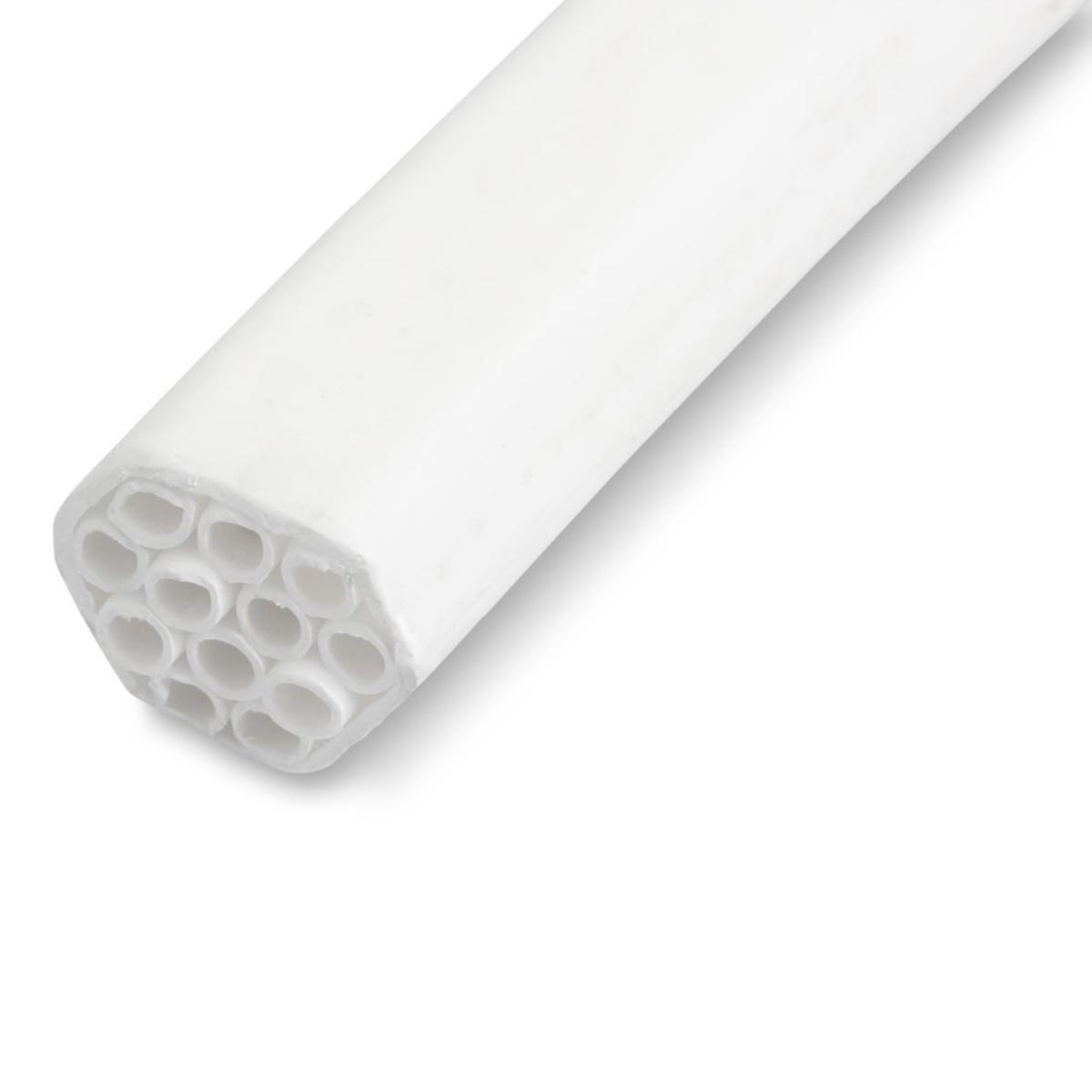

DUCT ID12 5/3,5 INDOOR LSZH
Article number: Suppl. article no:
5045940
39P-I1-12-23WT-0
to see price and stock
Eurolan indoor microducts for blown fiber installations in dimension 5 / 3.5. The microducts are fire rated according to IEC 60332-1. They are available in sizes 1, 4, 7, 12, 19, 24.
- Article number: 5045940
- Suppl. article no: 39P-I1-12-23WT-0
- Ean no: 7333089014549
- Material class QR5340
Technical data
- Type: 39P-I1-12-23WT-0
- Outer diameter: 5 mm
- Inner diameter: 3.5 mm
- Number of glass fibre ducts: 12
- Bundle diameter: 22.6 mm
- Colour outer sheath: White
- Colour inner sheath: White
- Suitable for: Inside
- Flame resistant: Yes
- Halogen free: Yes
- Armouring/reinforcement: None
- Metal-free: Yes
- Transparent: No
- Separable: Yes
- Watertight: Yes
- Max. internal pressure (permanently): 10 bar
- Max. internal pressure (momentarily): 10 bar
- Suitable for outdoor installation: No
- Suitable for underground installation: No
- REACH Date: 2024-10-01
- REACH Information obligation: No
