Enoc system

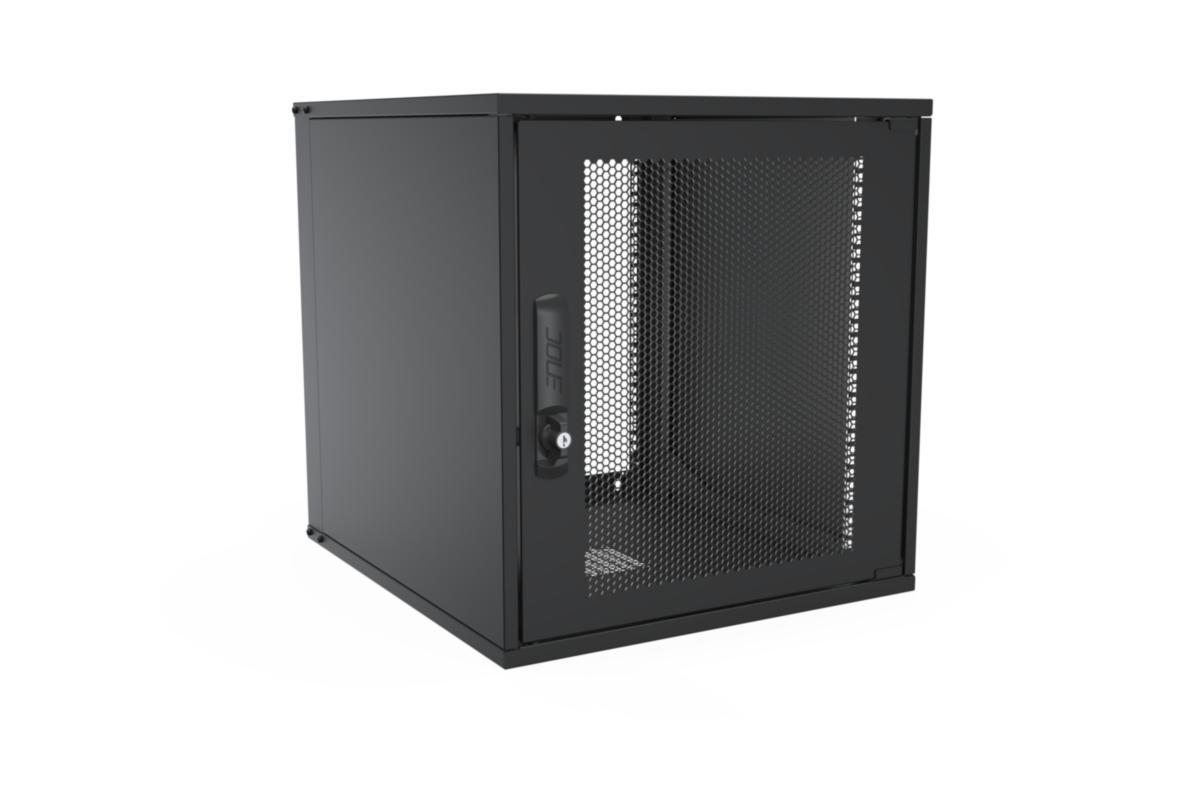

Basic W3 black wall cabinet
WALL ENCL. 19" W3 12-6-VD-S
Article number: Suppl. article no:
2504186
57518
to see price and stock
W3 is a wall cabinet series with a very good price / performance ratio. The cabinet's construction also provides very good accessibility and large mounting depths. The cabinet series is useful for passive components.
- Article number: 2504186
- Suppl. article no: 57518
- Ean no: 7330701104176
- Material class QM580B
Technical data
- Packagin Size: 1 PCS/6 PCS
- Type: W3 12-6-VD-S
- Width: 550 mm
- Depth: 600 mm
- Height: 585 mm
- Colour: Black
- RAL-number: 9005
- Number of height units: 12
- Modular spacing: 482.6 mm (19 inch)
- With roof plate: Yes
- With front door: Yes
- With sidewall: Yes
- Max. load capacity: 35 kg
- Mounting level: Front and rear
- Type of profile rail: L-shape
- Number of doors: 1
- Demountable: Yes
- With earthing: No
- Surface finishing: Powder coating
- Degree of protection (IP): IP20
- Material: Steel
- Model: With permanent frame
- Type of ventilation: Passive
- REACH Date: 2022-01-01
- REACH Information obligation: No
