Schneider Electric

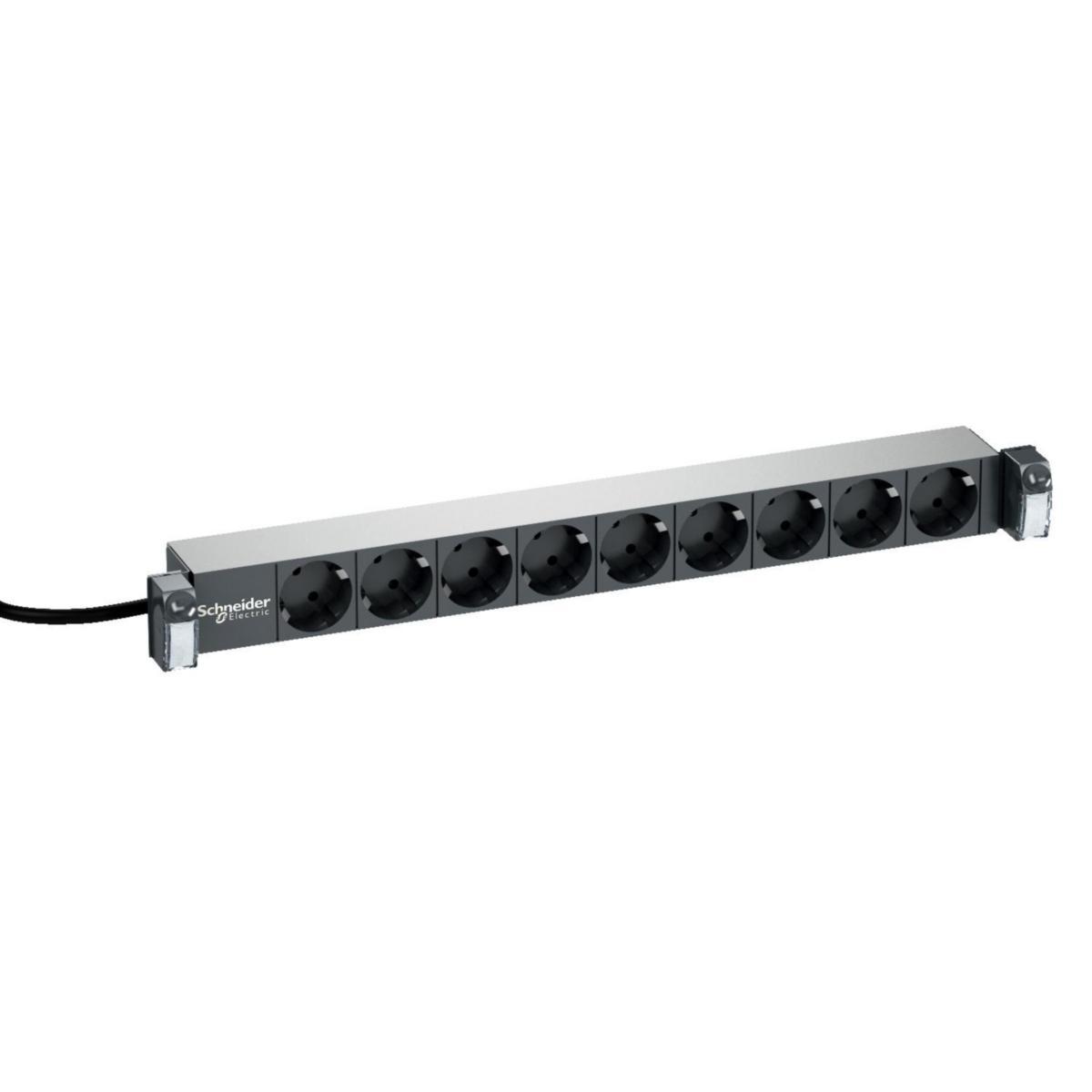

Power strip Lexcom with Quickconnect bracket, Schneider Electric
LEXC POWER PANEL 9X230V VDIG161931
Article number: Suppl. article no:
2598788
VDIG161931
to see price and stock
Power panel 230V, 16A for mounting in 19" cabinets. The panel is equipped with quick-release mountings that make it easy to release and pull out the panel without the need for tools. Supplied with labelling windows for identification in racks. For mounting in the Ericsson rack, accessory E 25 987 38 is required.
- Article number: 2598788
- Suppl. article no: VDIG161931
- Ean no: 3606485133973
- Material class QR3000
Technical data
- Packagin Size: 1 ST/11 ST/44 ST
- Number of socket outlets CEE 7/16 (EURO): 0
- Number of socket outlets with protective contact CEE 7/3 (type F): 9
- Number of USB connections: 0
- With on/off switch: No
- Overvoltage protection: No
- Nominal current: 16 A
- Colour: Other
- Residual current circuit breaker (RCCB): No
- Degree of protection (IP): IP20
- Length of power cord: 3 m
- Core cross section: 0 mm²
- Number of CEE socket outlets (IEC 60309): 0
- Number of cold device socket outlets: 0
- Number of NEMA-outlets: 0
- Number of universal multi standard sockets: 0
- Number of socket outlets with earth pin: 9
- Number of other socket outlets: 0
- Halogen free: Yes
- Housing shape: Rectangular
- Material: Metal
- Material quality: Aluminium
- With cover: No
- Mains filter: No
- RAL-number (similar): 7016
- Rotated central insert: No
- Transparent: No
- Angle rotated central insert: Other
- Surface protection: Other
- Number of socket outlets with protective contact CEE 7/5 (type E): 0
- Width: 490 mm
- Number of socket outlets Swiss standard type 23: 0
- Number of socket outlets Swiss standard type 15: 0
- Height: 45 mm
- Number of socket outlets Swiss standard type 13: 0
- Number of socket outlets British Standard BS 1363: 0
- Supply voltage: 230 V
- Number of socket outlets Italian standard type Bipasso: 0
- Number of socket outlets Italian standard type P11: 0
- Depth: 47 mm
- Number of phases: 2
- Number of miniature circuit breakers (MCB): 0
- Number of socket outlets Swiss standard type 25: 0
- REACH Date: 2025-07-18
- Length: 500 mm
- Number of height units: 1
- Number of RJ45 connections: 0
- Cable length: 3 m
- Number of C19 socket outlets: 0
- Number of socket outlets Italian standard type P17: 0
- Number of C13 socket outlets: 0
- Number of C20 socket outlets: 0
- Mounting direction: Horizontal
- Overvoltage category: 2
- With fuse: No
- With mounting material: Yes
- Switchable: No
- With display: No
- Evaluation: Local
- Electrical connection: Connection cable with plug
- Mounting dimension (standardised): 482.6 mm (19 inch)
- Control function: No
- REACH Information obligation: No
- With meter: No
- Temperature measurement: No
- SNMP: No
- With LED indication: No
- Ampere meter: No
- Type of electric connection: Plug with protective contact CEE 7/4 (type F)
- With surge protection module: No
