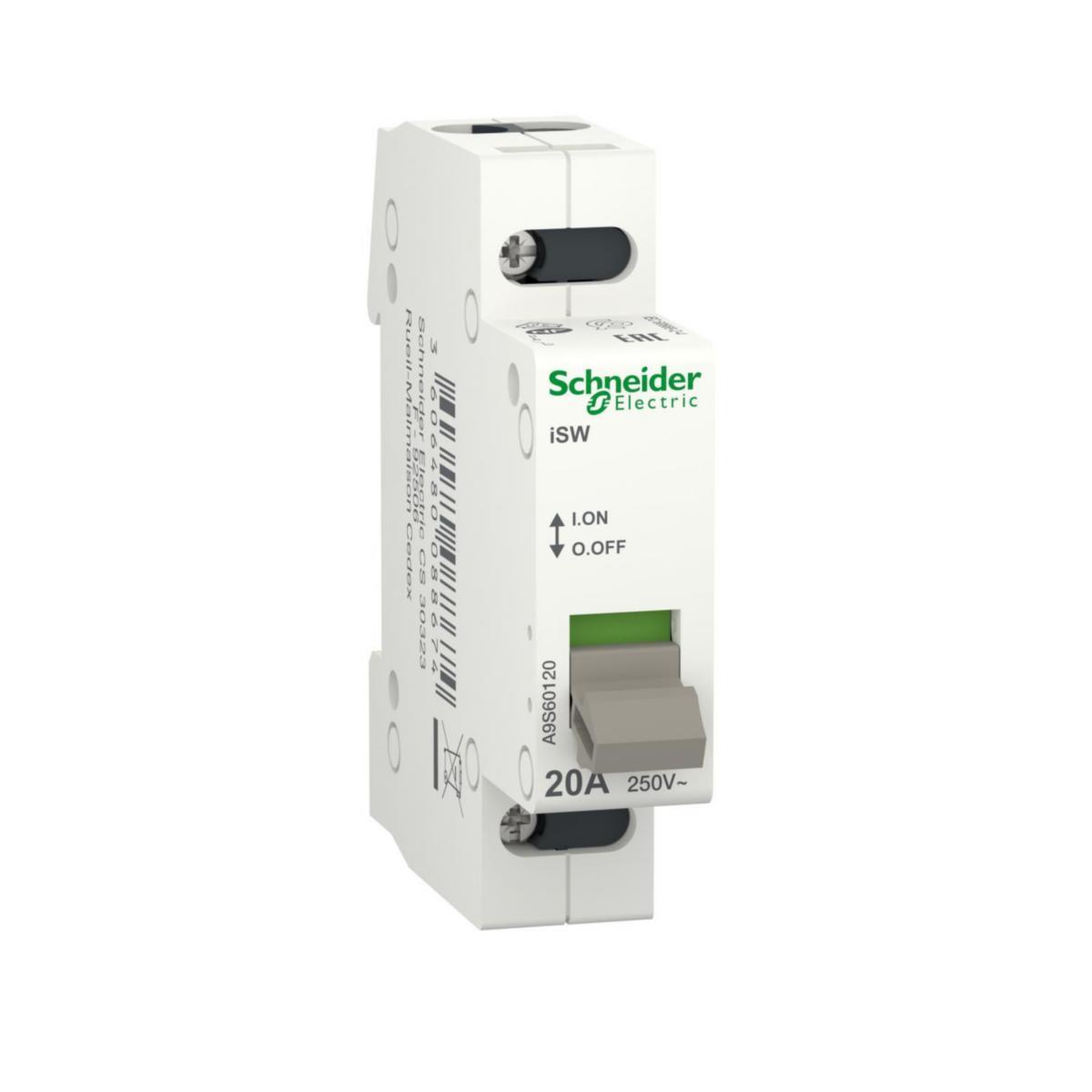

Switch iSW
ISW SWITCH 1P 20A 250V A9S60120
Article number: Suppl. article no:
2112455
A9S60120
to see price and stock
Switch is available in 1-4 pole versions from 20A up to 125A. They are also available with signal lamp in 1 and 2 pole versions 20 or 32A. 40-125A meets SSEN 60947-3 and has safe disconnection and contact indicator. Operating category: AC22A
- Article number: 2112455
- Suppl. article no: A9S60120
- Ean no: 3606480088674
- Replaces art.nbr: 2114851
- Material class QL540A
Technical data
- Packagin Size: 1 PCS/12 PCS/144 PCS
- Type: A9S60120
- Design: 1P 20A
- Switching function: Off switch
- Number of poles: 1
- Rated current: 20 A
- Width in number of modular spacings: 1
- Number of contacts as normally open contact: 1
- Number of contacts as change-over contact: 0
- Number of contacts as normally closed contact: 0
- Rated voltage: 250 V
- Voltage type: AC
- Short-circuit breaking capacity (Icw): 0 kA
- Max. lamp power: 0 W
- With signal lamp: No
- Min. rated voltage: 250 V
- Rated switching capacity: 0 kA
- Degree of protection (IP): IP20
- Colour calotte: Grey
- Product series: Acti 9
- Imprint/indication: Other
- Forced segregation according to DIN VDE 0113: Yes
- REACH Date: 2025-07-18
- Built-in depth: 75.5 mm
- REACH contains candidate substances: 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)
- GWP-tot (A1-A3): 0,3726 kgCO2e/ST
- REACH Information obligation: Yes
