Schneider Electric

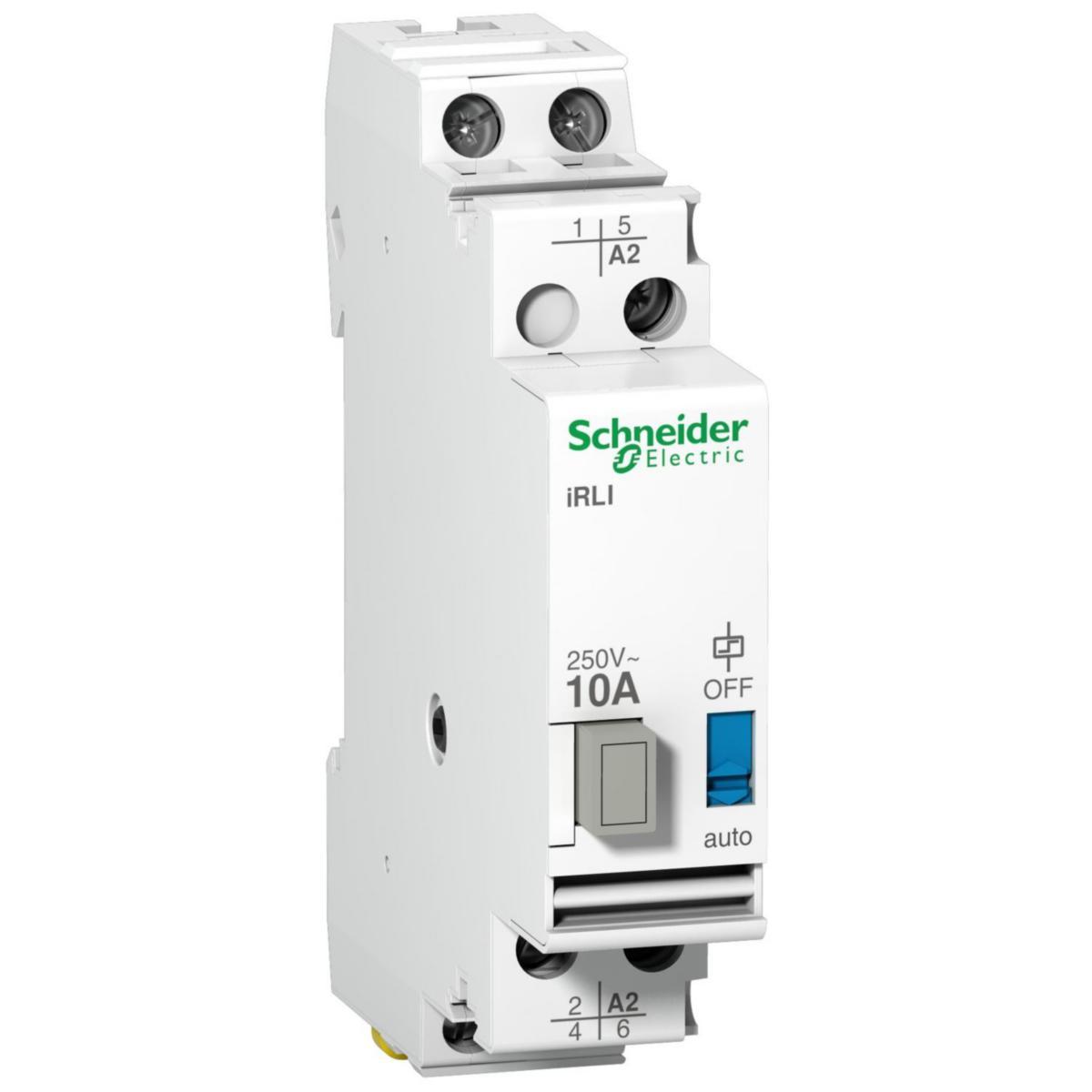

Operating current relays iRLI/iERLI
C-O RELAY IRLI 10A 2P 240V A9E15535
Article number: Suppl. article no:
4001079
A9E15535
to see price and stock
Is intended for connection and disconnection of resistive circuits.
Power circuit:
Rated voltage: 230/240V AC
Rated current: 10A at cosþ = 1
Control circuit:
Rated voltage: 12 to 240V AC
Spool power: 4VA
Connectable area: 6mm.
Add-on panel in order to obtain 2-3 pole version
Power circuit:
Rated voltage: 230/240V AC
Rated current: 10A at cosþ = 1
Control circuit:
Rated voltage: 12 to 240V AC
Spool power: 4VA
Connectable area: 6mm.
Add-on panel in order to obtain 2-3 pole version
- Article number: 4001079
- Suppl. article no: A9E15535
- Ean no: 3606480377310
- Material class QL540A
Technical data
- Packagin Size: 1 ST/12 ST/144 ST
- Type: A9E15535
- Width in number of modular spacings: 1
- Number of contacts as normally open contact: 1
- Number of contacts as change-over contact: 1
- Number of contacts as normally closed contact: 0
- Rated current: 10 A
- Control voltage 1: 230-240 V
- Frequency control voltage 1: 50-60 Hz
- Function: Mechanical
- Supply voltage: 230 V
- Max. incandescent lamp load: 2300 W
- Mounting method: DIN rail
- Voltage type (supply voltage): AC
- Type of control voltage 1: AC
- Built-in depth: 65.5 mm
- REACH Date: 2025-07-18
- REACH contains candidate substances: Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
- Information: Contact type: NO + AC
- Number of contacts: 1+1
- Design: Operating current
- REACH Information obligation: Yes
