Standard contactors GC AC controlled

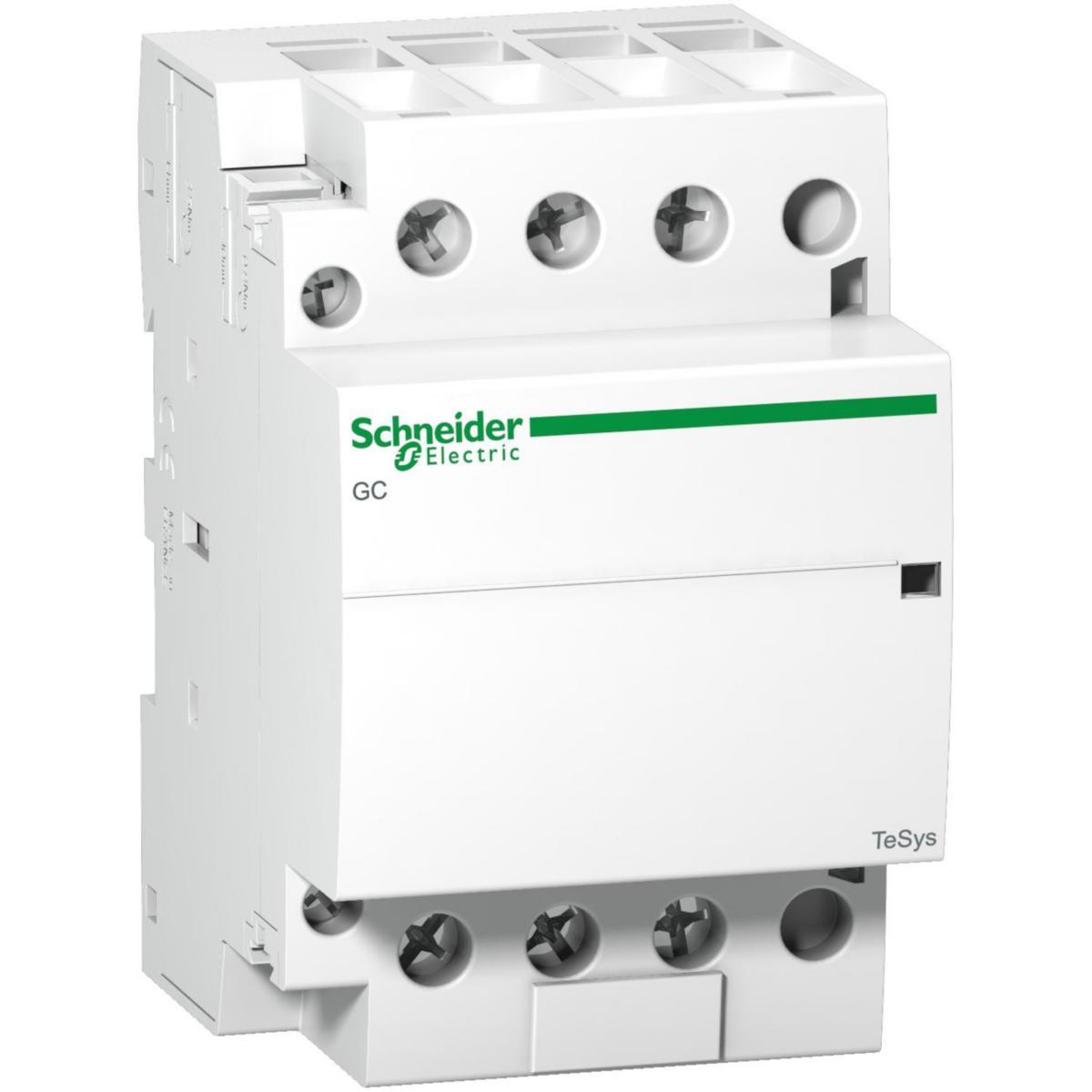

Contactor 40A 3NO 220..240V GC4030M5
Article number: Suppl. article no:
3231924
GC4030M5
to see price and stock
Hum-free standard contactor for snap fastening on 35 mm rail. Control voltage, 220/240 V 50 Hz (coil M5)
- Article number: 3231924
- Suppl. article no: GC4030M5
- Ean no: 3389110641714
- Material class QO360B
Technical data
- Packagin Size: 1 ST/32 ST
- Type: GC4030M5
- Number of contacts as normally open contact: 3
- Number of contacts as normally closed contact: 0
- Rated excitation voltage: 220-240 V
- Rated operation current: 40 A
- Rated operating voltage: 0-415 V
- Voltage type (excitation voltage): AC
- Voltage type (operating voltage): AC
- Max. load fluorescent lamp: 2200 VA
- Max. load fluorescent lamp (Duo circuit): 1800 VA
- Max. load fluorescent lamp (parallel compensated): 1600 VA
- Max. incandescent lamp load: 5100 W
- Slider for hand switch: No
- Degree of protection (IP): IP20
- Additional equipment possible: Yes
- Width in number of modular spacings: 54
- Hum-free: Yes
- With day/night function: Yes
- Utilization category according to EN IEC 60947-4-1: AC-7a
- Built-in depth: 62.5 mm
- REACH Date: 2025-07-18
- REACH contains candidate substances: Triphenyl phosphate
- Utility category: 7
- REACH Information obligation: Yes
