Standard contactors ESB

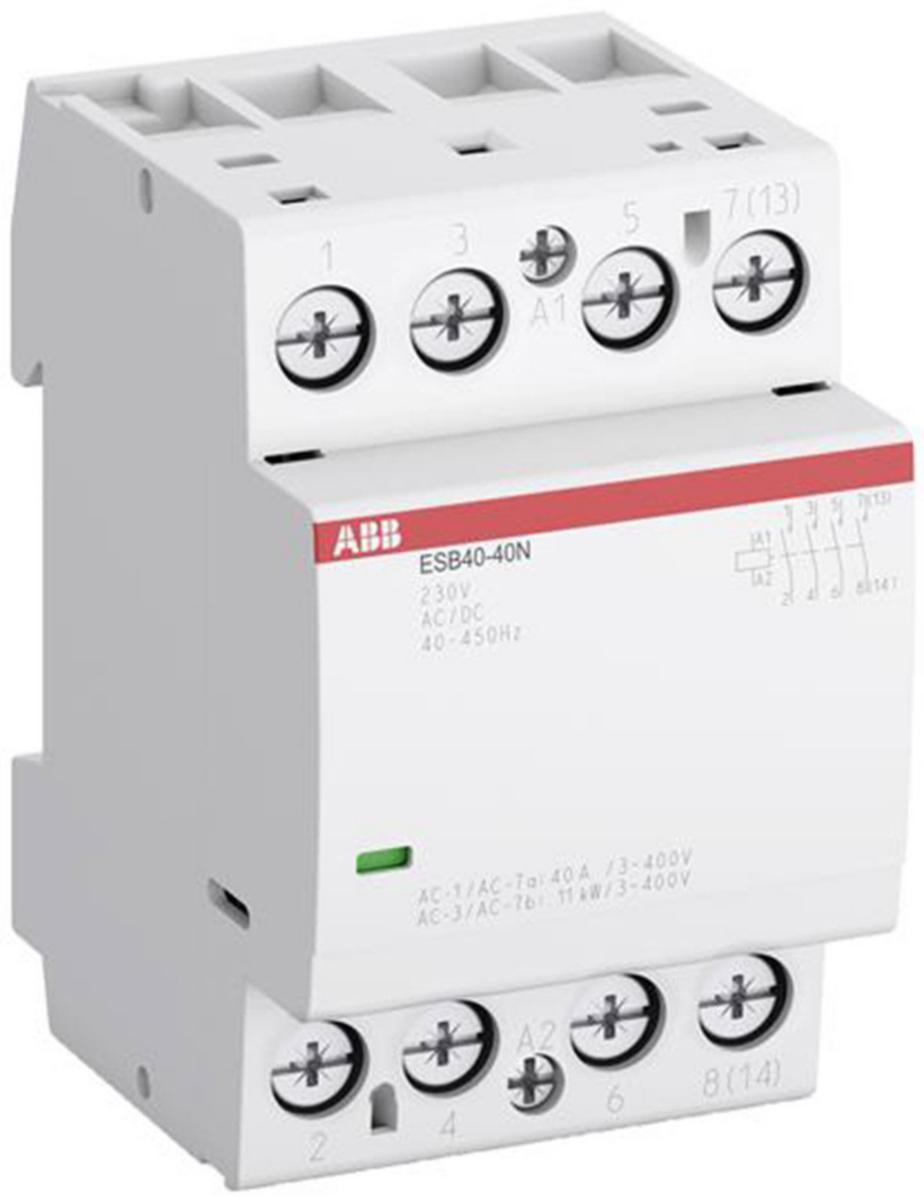

ESB40-40N-06 INST. CONTACTOR ESB40-40N-06
Article number: Suppl. article no:
3210571
1SAE341111R0640
to see price and stock
ABB's hum-free standard contactors are available from 16 A up to 100 A. They are often used for controlling lighting, heating and ventilation, as well as small motors and pumps. The auxiliary contact blocks fit the entire series. There is a wide range of coil sizes and different main contact combinations. With an innovative combined AC / DC design on the coil, with both automatic and manual models, as well as tool-free accessories, ABB's standard contactors are a perfect choice - not least in sound-sensitive environments.
- Article number: 3210571
- Suppl. article no: 1SAE341111R0640
- Ean no: 4013614518515
- Material class QL3300
Technical data
- Number of contacts as normally open contact: 4
- Number of contacts as normally closed contact: 0
- Rated excitation voltage: 230 V
- Rated operation current: 40 A
- Rated operating voltage: 220-400 V
- Voltage type (excitation voltage): AC/DC
- Voltage type (operating voltage): AC/DC
- Slider for hand switch: No
- Degree of protection (IP): IP20
- Additional equipment possible: Yes
- Width in number of modular spacings: 3
- Hum-free: Yes
- With day/night function: No
- Built-in depth: 58 mm
- Utility category: 7
- REACH Date: 2022-01-18
- REACH Information obligation: No
