Garo

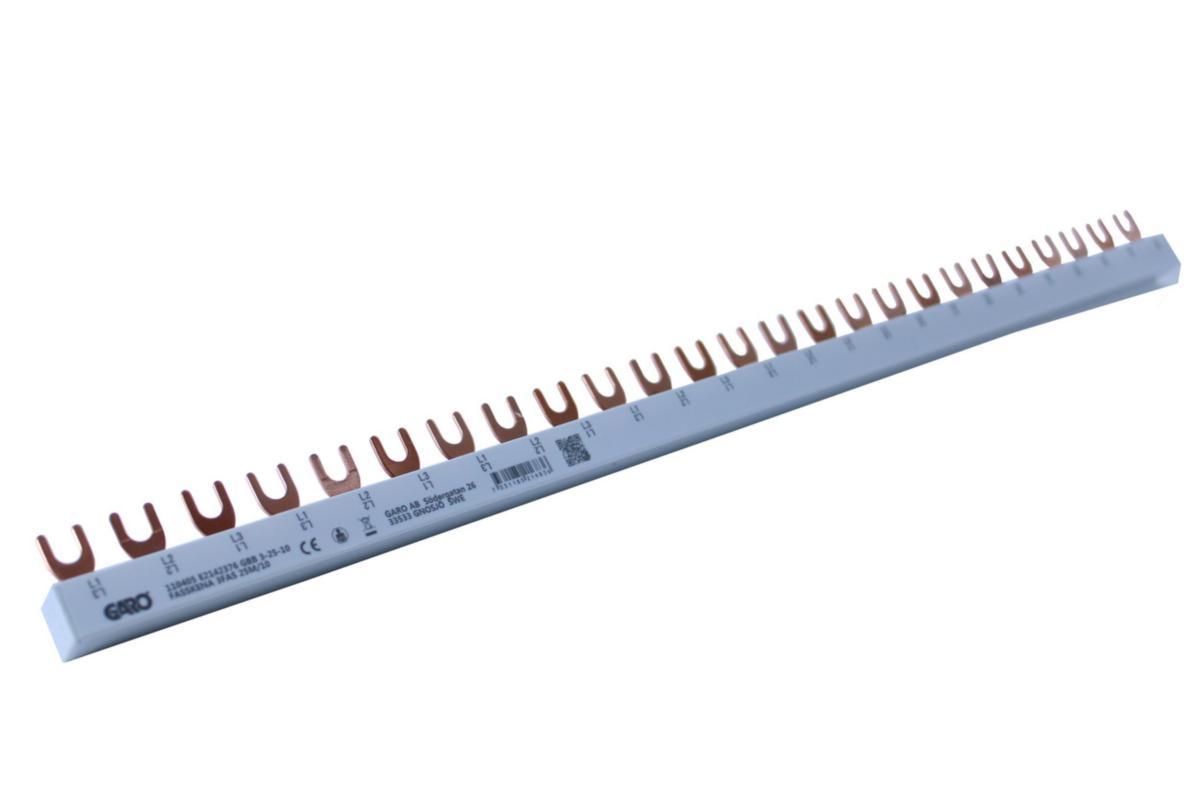

Phase rail GBB
BUSBARS 3P 25M/10 110405
Article number: Suppl. article no:
2142376
110405
to see price and stock
Phase rails 1-phase and 3-phase to be used for miniature circuit breakers, earth fault circuit breakers and personal protective circuit breakers. All phase rails, except for 57 modules, are supplied with end protection.
- Article number: 2142376
- Suppl. article no: 110405
- Ean no: 7331185216836
- Material class QL400A
Technical data
- Packagin Size: 1 PCS/5 PCS/60 PCS
- Number of phases: 3
- Number of poles: 3
- Width in number of modular spacings: 25
- Cross section: 10 mm²
- Rated permanent current Iu: 63 A
- Max. rated operation voltage Ue: 400 V
- Type of electric connection: Fork
- Length: 445 mm
- Suitable for number of devices: 8
- Suitable for devices with N-conductor: No
- Suitable for devices with auxiliary switch: No
- Rated short-time withstand current lcw: 0 kA
- Rated surge voltage: 0 kV
- Module width: 18 mm
- Insulated: Yes
- Colour: Grey
- Conditioned rated short-circuit current Iq: 0 kA
- REACH Date: 2021-06-15
- REACH Information obligation: No
