Eaton
Phase rails EVG

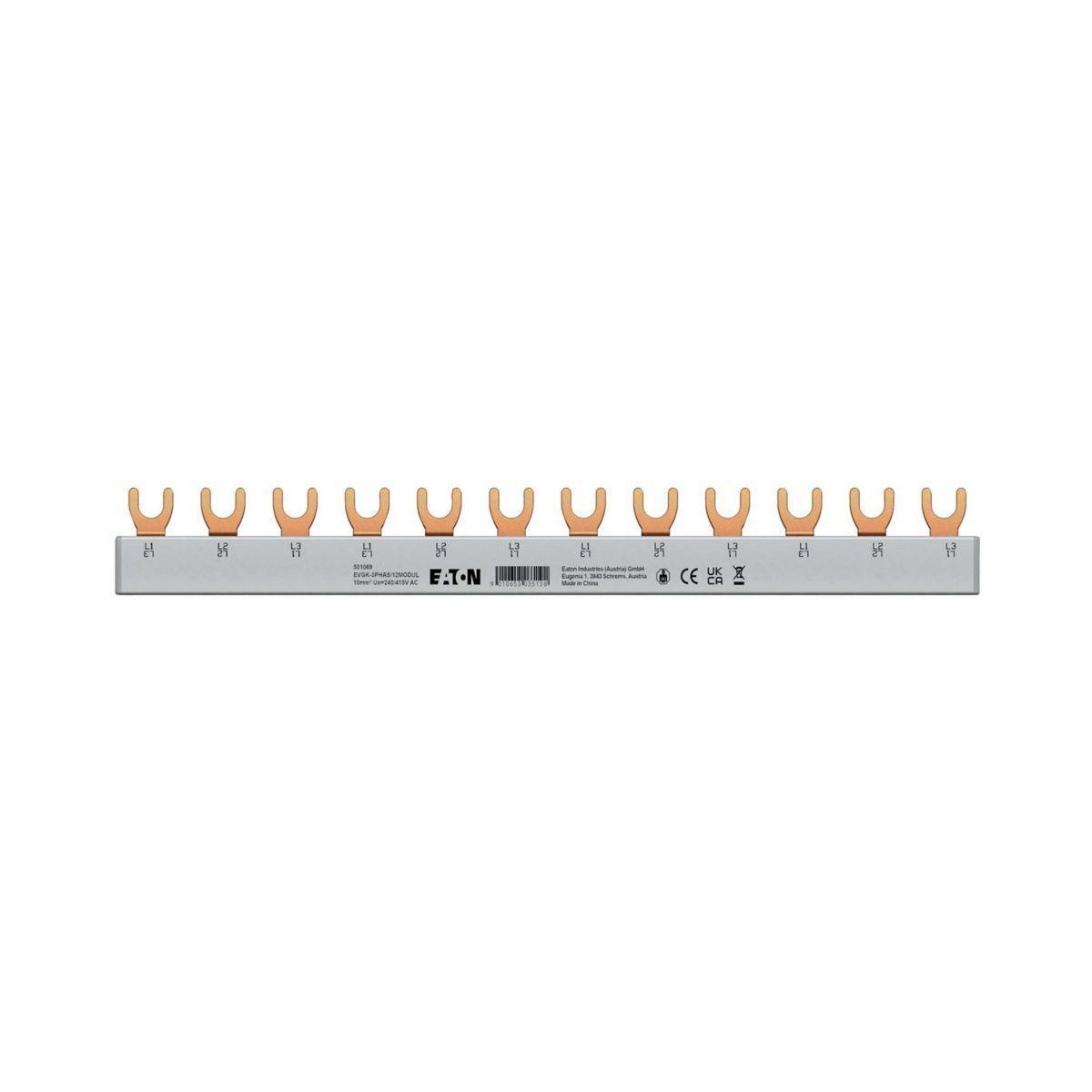

Fasskena 3-fas 12 modul EVGK-3PHAS/12MODUL
Article number: Suppl. article no:
2141008
Y7-501069
to see price and stock
Phase rails EVG 2 and 3 phase
- Article number: 2141008
- Suppl. article no: Y7-501069
- Ean no: 9010653035138
- Material class QL4700
Technical data
- Packagin Size: 1 PCS/20 PCS
- Type: EVGK-3PHAS/12MODUL
- Number of phases: 3
- Number of poles: 3
- Width in number of modular spacings: 12
- Cross section: 10 mm²
- Rated permanent current Iu: 63 A
- Max. rated operation voltage Ue: 500 V
- Type of electric connection: Fork
- Length: 210 mm
- Suitable for number of devices: 12
- Suitable for devices with N-conductor: No
- Suitable for devices with auxiliary switch: No
- Rated short-time withstand current lcw: 0 kA
- Rated surge voltage: 4 kV
- Module width: 0 mm
- Insulated: Yes
- Colour: Other
- Conditioned rated short-circuit current Iq: 25 kA
- REACH Date: 2023-03-09
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
