Schneider Electric

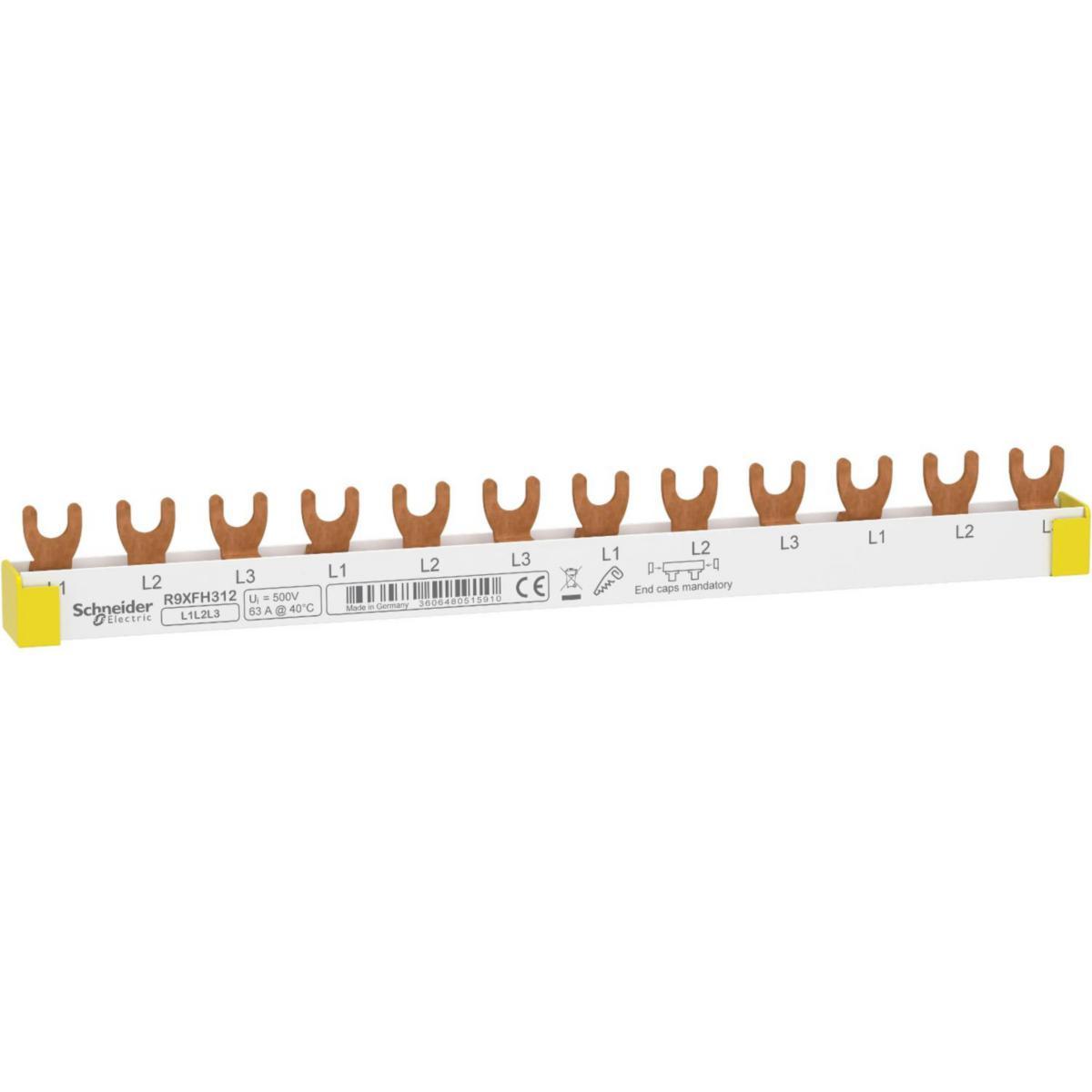

Phase rail Resi9
COMB BUSBAR 3P 12 MODULES R9XFH312
Article number: Suppl. article no:
2112673
R9XFH312
to see price and stock
Used to facilitate the connection of miniature switches on the input side. The phase rails for miniature circuit breakers are of the fork type and are available in 3-pole design, different lengths, Rated current 63A
- Article number: 2112673
- Suppl. article no: R9XFH312
- Ean no: 3606480515910
- Material class QL5500
Technical data
- Packagin Size: 1 ST/5 ST/195 ST
- Type: R9XFH312
- Product series: Resi9
- Number of phases: 3
- Number of poles: 3
- Width in number of modular spacings: 12
- Cross section: 10 mm²
- Rated permanent current Iu: 63 A
- Max. rated operation voltage Ue: 400 V
- Type of electric connection: Fork
- Length: 220 mm
- Suitable for number of devices: 4
- Suitable for devices with N-conductor: No
- Suitable for devices with auxiliary switch: No
- Module width: 18 mm
- Insulated: Yes
- Colour: White
- Can be cut to size: Yes
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
