Hager

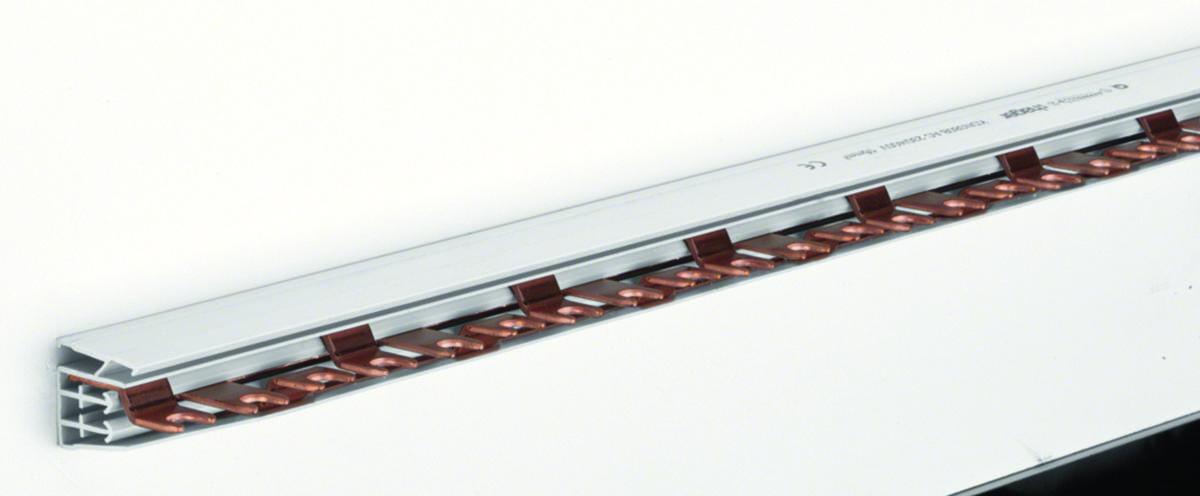

Phase rail 3-pole KDN
INSULATED BUSBAR 3P FORK 16MM² KDN380B
Article number: Suppl. article no:
2108590
KDN380B
to see price and stock
Suitable for both QuickConnect automatic systems and those with screw connectors. Suitable for miniature circuit breakers, earth fault breaker and surge protectors.
The phase rail should be cut, not sawed, and must be fitted with an end piece.
The phase rail should be cut, not sawed, and must be fitted with an end piece.
- Article number: 2108590
- Suppl. article no: KDN380B
- Ean no: 3250613741044
- Material class QL2400
Technical data
- Packagin Size: 1 ST/10 ST/800 ST
- Type: KDN380B
- Number of phases: 3
- Number of poles: 3
- Width in number of modular spacings: 57
- Cross section: 16 mm²
- Rated permanent current Iu: 80 A
- Max. rated operation voltage Ue: 400 V
- Type of electric connection: Fork
- Length: 1000 mm
- Suitable for number of devices: 19
- Suitable for devices with N-conductor: No
- Suitable for devices with auxiliary switch: No
- Rated surge voltage: 4.5 kV
- Module width: 17.5 mm
- Insulated: Yes
- Colour: Grey
- Can be cut to size: Yes
- REACH Date: 2021-06-16
- Article number supplier: KDN380B
- REACH Information obligation: No
