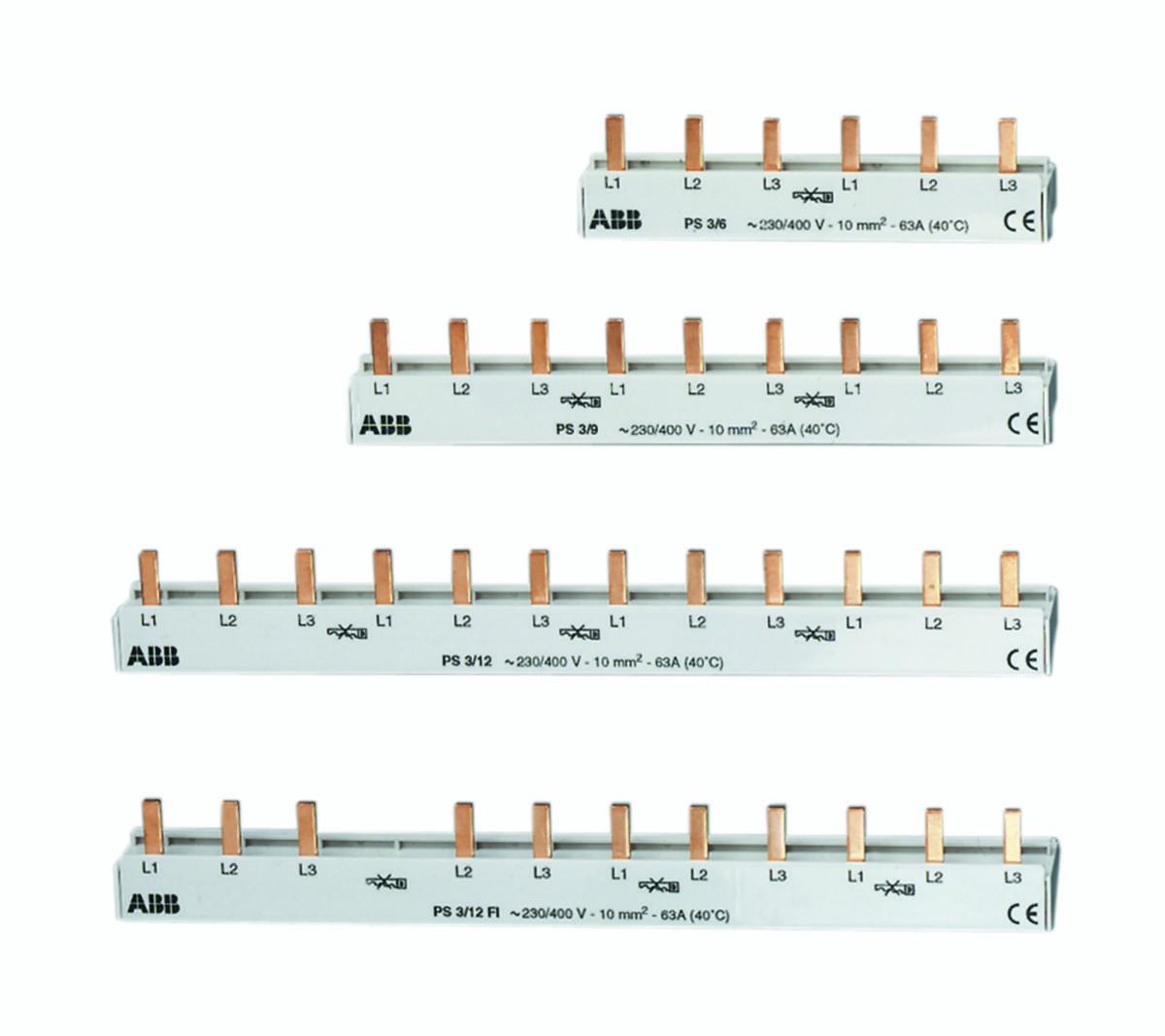

Phase rail Type PS
PS3/9 BUSBAR BUSBAR 3P 9M PS3/9
Article number: Suppl. article no:
2102714
2CDL231001R1009
to see price and stock
ABB's busbar system enables safe and fast connection of miniature circuit breakers, earth leakage circuit breakers and personal protection switches. Available in fixed as well as cuttable lengths with many accessories such as touch guards, end guards and feeding terminals.* =Busbar adapted for auxiliary / signal contact
- Article number: 2102714
- Suppl. article no: 2CDL231001R1009
- Ean no: 4016779463508
- Material class QL3300
Technical data
- Type: PS 3/9
- Number of phases: 3
- Number of poles: 9
- Width in number of modular spacings: 9
- Cross section: 10 mm²
- Rated permanent current Iu: 63 A
- Max. rated operation voltage Ue: 690 V
- Type of electric connection: Pin
- Length: 158 mm
- Suitable for number of devices: 3
- Suitable for devices with N-conductor: No
- Suitable for devices with auxiliary switch: No
- Rated short-time withstand current lcw: 25 kA
- Rated surge voltage: 4 kV
- Module width: 44698 mm
- Insulated: Yes
- Colour: Grey
- Conditioned rated short-circuit current Iq: 25 kA
- REACH Date: 2022-01-17
- REACH Information obligation: No
