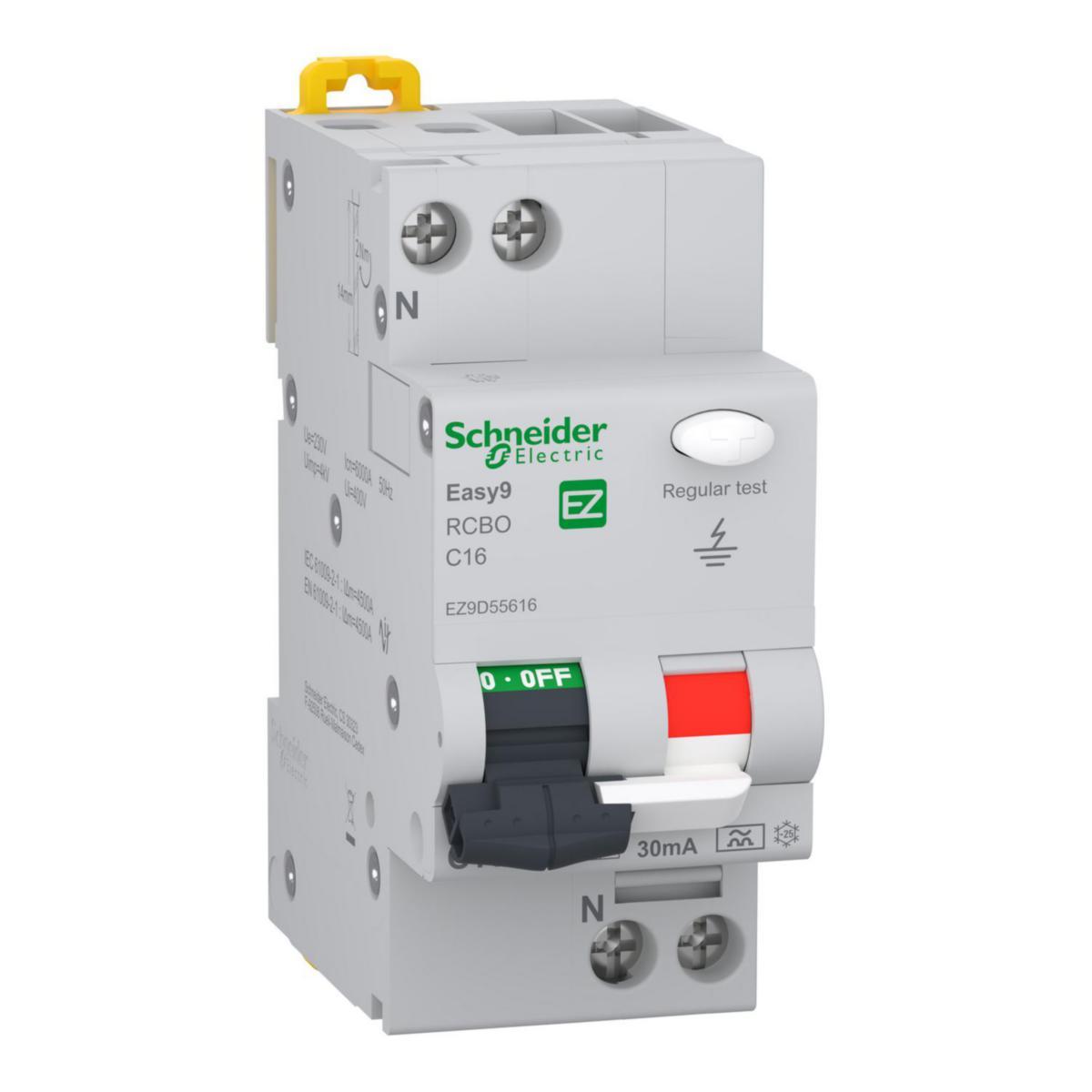

Easy9 1PN C 30mA A RCBO

The Easy9 series is designed to easily fit different applications and project types. From safety indicators and design features to robust short circuit protection, it offers reliability for your installations and flexibility to match your needs. This Easy9 standard device is a combined residual current device and short circuit / overcurrent protection (RCBO). It is a 1P + N personal protection switch with rated current and C curve. The earth fault protection class is A class with a sensitivity of 30mA and the earth leakage protection time delay is instantaneous. The Icn rated breaking capacity in case of short circuit is up to 6000A according to standard IEC 61009-1. This product protects against short circuit, cable overload, electric shock through indirect contact and fire hazards. This product has a test button on the front panel and it also has a fault trip indication on the front panel through the position of the handle that shows if the device has tripped due to earth fault or overcurrent / short circuit. It has an electrical strength of up to 10,000 cycles and a mechanical strength of up to 20,000 cycles. The Ui rated voltage is 400VAC and the Uimp rated strength is 4kV. It has protection class IP20 (according to IEC/EN 60529 standard) and IP40 mounted in a standard enclosure.
