Schneider Electric

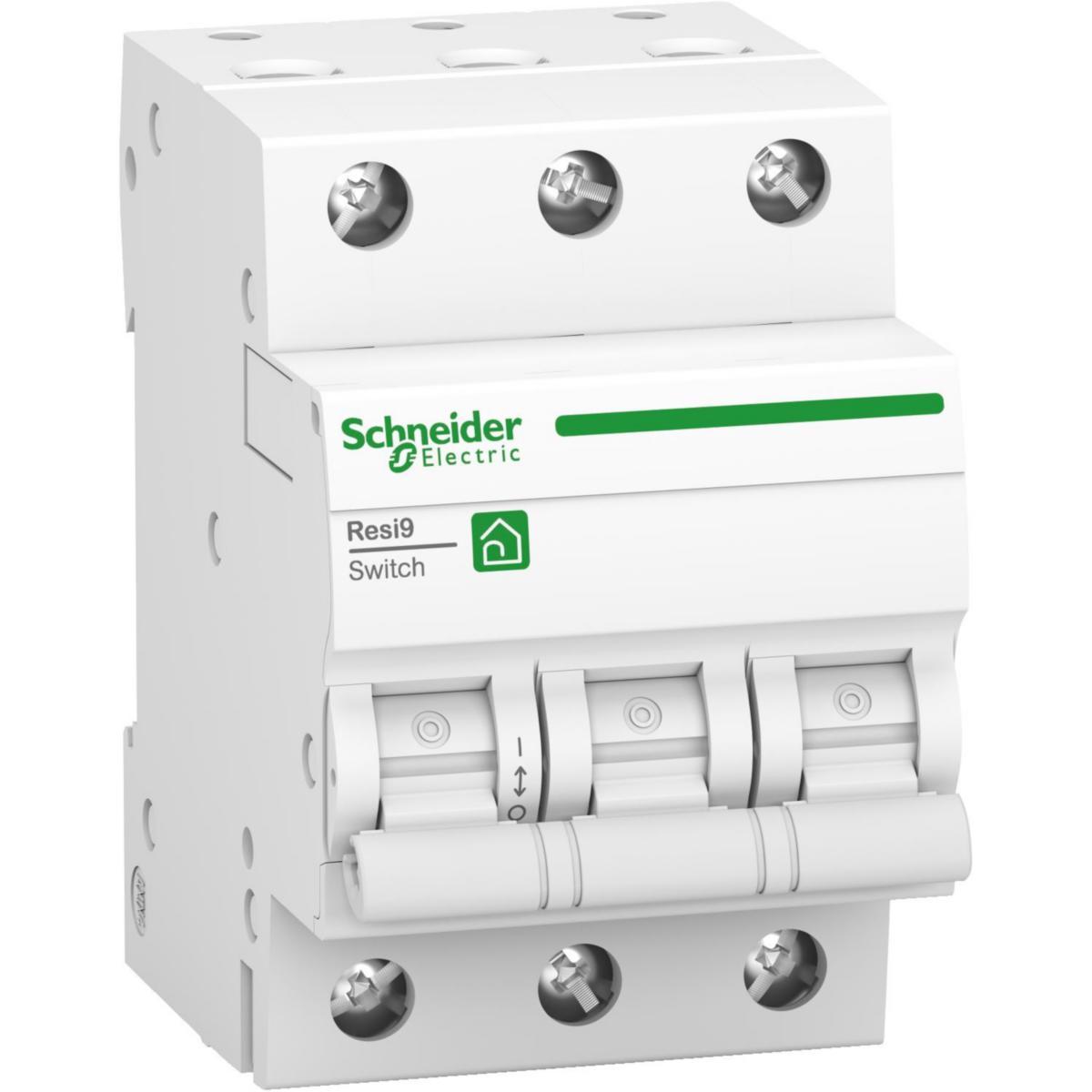

Main switch with rocker Resi9
MAINSWITCH 3P 40A WITH TOGGLE R9S64340
Article number: Suppl. article no:
2112668
R9S64340
to see price and stock
Main switch equipped with flip-flop in 3-pole design with rated current 40A.
- Article number: 2112668
- Suppl. article no: R9S64340
- Ean no: 3606480517907
- Material class QL5500
Technical data
- Packagin Size: 1 ST/4 ST/48 ST
- Number of poles: 3
- Width in number of modular spacings: 3
- Rated permanent current Iu: 40 A
- Version as main switch: No
- Version as safety switch: No
- With pre-assembled cabling: No
- Type of control element: Wing knob
- Version as maintenance-/service switch: Yes
- Device construction: Complete device in housing
- Type of electrical connection of main circuit: Screw connection
- Interlockable: No
- Suitable for front mounting 4-hole: No
- Suitable for front mounting centre: No
- Suitable for distribution board installation: Yes
- Suitable for intermediate mounting: No
- Max. rated operation voltage Ue AC: 400 V
- Motor drive optional: No
- Degree of protection (IP), front side: IP40
- Voltage release optional: No
- Number of auxiliary contacts as normally open contact: 3
- Number of auxiliary contacts as change-over contact: 0
- Number of auxiliary contacts as normally closed contact: 0
- Version as emergency stop installation: No
- Motor drive integrated: No
- Colour control element: White
- Rated short-time withstand current lcw: 0.8 kA
- Rated operating voltage: 400 V
- Version as reversing switch: No
- Number of switches: 3
- Width: 54 mm
- Depth: 44 mm
- Height: 76 mm
- Suitable for floor mounting: No
- Housing colour: White
- Housing material: Plastic
- Product series: Resi9
