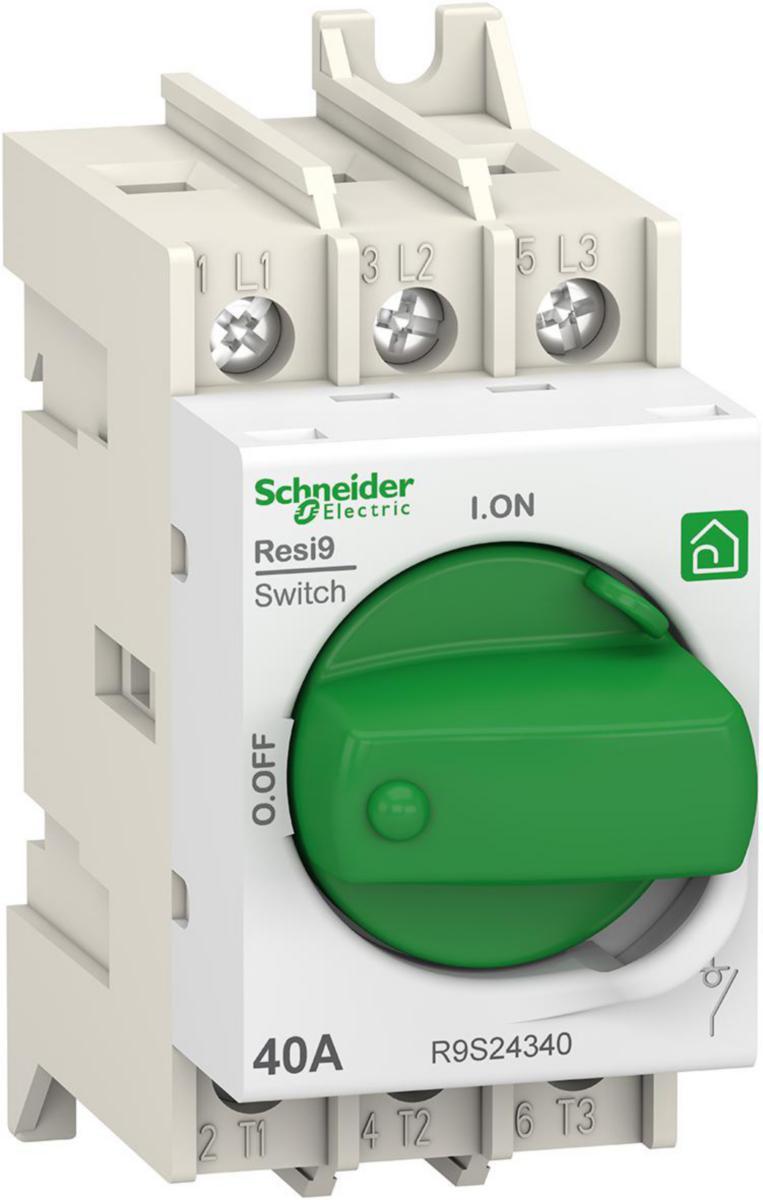

Main switch Resi9

MAINSWITCH 3P 40A R9S24340

Article number:

2112663

Suppl. article no:

R9S24340

‌
‌
‌

‌
‌

to see price and stock

Main switch in 3 pole design with knob. Used as incoming main switch in standard control panels

Technical data

Packagin Size: 1 ST/39 ST
Number of poles: 3
Width in number of modular spacings: 2
Rated permanent current Iu: 40 A
Version as main switch: No
Version as safety switch: No
With pre-assembled cabling: No
Type of control element: Turn button
Version as maintenance-/service switch: Yes
Device construction: Complete device in housing
Type of electrical connection of main circuit: Screw connection
Interlockable: No
Suitable for front mounting 4-hole: No
Suitable for front mounting centre: No
Suitable for distribution board installation: Yes
Suitable for intermediate mounting: No
Max. rated operation voltage Ue AC: 415 V
Motor drive optional: No
Degree of protection (IP), front side: IP40
Voltage release optional: No
Number of auxiliary contacts as normally open contact: 3
Number of auxiliary contacts as change-over contact: 0
Number of auxiliary contacts as normally closed contact: 0
Version as emergency stop installation: No
Motor drive integrated: No
Colour control element: Green
Rated short-time withstand current lcw: 1.26 kA
Rated operating voltage: 415 V
Version as reversing switch: No
Number of switches: 3
Width: 36 mm
Depth: 40 mm
Height: 74 mm
Suitable for floor mounting: No
Housing colour: White
Housing material: Plastic
REACH Date: 2025-07-18
REACH contains candidate substances: 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)
Product series: Resi9
REACH Information obligation: Yes
