Schneider Electric

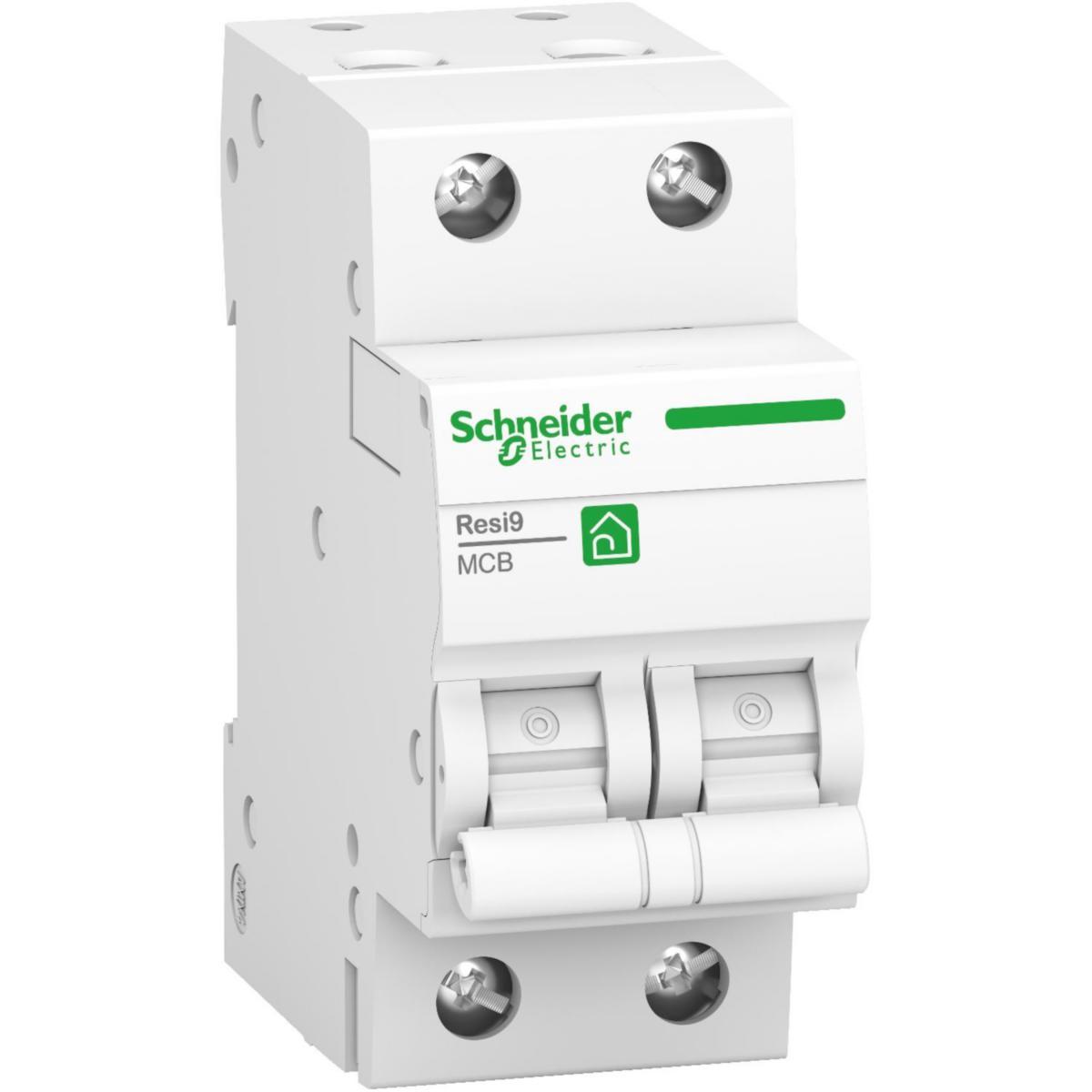

Miniature circuit breaker, 3-pole Resi9
MCB RESI9 2P 6KA 10A C CURVE R9F24210
Article number: Suppl. article no:
2113781
R9F24210
to see price and stock
Miniature switch Resi9 C-curve allows short-term higher current surges. For residential installations and small commercial buildings. C-curve: allows short-term higher current surges. For protection of lighting and heating circuits and smaller motors. 2P miniature circuit breakers are used, for example, where 2 phases are extended to a box to feed a double wall socket with separate wells. For example for washing machine and dryer. Rated voltage: 400V AC Breaking capacity according to EN 60898: 6 kA.
- Article number: 2113781
- Suppl. article no: R9F24210
- Ean no: 3606481301307
- Material class QL5500
Technical data
- Packagin Size: 1 ST/6 ST
- Product series: Resi9
- Rated current: 10 A
- Number of poles (total): 2
- Width in number of modular spacings: 2
- Release characteristic: C
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 6 kA
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 6 kA
- Rated voltage: 230 V
- Voltage type: AC
- Number of protected poles: 2
- Degree of protection (IP): IP20
- Frequency: 50-60 Hz
- Concurrently switching neutral conductor: Yes
- Current limiting class: 3
- Additional equipment possible: No
- Overvoltage category: 3
- Pollution degree: 2
- Connectable conductor cross section solid-core: 1-25 mm²
- Connectable conductor cross section multi-wired: 1-16 mm²
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 440 V
- Ambient temperature during operating: -25-60 °C
- Explosion-proof: No
- Flush-mounted installation: No
- Power loss: 1.9 W
- Built-in depth: 44 mm
