Schneider Electric

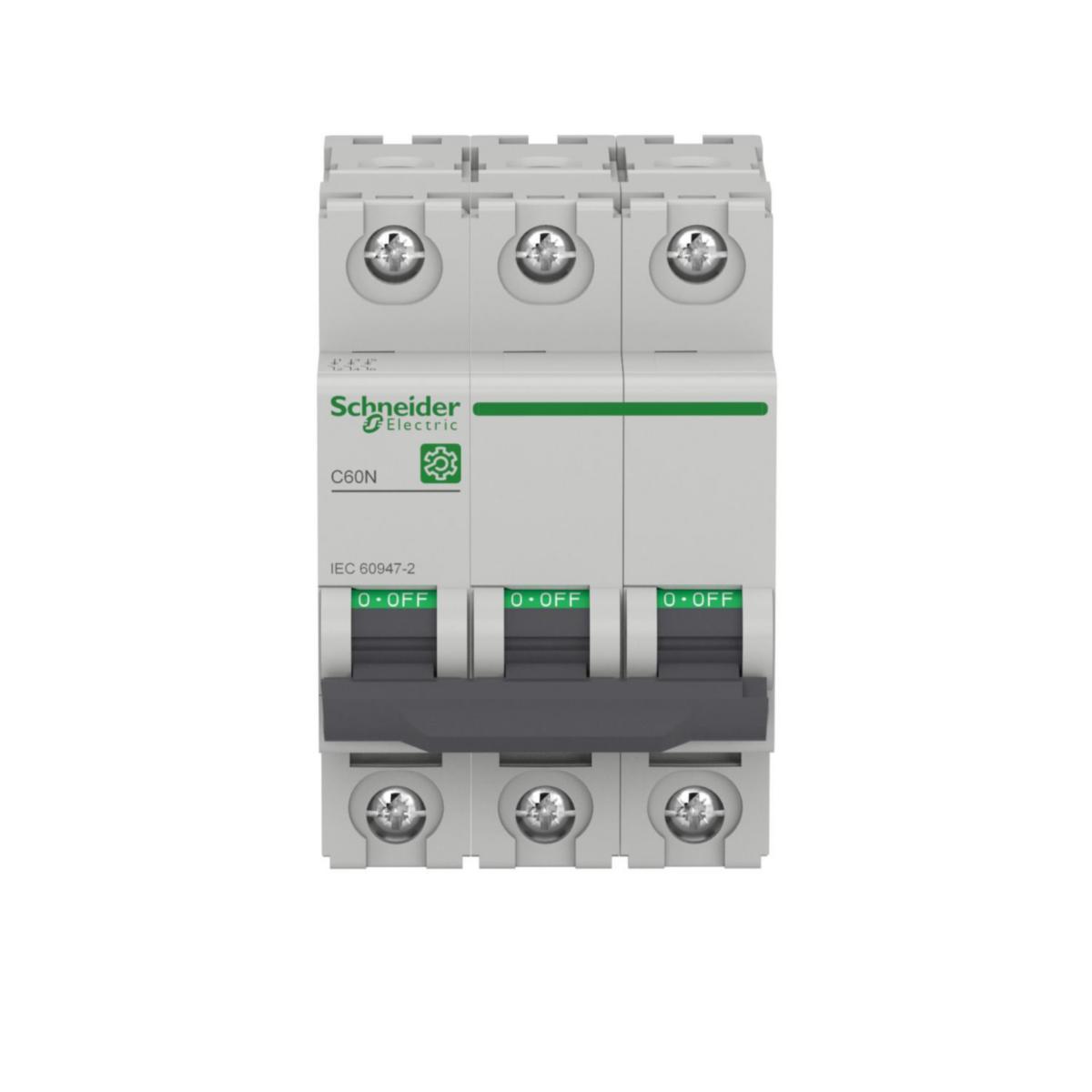

Miniature circuit breaker C60N 3-pole C
MCB M9 C60N 3P 16A C 10KA M9F11316
Article number: Suppl. article no:
2112836
M9F11316
to see price and stock
Miniature circuit breaker Multi9 is a series especially for OEM builders. Lots of accessories such as phase rails, auxiliary contacts, earth fault protection etc. make it a complete series.
- Article number: 2112836
- Suppl. article no: M9F11316
- Ean no: 3606480576386
- Material class QL540A
Technical data
- Packagin Size: 1 ST/4 ST
- Product series: Multi 9
- Rated current: 16 A
- Number of poles (total): 3
- Width in number of modular spacings: 3
- Release characteristic: C
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 20 kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 10 kA
- Rated voltage: 415 V
- Voltage type: AC/DC
- Number of protected poles: 3
- Degree of protection (IP): IP20
- Frequency: 50-60 Hz
- Concurrently switching neutral conductor: No
- Current limiting class: 3
- Additional equipment possible: Yes
- Overvoltage category: 4
- Pollution degree: 3
- Connectable conductor cross section solid-core: 1-25 mm²
- Connectable conductor cross section multi-wired: 1-25 mm²
- Rated impulse withstand voltage Uimp: 6 kV
- Rated insulation voltage Ui: 500 V
- Ambient temperature during operating: -30-70 °C
- Explosion-proof: No
- Flush-mounted installation: No
- Power loss: 2.6 W
- Built-in depth: 44 mm
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 2,2989 kgCO2e/ST
- REACH Information obligation: Yes
