Schneider Electric

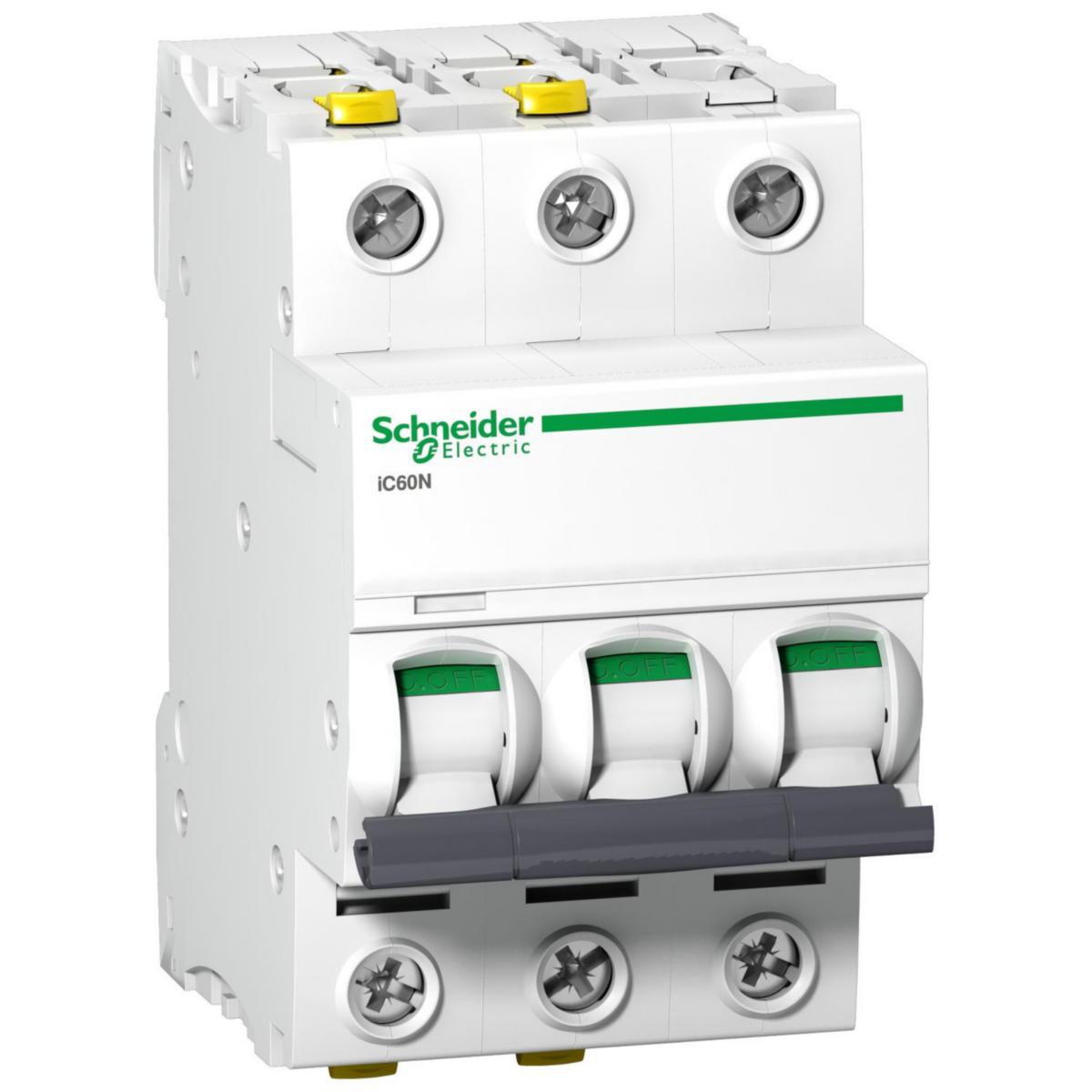

Miniature circuit breaker iC60N 3-pole 6kA C
ACTI9 IC60N 3P 40A C CCURVE A9F04340
Article number: Suppl. article no:
2112077
A9F04340
to see price and stock
Areas of application: for residential installations for commercial and industrial installations. C-curve: allows short higher current surges. For protection of light and heat circuits as well as motors and large groups of bulbs or fluorescent tubes. Circuit-breaking capacity: according toEN 60898: 6 kA.
- Article number: 2112077
- Suppl. article no: A9F04340
- Ean no: 3606480440700
- Material class QL540A
Technical data
- Packagin Size: 1 ST/4 ST/44 ST
- Type: A9F04340
- Product series: Acti 9
- Rated current: 40 A
- Number of poles (total): 3
- Width in number of modular spacings: 3
- Release characteristic: C
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 6 kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 20 kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 10 kA
- Rated voltage: 400 V
- Voltage type: AC/DC
- Number of protected poles: 3
- Degree of protection (IP): IP20
- Frequency: 50-60 Hz
- Concurrently switching neutral conductor: No
- Current limiting class: 3
- Additional equipment possible: Yes
- Overvoltage category: 4
- Pollution degree: 3
- Connectable conductor cross section solid-core: 1-35 mm²
- Connectable conductor cross section multi-wired: 1-25 mm²
- Rated impulse withstand voltage Uimp: 6 kV
- Rated insulation voltage Ui: 500 V
- Ambient temperature during operating: -35-70 °C
- Explosion-proof: No
- Flush-mounted installation: No
- Power loss: 3.6 W
- Built-in depth: 44.5 mm
