TE Connectivity/Raychem

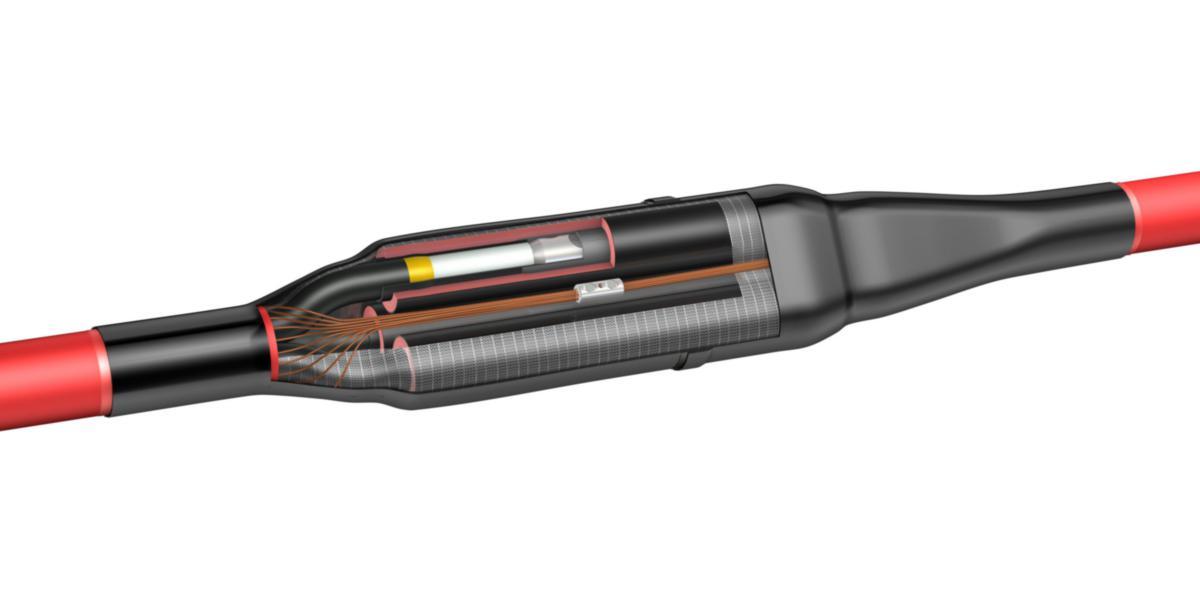

Cable joint 24kV, MXSU 3-wire
JOINT
Article number: Suppl. article no:
0716042
CA8332-000
to see price and stock
Use: For splicing Earth cable, 3-wires 24kV.
PLEASE NOTE! The joint allow jacket testing.
Standard: CENELEC HD 629.1.S1, IEC 61238–1 (joint sleeve).
Design: Inner and outer sleeves are expanded so that they can be applied and then heat-shrunk. The lines are spliced with the supplied screw splicing casings, which include an integrated element in the screws, and which detach when the required torque is achieved. After cable preparation, fold a field-control cloth above the splicing sleeve and the tubes are shrunk in order to achieve field control and full insulation. The shield wires are spliced with supplied screw joint sleeves.
Set contents: The 3-wire set contains equipment for 3 x phases.
PLEASE NOTE! The joint allow jacket testing.
Standard: CENELEC HD 629.1.S1, IEC 61238–1 (joint sleeve).
Design: Inner and outer sleeves are expanded so that they can be applied and then heat-shrunk. The lines are spliced with the supplied screw splicing casings, which include an integrated element in the screws, and which detach when the required torque is achieved. After cable preparation, fold a field-control cloth above the splicing sleeve and the tubes are shrunk in order to achieve field control and full insulation. The shield wires are spliced with supplied screw joint sleeves.
Set contents: The 3-wire set contains equipment for 3 x phases.
- Article number: 0716042
- Suppl. article no: CA8332-000
- Ean no: 4042368060421
- Material class QB5400
Technical data
- Packagin Size: 1 ST/5 ST
- Type: MXSU-5311
- Number of conductors: 3
- Nominal cross section conductor: 25-95 mm²
- Rated voltage U0/U (Um): 12.7/22 (24) kV
- Model: Heat-shrink
- Connection accessories included: Screw connector
- With concentric shielding: No
- Halogen free: No
- For connection of paper- with plastic insulated cables: No
- Suitable for: Other
- Mining sector approval: No
- Insulating material: Plastic
- REACH contains candidate substances: Blymönja (blyoxid eller C.I. 77578 eller C.I. Pigment Red 105)
- REACH Date: 2025-01-21
- REACH Information obligation: Yes
