Electro Trading ET
Cable joint 1-conductor, 12kV
Joint for cable 12 kV.
Article number: Suppl. article no:
0719054
E0719054
to see price and stock

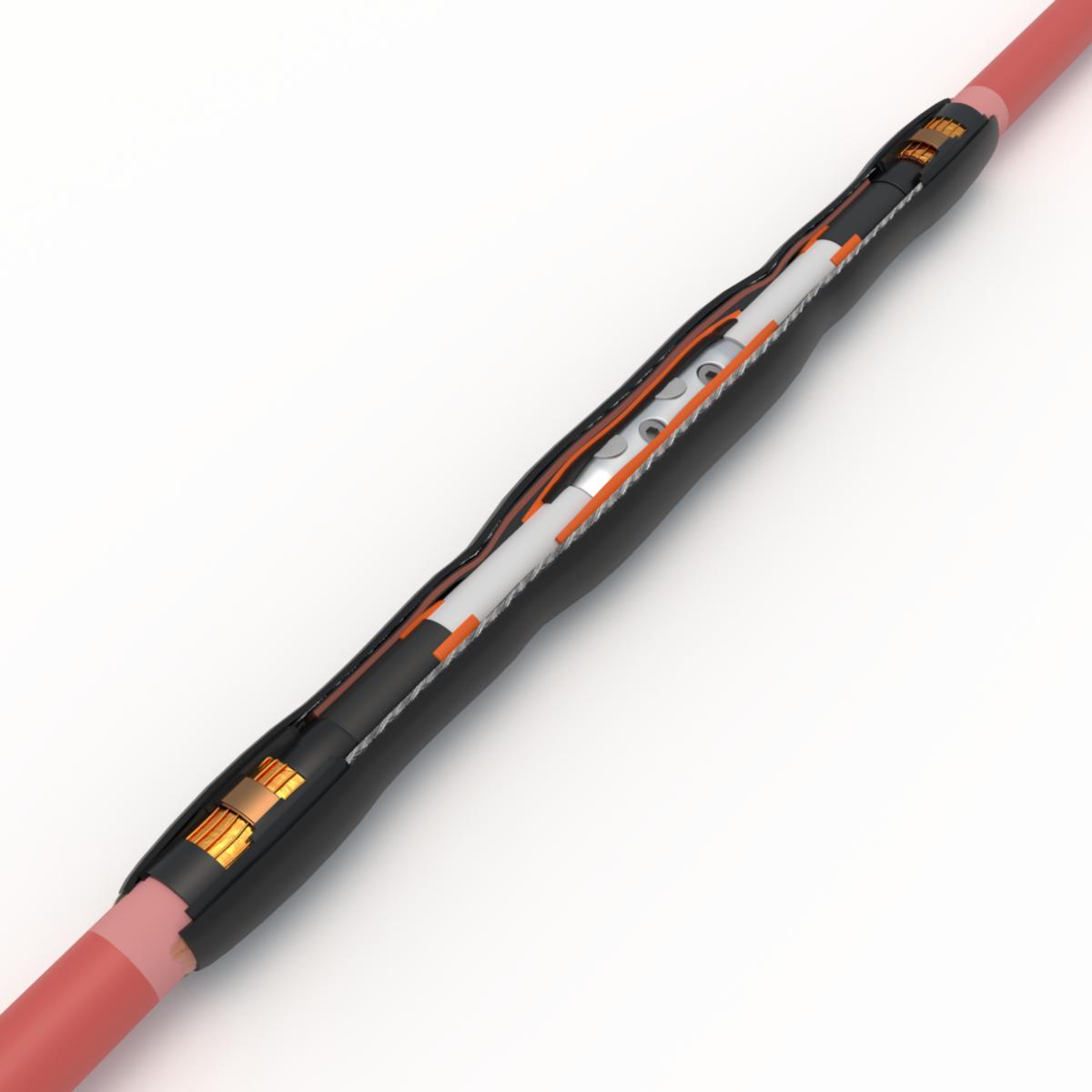

Cable joint intended for PEX and plastic-insulated 1-conductor cables with strippable or fixed outer conductive layer. Supplied in complete kits for 1 phase. Including screw joint sleeve. Cable joint with a heat-shrink sleeve for insulation of the conductor and a heat-shrink sleeve for the outer jacket. With copper sock to connect the screen wires.
- Article number: 0719054
- Suppl. article no: E0719054
- Material class QB6440
Technical data
- Number of conductors: 1
- Nominal cross section conductor: 400-630 mm²
- Rated voltage U0/U (Um): 6/10 (12) kV
- Model: Heat-shrink
- Connection accessories included: Screw connector with shear-off head
- With protective conductor: Yes
- With concentric shielding: Yes
- Halogen free: Yes
- For connection of paper- with plastic insulated cables: No
- Suitable for: Other
- Mining sector approval: No
- Insulating material: Plastic
- REACH Date: 2021-06-16
- REACH Information obligation: No
