TE Connectivity/Raychem

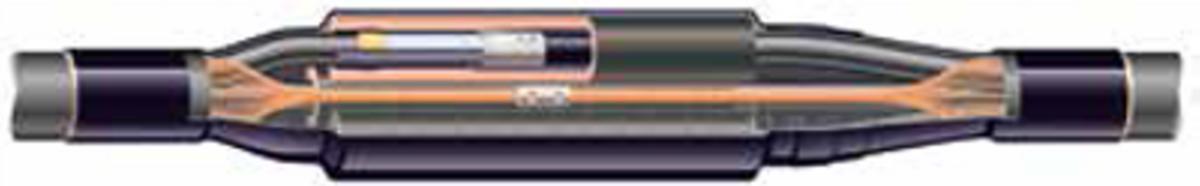

Supplementary kit TRIX MK2
JOINT
Article number: Suppl. article no:
0716610
680527-000
to see price and stock
Supplemental kit for transition from 3-lead to 1-lead cables, 12 and 24kV.
The set consists of two three-finger metal clips with thermoplastic adhesive coating on the middle of the three fingers, plus a tension strap. The clips are applied to the splice’s outer hose between the three cables; the shrinking heat causes the adhesive layers to melt together.
The set consists of two three-finger metal clips with thermoplastic adhesive coating on the middle of the three fingers, plus a tension strap. The clips are applied to the splice’s outer hose between the three cables; the shrinking heat causes the adhesive layers to melt together.
- Article number: 0716610
- Suppl. article no: 680527-000
- Ean no: 4042368949320
- Material class QB540A
Technical data
- Packagin Size: 1 ST/20 ST
- Type: TRIX MK2
- Area: 50-300 mm²
- Weight: 0.3 kg
