TE Connectivity/Raychem

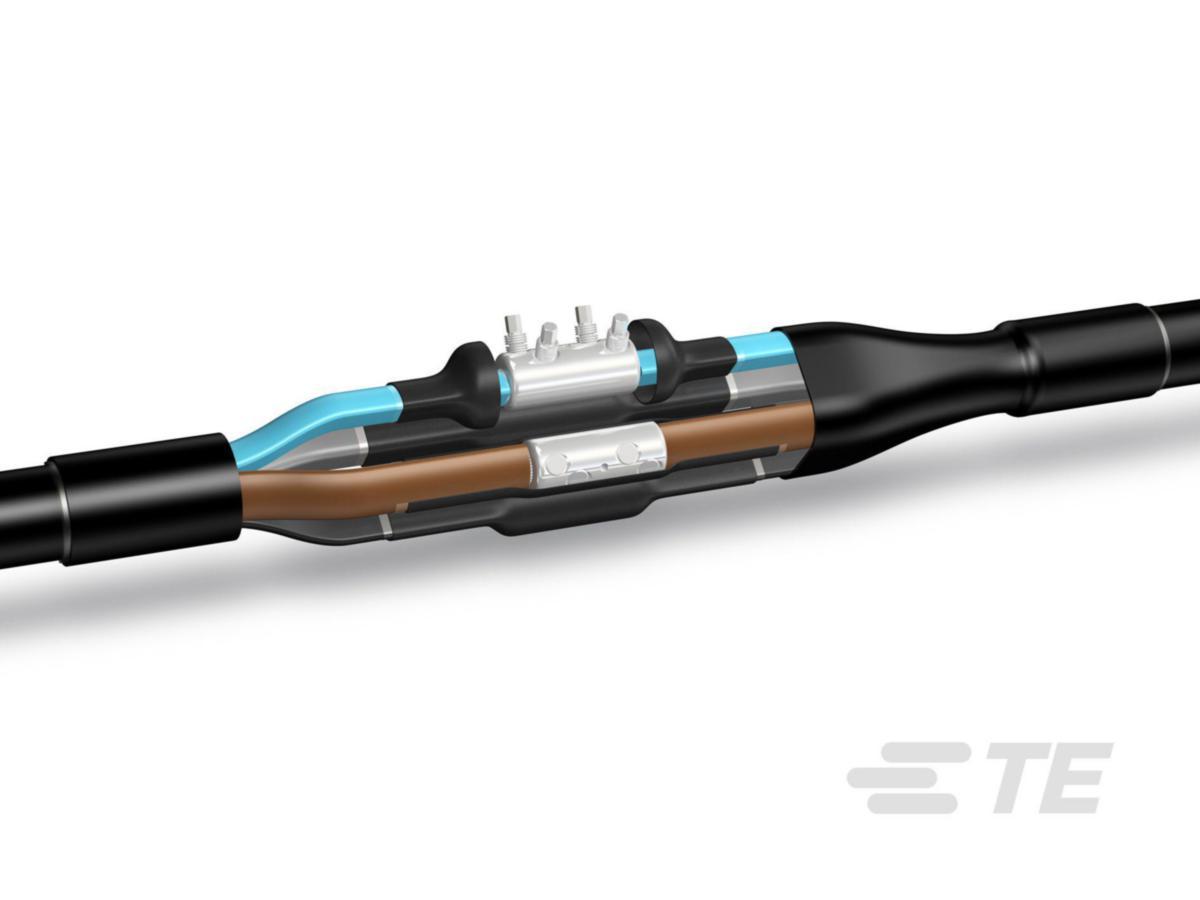

Cable joint 1kV, for plastic-isolated 4-wire al/cu
CABLE JOINT 1KV 1kV 6-25MM2
Article number: Suppl. article no:
0716495
BM2231-000
to see price and stock
For splicing of plastic-insulated earthed cable, 3-and 4-lead, 1 kV.
Phase insulation and outer jacket are made of thick- walled, glue-equipped heat-shrink tubing.
The splice contains screw splice sockets type BSL, which cover a large area with few sises and do not require special tools.
Phase insulation and outer jacket are made of thick- walled, glue-equipped heat-shrink tubing.
The splice contains screw splice sockets type BSL, which cover a large area with few sises and do not require special tools.
- Article number: 0716495
- Suppl. article no: BM2231-000
- Ean no: 4042368054567
- Material class QB520A
Technical data
- Packagin Size: 1 ST/20 ST
- Type: LJSM-B-4X006-025-SE01
- Number of conductors: 4
- Nominal cross section conductor: 6-25 mm²
- Rated voltage U0/U (Um): 0.6/1 (1.2) kV
- Model: Heat-shrink
- Connection accessories included: Screw connector with shear-off head
- With concentric shielding: No
- Halogen free: Yes
- For connection of paper- with plastic insulated cables: No
- Suitable for: N(A)YY
- Mining sector approval: No
- Insulating material: Plastic
- REACH Date: 2023-01-17
- REACH Information obligation: No
