TE Connectivity/Raychem

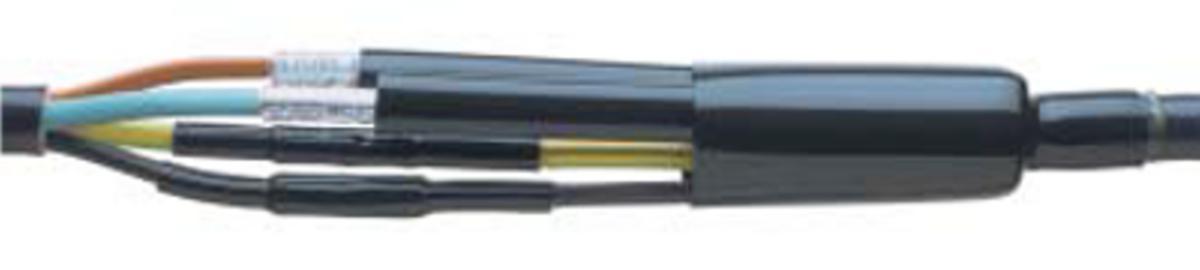

Cable joint EPKJ, 1kV for press sleeves
JOINT
Article number: Suppl. article no:
0716020
527799000
to see price and stock
Use: For splicing of plastic-insulated earthed cable, 3-and 4-lead, 1 kV.
Features: Phase insulation and outer jacket are of thick- walled, glue-equipped heat-shrink tubing.
Features: Phase insulation and outer jacket are of thick- walled, glue-equipped heat-shrink tubing.
- Article number: 0716020
- Suppl. article no: 527799000
- Ean no: 4042368619988
- Material class QB5201
Technical data
- Packagin Size: 1 ST/10 ST/700 ST
- Type: EPKJ-0228
- Number of conductors: 4
- Nominal cross section conductor: 2.5-6 mm²
- Rated voltage U0/U (Um): 0.6/1 (1.2) kV
- Model: Heat-shrink
- Connection accessories included: Press-/crimp connector
- With concentric shielding: No
- Halogen free: Yes
- For connection of paper- with plastic insulated cables: Yes
- Suitable for: Other
- Mining sector approval: No
- Insulating material: Plastic
- REACH Date: 2025-06-25
- REACH Information obligation: No
