Elproman

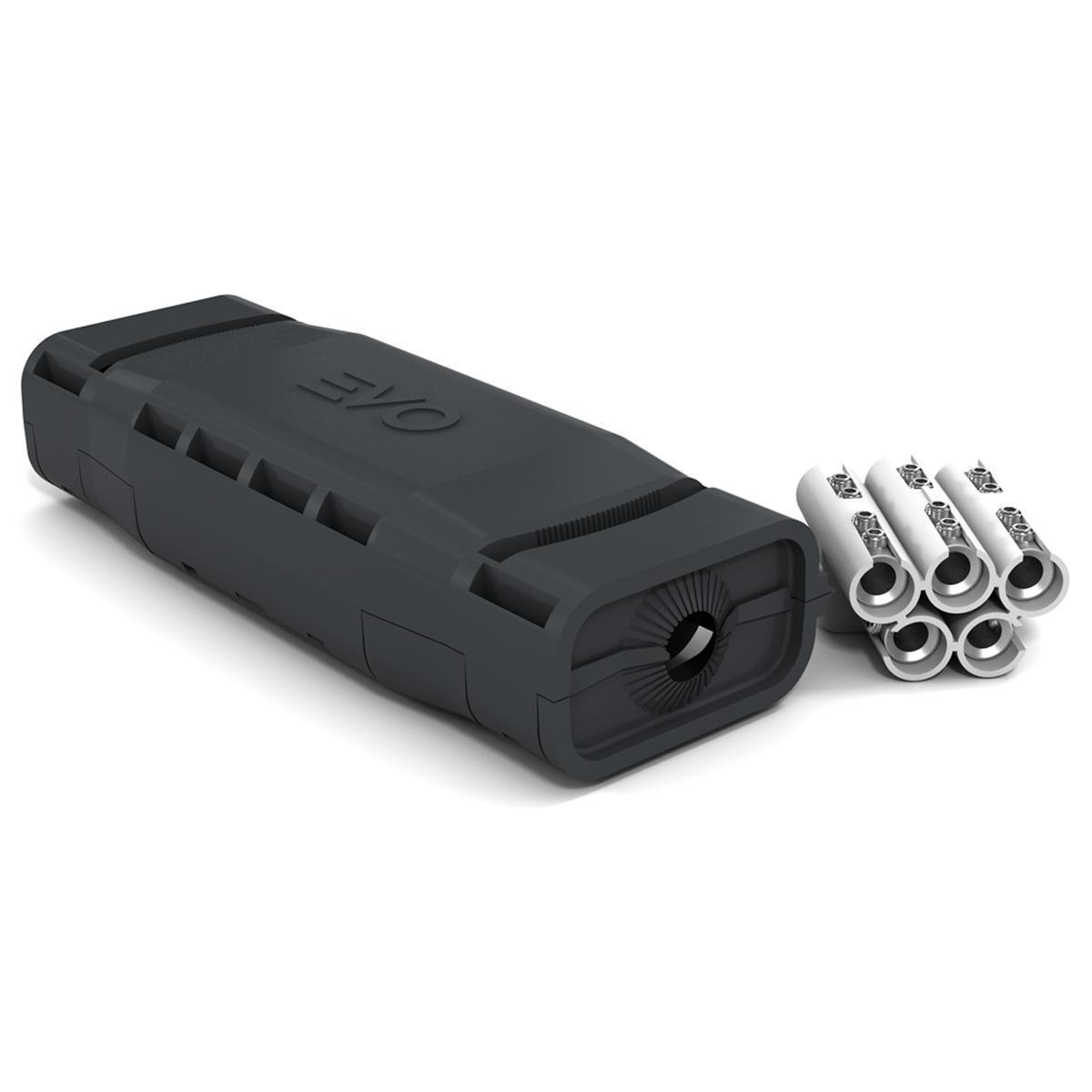

Cable joint Gel EVO
STRAIGHT JOINT EVO 05
Article number: Suppl. article no:
0703474
0703474
to see price and stock
Gel-filled cable joints IP68 complete with terminal block, for permanent submersion in water (max. 10 m), burial or temporary installations. Enclosure with snap lock, openable. Made of halogen-free, self-extinguishing, impact-resistant UV-resistant polypropylene. Unlimited storage time and a service life of at least 30 years.
Non-toxic silicone gel that meets the requirements of CE 67/548/EEC and CE 1999/45/EC.
Non-toxic silicone gel that meets the requirements of CE 67/548/EEC and CE 1999/45/EC.
- Article number: 0703474
- Suppl. article no: 0703474
- Material class QB6290
Technical data
- Type: VO 05/EV105
- Design: With screw terminal
- Number of conductors: 5
- Nominal cross section conductor: 4-16 mm²
- Rated voltage U0/U (Um): 0.6/1 (1.2) kV
- Model: Gel
- Connection accessories included: Screw connector
- Insulating material: Plastic
- REACH Date: 2024-10-15
- REACH Information obligation: No
