Kabeldon

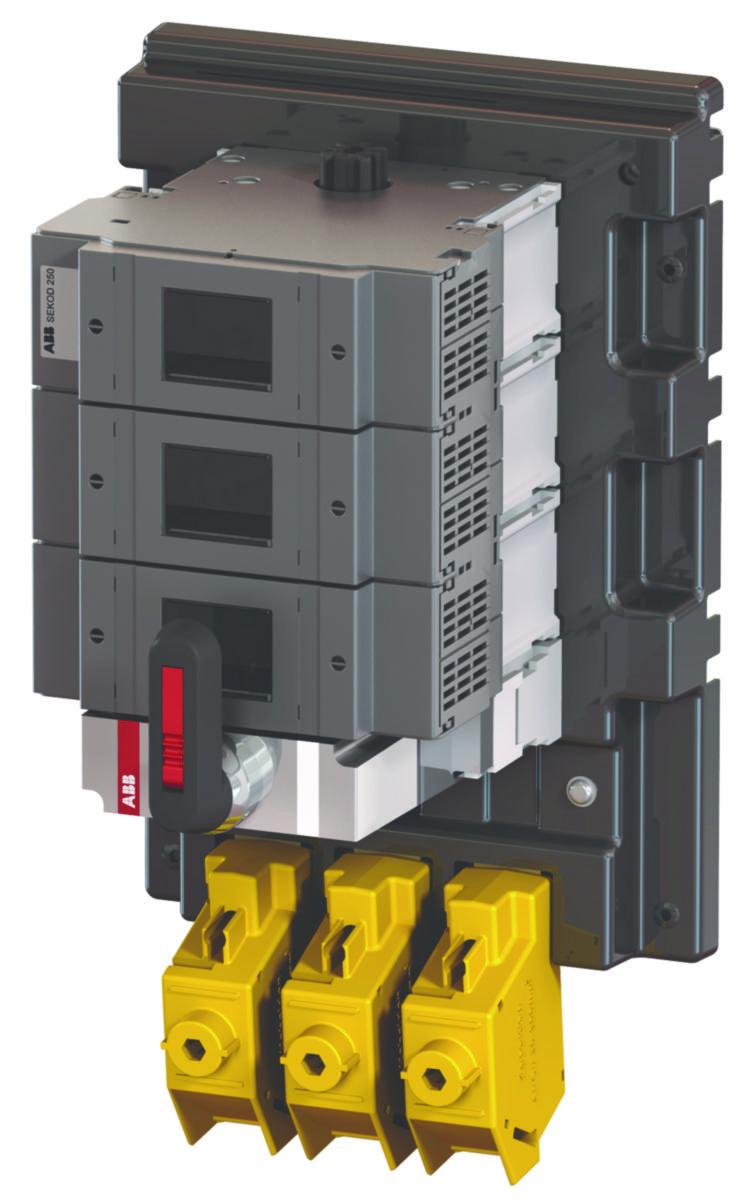

Electric switch SEKOD 224
SWITCH-FUSE SEKOD 224
Article number: Suppl. article no:
0732791
6305.0234.1
to see price and stock
With a break on both sides of the fuse.
Fits the KSIK and SDC enclosures.
Fits the KSIK and SDC enclosures.
- Article number: 0732791
- Suppl. article no: 6305.0234.1
- Ean no: 7331980048045
- Material class QB6900
Technical data
- Max. rated operation voltage Ue AC: 690 V
- Number of poles: 3
- Conditioned rated short-circuit current Iq: 32 kA
- Type of control element: Long rotary handle
- Degree of protection (IP), front side: IP2X
- Position control element: Front side
- Version as safety switch: Yes
- Suitable for fuses: NH1
- Suitable for busbar mounting: Yes
- Motor drive optional: No
- Type of electrical connection of main circuit: Screw connection
- Motor drive integrated: No
- With error protection: No
- Rated short-time withstand current lcw: 8 kA
- Version as main switch: Yes
- Version as emergency stop installation: No
- Equipped with connectors: Yes
- Rated current: 224 A
- REACH Date: 2025-10-23
- Type: SEKOD 224
- REACH Information obligation: No
- Fuse size: 0 and 1
