Kabeldon

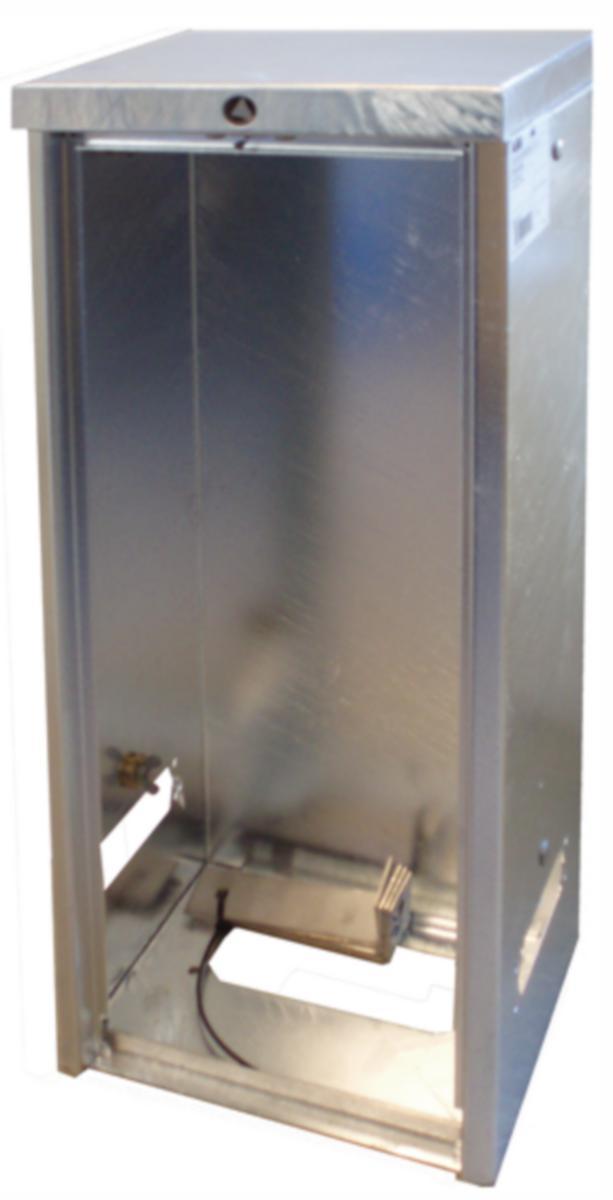

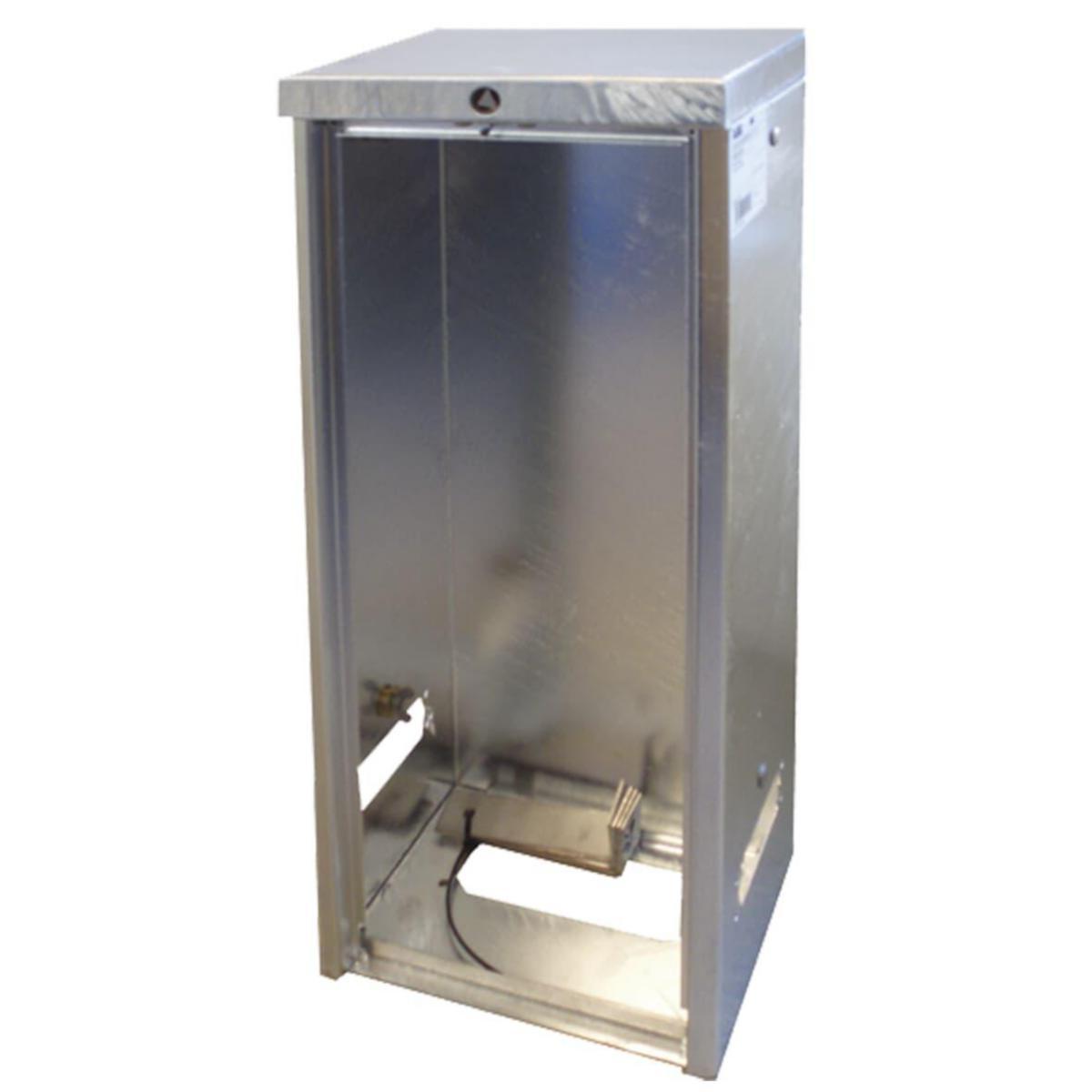

Accessory cabinet CDVA-BV
ACCESSORY CABLE CABINET
Article number: Suppl. article no:
0732146
6330.0576.0
to see price and stock
Accessory cabinet developed for the Swedish Rail Administration. For installation on other enclosure. Empty cabinet with attachment for KSM 017 or KSM 417 insert. The gables are equipped with FL 13 flange opening and FL 21 at the bottom.
Locks with triangle lock. Four attachment angles for installation on the Swedish Rail Administration’s mounting brackets are included.
Locks with triangle lock. Four attachment angles for installation on the Swedish Rail Administration’s mounting brackets are included.
- Article number: 0732146
- Suppl. article no: 6330.0576.0
- Ean no: 7331980009145
- Material class QB6900
Technical data
- Packagin Size: 1 ST/16 ST
- Type: CDCA-BV
- Number of doors: 1
- Number of locks: 1
- Width: 280 mm
- Depth: 218 mm
- Height: 730 mm
- Material: Steel
- Surface finishing: Galvanised
- With rear door: No
- With glazed door: No
- With mounting plate: No
- With ventilation door: No
- Degree of protection (IP): IP34
- Pole fastening: No
- Pitched roof: No
- Weight: 13 kg
- Height: 730 mm
- Width: 280 mm
- REACH Date: 2025-10-23
- Deep: 218 mm
- REACH Information obligation: No
- Suitable for outdoor installation: Yes
